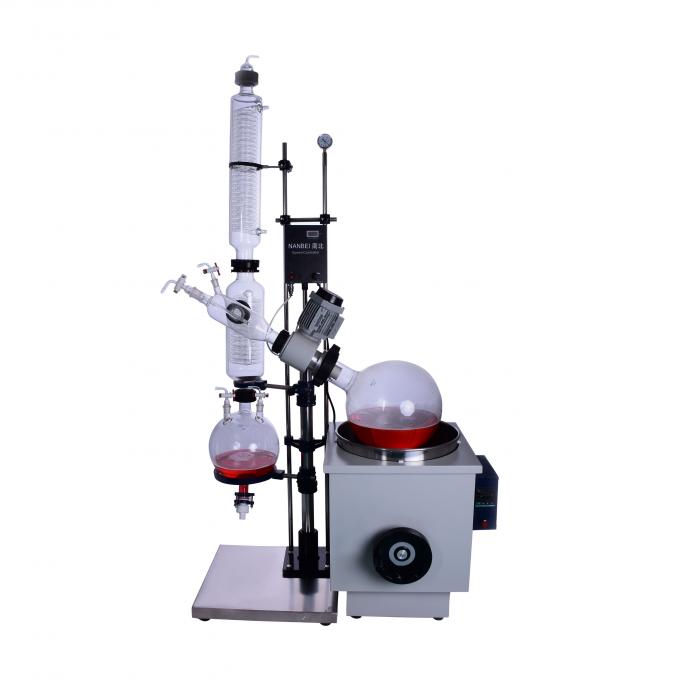

Lab Rotary Evaporator - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	NBRE-5003

Minimum Order Quantity:	1set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:	500 set/per day

Detail Information

Name:	Lab Rotary Evaporator	Glass Meterial:	GG-17
Holder Material:	Aluminium Alloy	Evaporator Flask:	1L 24#
Vacuum Degree:	0.098Mpa	Rotary Speed:	0-120rpm
High Light:	chiller rotary evaporator , rotary vacuum evaporator

Product Description

Chemical Stainless Steel Glass Evaporator 0-120 Rpm Rotary Speed

Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration .

Features of Rotary Evaporator

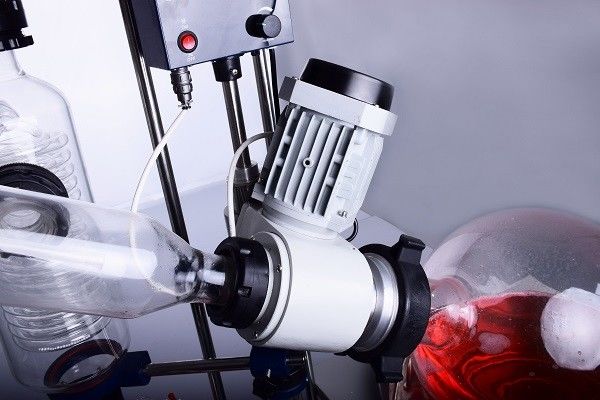

Motor has the function of 10-120 RPM stepless speed regulation and automatic lifting , revolving consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-120 RPM range, it has reached the advanced level at home and abroad.

1 Quick and easy lifting mechanism

2 Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.

3 Vertical condensation system of high rate of evaporation

4 Vacuum sealing way

5 Automatic control temperature digital display

Chemical Stainless Steel Glass Rotary Evaporator 0

Model	NBRE-52A		NBRE-52C	NBRE-5299
Glass meterial	GG-17
Holder material	Aluminium alloy
Pot shell Material	Aluminium alloy 250365150mm		Aluminium alloy 250365150mm	Aluminium alloy 26531080mm
Pot bravery	Stainless steel 240*120mm		Stainless steel 250*130mm	Stainless steel 250*140mm
Evaporator flask	1L 24#
Collect flask	0.5L 24#
Vacuum degree	0.098Mpa
Rotary speed	0-120rpm
Rotary power	30W
Heating power	1KW
Heating temp.	0-99C
Temp. accuracy	-1
Lifting power	---		15W
Lifting stroke	120mm
Voltage	220/110V 50/60HZ
Dimension	7004401005mm
Packing size	590460460mm
Packing weight	21kg
Configuration list
Speed mode		Electronic stepless
Temp. display		Digital
Temp. control		Intelligent temp. control
Sealing method		PTFE
Condenser		Vertical 85*460mm 29#
Lifting mode		Manual lifting	Electric automatic lifting	Electric automatic lifting
Continuous feed		Standard mouth feed valve	19# Standard mouth feed valve	19# Standard mouth feed valve
Option
Splash device		Transparent cover for heating bath
Bath temp.range		0-400Ｃ
