|Glass Meterial:||GG-17||Holder Material:||Aluminium Alloy|
|Pot Shell Material:||Aluminium Alloy||Collect Flask:||2L 35#|
|Rotary Speed:||0-180RPM||Rotary Power:||40W|
large rotary evaporator,
rotary vacuum evaporator
NBRE-3000B Lab Rotary Evaporator 40W Power 0-180 RPM Rotary Speed
Features of Lab Rotary Evaporator
Rotators consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-180 RPM range, it has reached the advanced level at home and abroad.
1,the move up and down lift system adopts motor revolved lifting structure.
2,the condenser adopted two kinds of optional structure , one is double line convection principle, the other one is a single line with interlayer water, ice, and dry ice container. Used in organic solvent evaporation. And the vertical condenser saves space.
3, the axis of rotation use high temperature high borosilicate glass, heat resistant and good sealing. Sealing parts use teflon + teflon two-way sealing, and the effect is good.

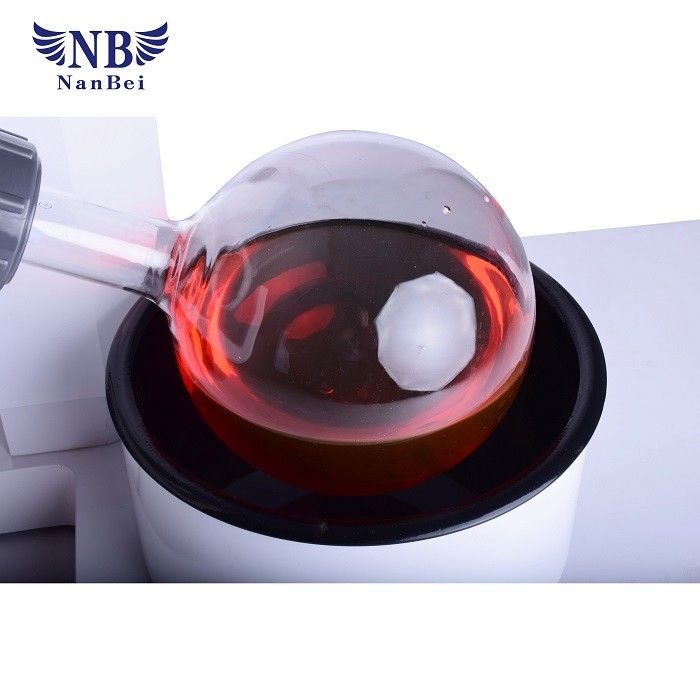

4, it is equipped with heating trough, and built-in resistance wire heater, heating temperature is from room temperature to 99 ℃.
5, the device is equipped with temperature indicator, intelligent temperature controlling, digital display, temperature control implemented by PT100 sensors. When the water temperature reaches primary temperature, the controller automatically cut off the heater power; When is lower than the water, temperature controller automatically turn on the heater power; To realize the tank water temperature be constant.
6, B type, E type is equipped with speed display, can accurately display rotation speed, E type is LCD screens.
|Holder material||aluminium alloy|
|Pot shell Material||aluminium alloy|
|Collect flask||2L 35#|
|Rotary power||40W||40W Brushless motor|
|Temp. control||Intelligent temp. control|
|Lifting mode||Electric automatic lifting|
|Continuous feed||19# Standard mouth feed valve|
|Splash device||Transparent cover for heating bath|
