|Optimum Ambient Temperature (℃):||5～25||Power (V/Hz):||Single-phase 220V/60HZ|
|Rotate Speed Of Main Engine(rpm):||20-130||Rotary Motor:||60|
|Maximum Vacuum Degree(Pa):||399.9Pa(under 3mmHg)||Water Bath Pot Material:||Stainless Steel|
large rotary evaporator,
chiller rotary evaporator

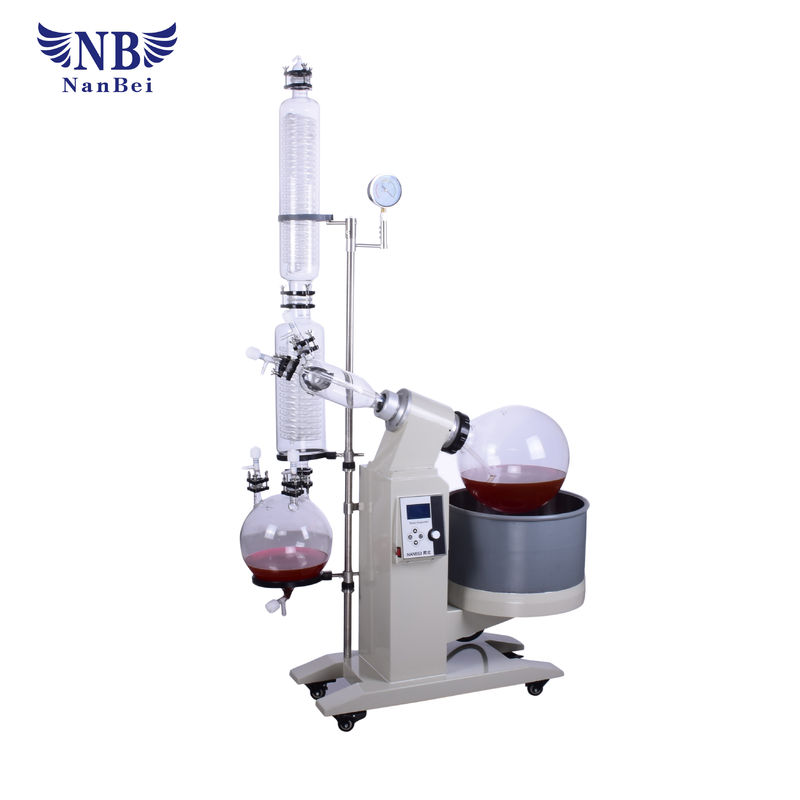

20L NR Series Large Rotary Evaporator 399.9Pa Maximum Vacuum Degree
20L Rotary Evaporato
Purposes and features of Large Rotary Evaporator

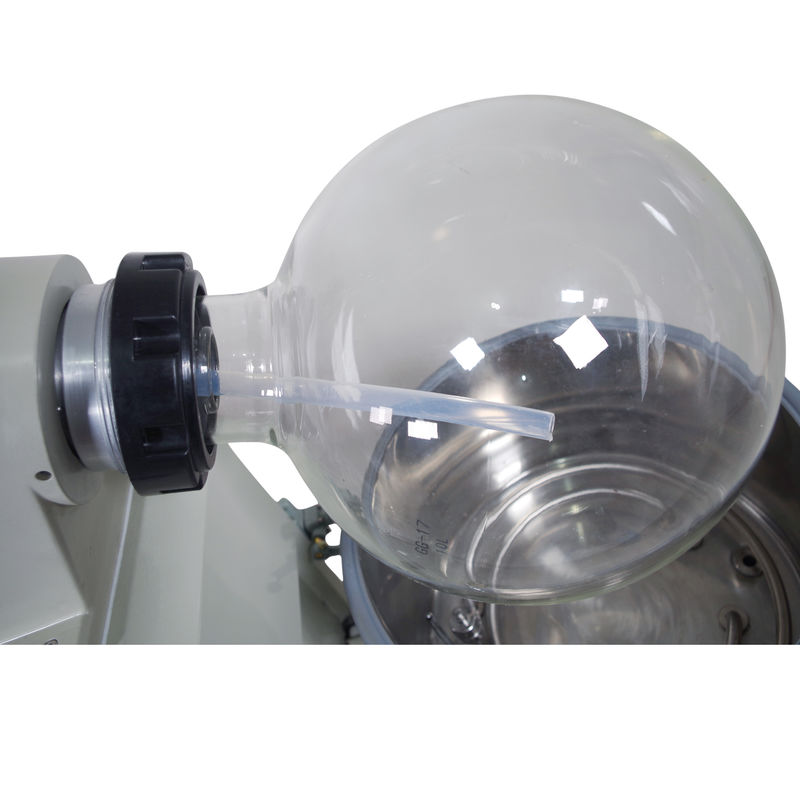

NR-series large rotary evaporator is mainly used in the small-scale test, pilot-scale test and production in biological, pharmaceutical, chemical, food and other fields. As with large capacity and large-diameter rotary evaporating flask, when it is placed in a water bath, along with the simultaneous performing of rotating and heating, it allows the solution spreading and evaporating rapidly. What’s more, the product may be fitted with the multi-purpose water circulating vacuum pump, diaphragm vacuum pump, low-temperature circulating (vacuum) pump, circulating cooler, constant-temperature circulator, low-temperature cooling liquid circulating pump and so on to form a system device.
1. Teflon(PTFE) and fluororubber dual spin seal, patented technology to ensure the high vacuum.
2. Accurate and reliable temperature control system,.
3. On the premise of not affecting the vacuum and solution distillation, continuous receiving allowable.
4. PTFE emptying valve, corrosion-resistant without any pollution.
5. Including two types: regular type and explosion-proof type, which can be adopted based on the experimental environment.
Technical data of Large Rotary Evaporator
|Optimum ambient temperature (℃)||5～25|
|Power (V/Hz)||Single-phase 110/60||Single-phase 220V/60HZ|
|Speed regulation of main engine||Digital variable-frequency stepless speed regulation||Digital direct current stepless speed regulation|
|Rotate speed of main engine(rpm)||10-140||20-130||20-110|
|Temperature control (℃)||Digital temperature control, constant temperature -99℃|

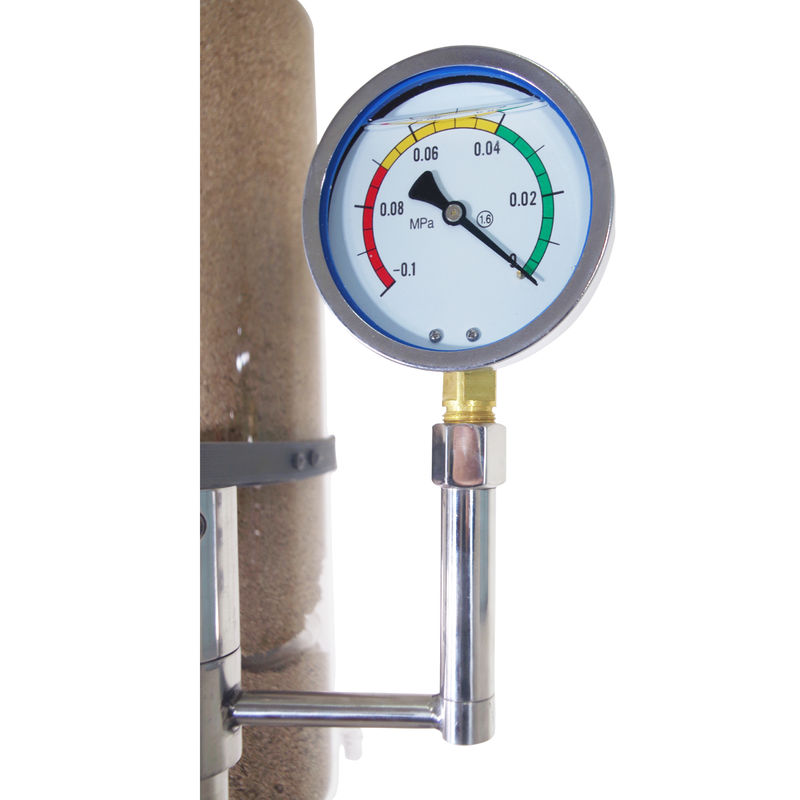

|Maximum vacuum degree(Pa)||399.9Pa(under 3mmHg)|
Flange mouth Ø50
Flange mouth Ø95
Flange mouth Ø125
Flange mouth Ø125
|Condenser pipe||Vertical dual coil pipe||Upright, main condenser + auxiliary condenser, efficient tri-backflow condenser pipe|
|Evaporative capacity (L/h)||
|Water bath pot material||Stainless steel|
|Water bath pot size (mm)||Φ280×170||Φ350×220||Φ450×250||Φ550×320|
|Lifting function||Electric lifting||Electric + manual lifting|
|Complete machine power(kW)||2.2||4.8||6.3||8.3|
