Medical Laboratory Microscope - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	B203

Minimum Order Quantity:	1set
Price:	USD554-USD 985/set
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…

Detail Information

Name Specifications:	B203	Eyepiece:	16 × Flat Field Eyepiece
Objective Lens:	Achromatic Objective: 4 ×, 10 ×, 40 × × (S), 100 × × (S, Oil)	Observation Tube:	Monocular Group
Converter:	Internal Positioning Of Four-hole Converter	Focusing System:	Coarse Coaxial Focus, Coarse Adjustment With Elastic Adjustment, And Focus On The Upper Limit Device
Stage:	Mechanical Moving Stage, The Film With A Resistance Device, The Scale Scale 0.1mm	Mirror Group:	Flat, Concave Double-sided Mirror
High Light:	medical lab microscope , polarizing microscope

Product Description

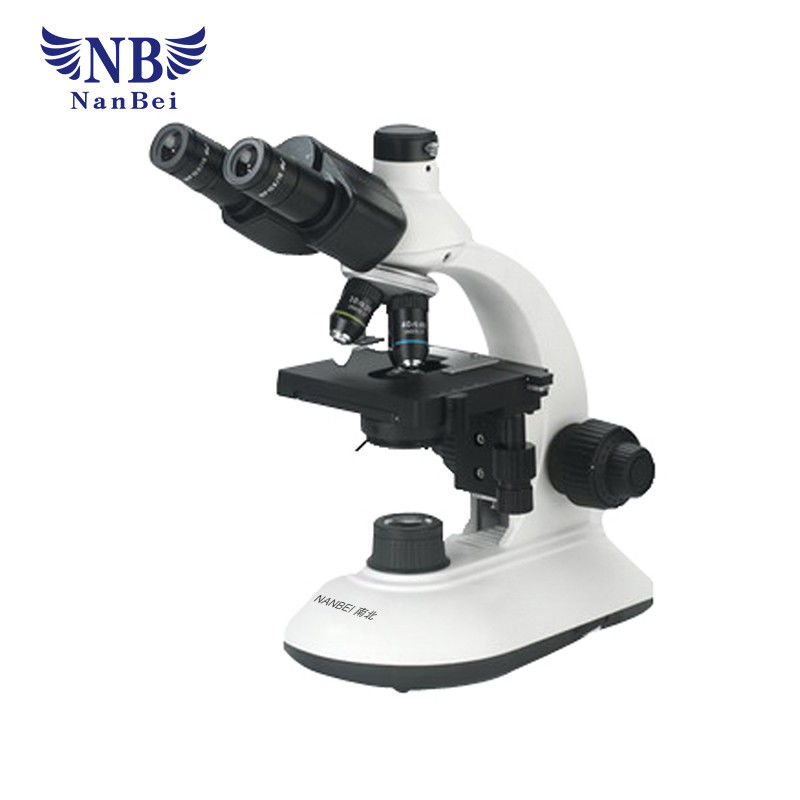

Medical Laboratory Microscope For Blood Analysis College Educational Darkfield Live

Brief introduction of double glass reactor:

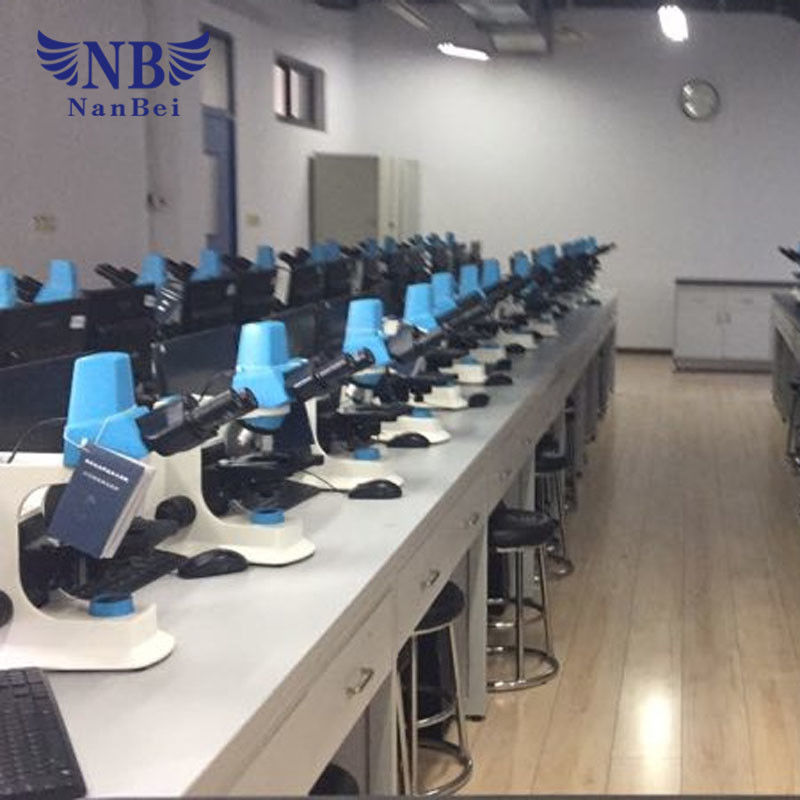

Applicable to tertiary institutions, primary and secondary school teaching, clinic laboratory

Features of NANBEI chemical reactor:

1 traditional classic models, durable

2 anti-mildew, anti-fog optical system

3 high brightness, long life, low power LED cold light source lighting

4 High brightness, aspheric lighting system

Medical Laboratory Microscope For Blood Analysis College Educational Darkfield Live 0

Name	Specifications	B203

Host		●
eyepiece	10 × large field of view, high eye point flat field eyepiece	●
eyepiece	16 × flat field eyepiece	○
Objective lens	Achromatic objective: 4 ×, 10 ×, 40 × × (S), 100 × × (S, Oil)	●
Objective lens	Flat field achromatic objective: 4 ×, 10 ×, 40 × × (S), 100 × × (S, Oil)
Observation tube	Monocular group
	Eyepiece group, 30 ° tilt, 360 ° rotation	●
	Three eyepiece group, 30 ° tilt, 360 ° rotation	○
converter	Internal positioning of four-hole converter	●
Focusing system	Coarse coaxial focus, coarse adjustment with elastic adjustment, and focus on the upper limit device	●
Stage	Mechanical moving stage, the film with a resistance device, the scale scale 0.1mm	●
Condenser	Can be lifted Abbe condenser, N.A.1.25, with variable light bar	●
Lighting system	3W-LED aspheric cold light source	●
Lighting system	6V / 20W halogen lamp	○
Dark field	Applicable to dry dark field observation	○
Polarizer	Polarizer, analyzer	○
Mirror group	Flat, concave double-sided mirror	○
Camera interface	1 × camera tube (for digital camera)	○
Camera interface	0.5 × camera tube (for camera system)	○
Digital system	Digital camera and digital camera device	○

Medical Laboratory Microscope For Blood Analysis College Educational Darkfield Live
