MIT100 Metallographic Microscope High Precision WF10×/18 Eyepiece

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: MIT100
Minimum Order Quantity: 1set
Price: USD1022-USD1806/set
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Detail Information
Eyepiece: WF10×/18 Objective Lens: Infinity Field Metallographic Lens 5×/0.13 W.D=24.23mm
Observation Tube: Hinged Three Eyepiece Group, 30 ° Tilt, Interpupillary Distance Adjustment 48 ~ 75mm, Splitting Ratio 80:20 Converter: Internal Positioning Of Four-hole Converter
Stage: Mechanical Moving Stage, An Area Of 200mm × 140 Mm, Moving Range 76mm × 52mm Filter: Blue (green, Yellow, Gray Optional)
Camera Interface: 1×/0.5× Camera Interface
High Light:

medical lab microscope

,

polarizing microscope


Product Description

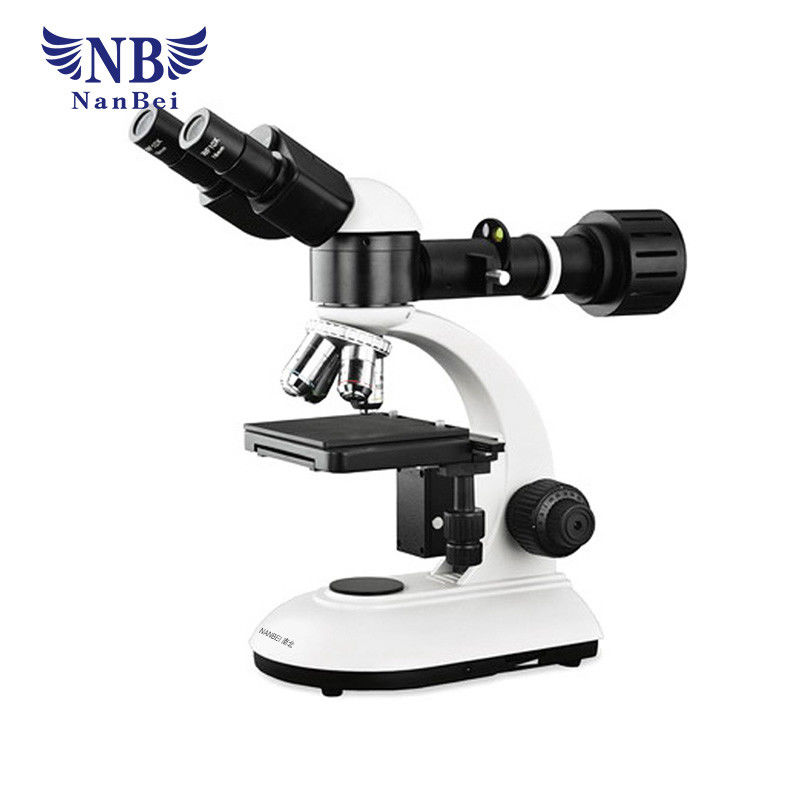

MIT100 Metallographic Microscope High Precision WF10×/18 Eyepiece





Brief introduction of metallographic microscope:

Widely used in industrial and mining enterprises, teaching, research and other fields ...



Features of NANBEI metallographic microscope:

1. Widely used in industrial and mining enterprises, teaching, research and other fields

2. Essential tools for inspection, analysis and research of electronic, metal materials, minerals, geology, precision instruments, etc.

3. Complete range of infinity long working distance metallographic lens





MIT100 Metallographic Microscope High Precision WF10×/18 Eyepiece 0



Name Specifications Configuration
eyepiece WF10×/18
WF10×/18 (With 0.1mm ruler and cross division)
Objective lens Infinity field metallographic lens 5×/0.13 W.D=24.23mm
Infinity field metallographic lens 10×/0.25 W.D=18.48mm
Infinity field metallographic lens 20×/0.40 W.D=8.35mm
Infinity field metallographic lens 40×/0.66 W.D=3.90mm
Infinity field metallographic lens 50×/0.70(S) W.D=1.95mm
Infinity field metallographic lens 80×/0.80(S) W.D=0.85mm
Observation tube Hinged binoculars, 30 ° tilt, interpupillary distance adjustment 48 ~ 75mm
Hinged three eyepiece group, 30 ° tilt, interpupillary distance adjustment 48 ~ 75mm, splitting ratio 80:20
converter Internal positioning of four-hole converter
Stage Mechanical moving stage, an area of 200mm × 140 mm, moving range 76mm × 52mm
Focusing device Coarse coaxial focus, coarse stroke 26mm, fine-tune the grid value of 2μm, coarse tune with elastic adjustment
Lighting system Reflective Cola lighting system, 6V20W halogen lamp, brightness adjustable
Filter Blue (green, yellow, gray optional)
Camera interface 1×/0.5× Camera interface

Note: "●" is required, "○" is optional
