Medical Laboratory Microscope - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	BK-FL

Minimum Order Quantity:	1set
Price:	USD3235-USD4582/set
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…

Detail Information

Eyepiece:	WF10×／22mm	Infinity:	PLAN 4×／0.10
Converter:	Inclined Internal Positioning Five-hole Converter	Stage:	Wire Drive Stage (X-axis Is Not Protruding), Double-clip Structure
Filter:	Blue (yellow, Green, Gray Optional)	Dark Field Device:	Dark Field Condenser (wet), Suitable For 100 × Objective Lens
Polarizer:	Polarizer, Analyzer
High Light:	76mm medical lab microscope , 76mm Laboratory Microscope , 48mm Laboratory Microscope

Product Description

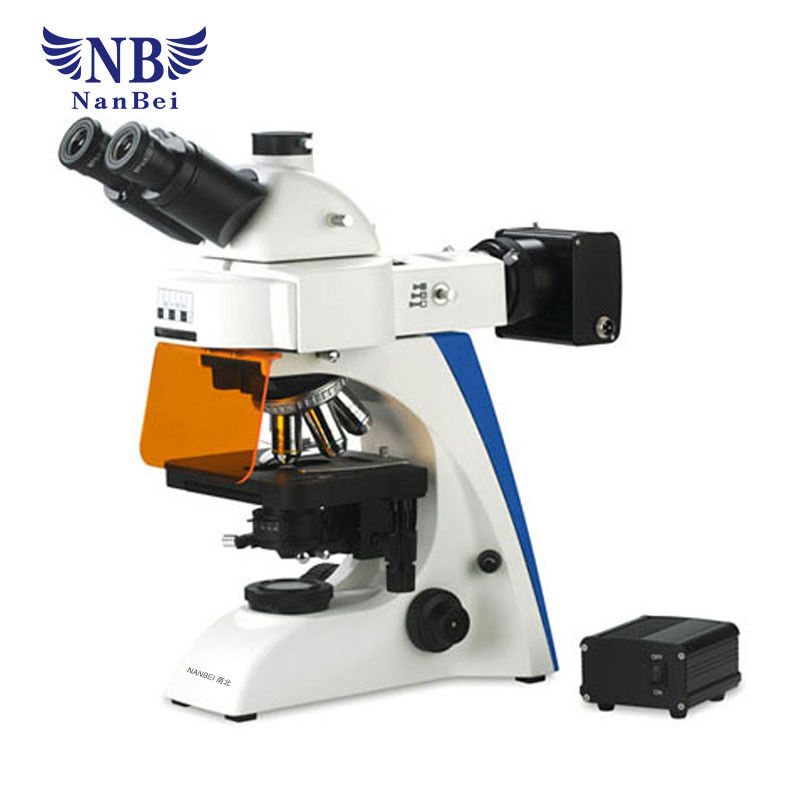

BK-FL Medical Laboratory Microscope , Fluorescence Microscope With Trinocular

Brief introduction of Fluorescence microscope:

Applicable to professional-level laboratories, medical research, university teaching, new materials research and testing

Features of NANBEI Fluorescence microscope:

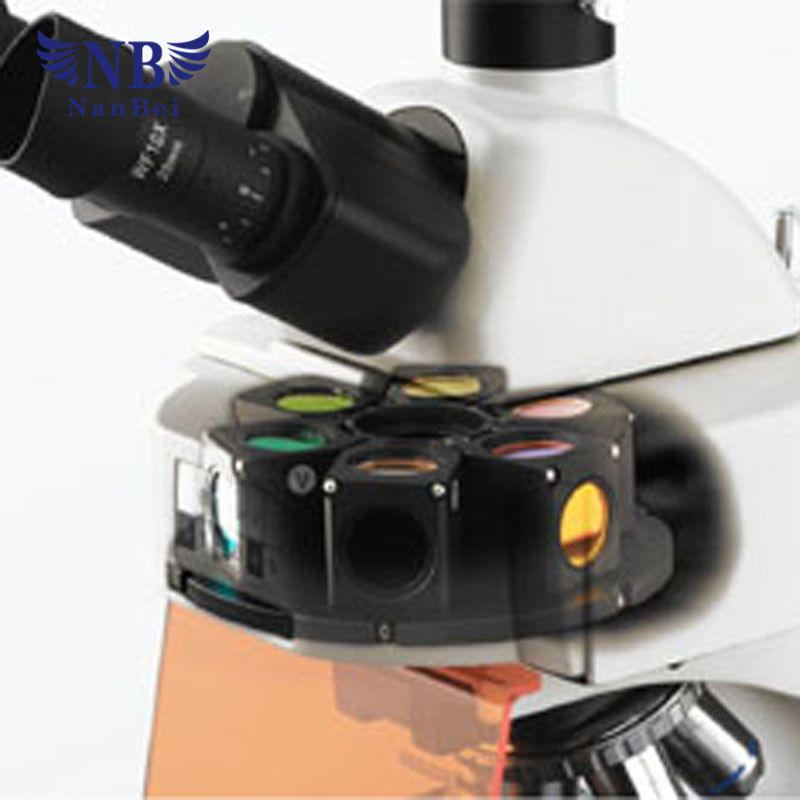

1. Can install up to six different sets of fluorescent filters, the use of more convenient

2. Provide a variety of imported filter options

76mm Laboratory Microscope 0

Name	specification	Configuration
eyepiece	WF10×／22mm	Y
Infinity field achromatic objective lens	PLAN 4×／0.10	Y
	PLAN 10×／0.25	Y
	PLAN 20×／0.40(S)	Y
	PLAN 40×／0.66(S)	Y
	PLAN 100×／1.25(S,Oil)	Y
Observation tube	Hinged three-eye tube, 30 ° tilt, interpupillary distance adjustment 48mm ~ 76mm Two-step conversion: 100% observation; 20% observation, while 80% photography	Y
converter	Inclined internal positioning five-hole converter	Y
Stage	Wire drive stage (X-axis is not protruding), double-clip structure	Y
Condenser	N.A.0.9/0.13Shake the condenser, with a variable light bar	Y
Lighting system	6V / 30W halogen (wide voltage input: 100V ~ 240V), with light field, center adjustable	Y
Filter	Blue (yellow, green, gray optional)	Y
Camera interface	1 × camera connector (C-Mount interface for digital cameras)	O
	0.5 × camera tube (C-Mount interface, suitable for camera system)	O
Digital camera interface	CANON / NIKON / OLYMPUS and other digital cameras	O
Fluorescent devices	Six-hole turntable fluorescent device (optional B, G, Uv, V and other special color filter) 100W digital mercury lamp power supply	Y
	Six-hole turntable fluorescent device (optional optional B, G, Uv, V filter), LED fluorescent power	Y
Phase contrast device	Five-hole turntable phase contrast device(10×／20×／40×／100×Phase contrast objective lens)	O
	10×／20×／40×／100×Independent phase contrast device	O
Dark field device	Dark field condenser (dry), suitable for 4 × - 40 × objective lens	O
	Dark field condenser (wet), suitable for 100 × objective lens	O
Polarizer	Polarizer, analyzer	O
