Stereo Medical Laboratory Microscope For Electronic Repairing

Basic Information

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	XTL-400

Minimum Order Quantity:	1set
Price:	USD338-USD654/set
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…

Get Best Price Contact Now

Detail Information

Data 0.5X:	3.3X-22.5X	Data 0.75X:	4.9X-33.8X
Data 1X:	6.5X-45X	Data 1.5X:	9.8X-67.5X
Data 2X:	13X-90X	Eyepiece:	Eyepiece: 10X Eyepiece
Working Distance:	95mm	Objective Zoom Range:	0.65X-4.5X
High Light:	polarizing microscope , inverted microscope

Product Description

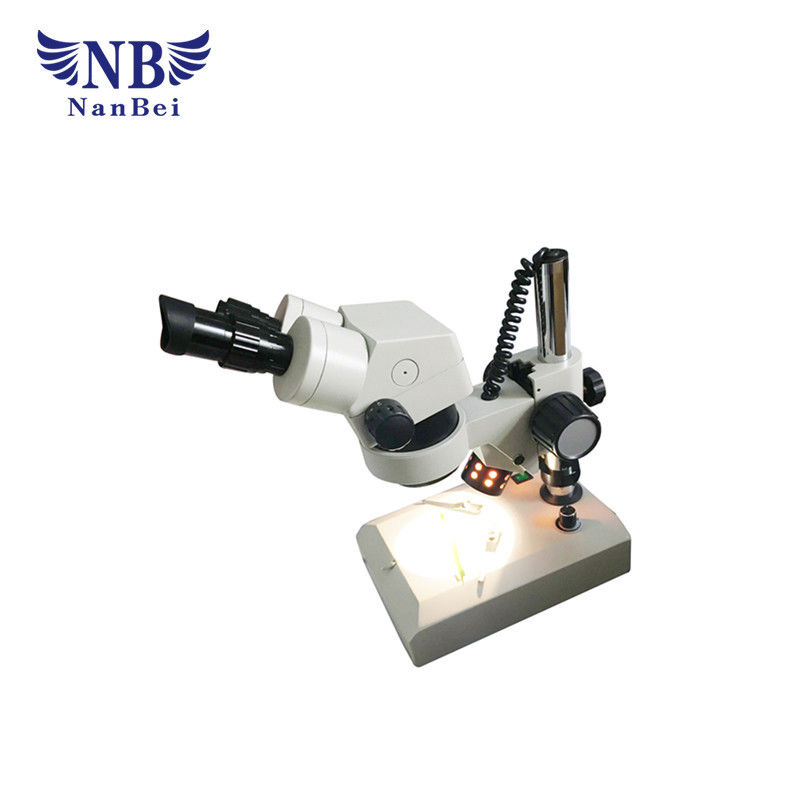

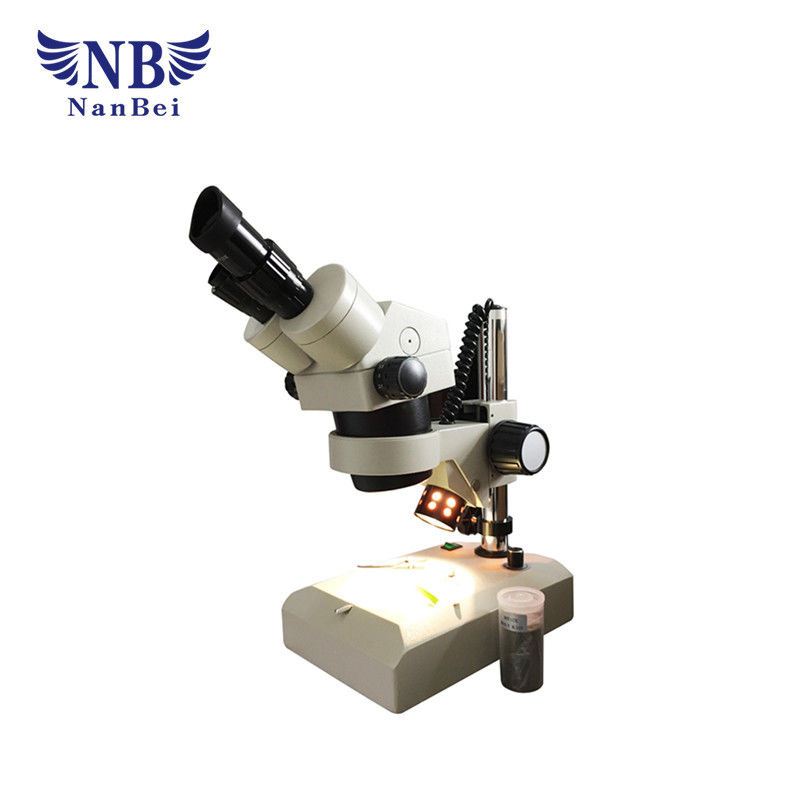

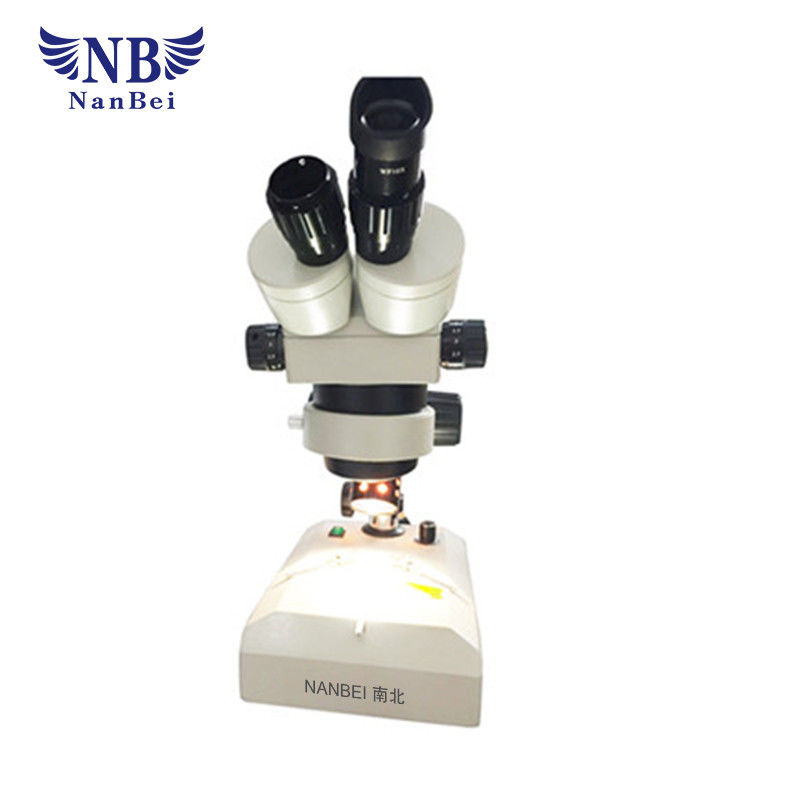

Stereo Medical Laboratory Microscope For Electronic Repairing

Brief introduction of stereo microscope:

Exported well all over the world because of their price to performance value, the XTL Series is a customer favorite. The fixed transmission system combines with a unique zoom design to deliver a 1:7 zoom ratio.

Features of NANBEI stereo microscope:

1. Zoom ratio: 1:7

2. Objective zoom range: 0.65X-4.5X

3. Eyepiece: 10X eyepiece

4. Working distance: 95mm

5. Interpupillary distance adjustment range: 55mm-75mm

6. Binocular head: inclination of 45

7. Diopter adjustment: ±5 diopter

8. Optical body rotation: 360

9. Voltage input: 110V/60HZor220V/50HZ

10. Top halogen lamp: 6V12W adjustable brightness

11. Bottom fluorescent lamp: 5W

Stereo Medical Laboratory Microscope For Electronic Repairing 0

Project	Auxiliary Objective	Eyepiece								Working distance(mm)
		WF10X		WFl5X		WF20X		WF25X
		Magnifi-cation	Visual field	Magnifi-cation	Visual field	Magnifi-cation	Visual field	Magnifi-cation	Visual field
Data	0.5X	3.3X-22.5X	61.4-8.8	4.9X-33.8X	49.2-7	6.5X-45X	40-5.8	8.1X-56.3X	37-5.2	150
	0.75X	4.9X-33.8X	41-5.9	7.3X-50.6X	32.8-4.7	9.75X-67.5X	26.6-3.8	12.2X-84.4X	24.6-3.5	100
	1X	6.5X-45X	30.7-4.4	9.8X-67.5X	24.6-3.5	13X-90X	20-2.9	16.3X-112.5X	18.5-2.6	95
	1.5X	9.8X-67.5X	20.5-2.9	14.6X-101.3X	16.4-2.3	19.5X-135X	13.3-1.9	22.4X-168.8X	12.3-1.8	41
	2X	13X-90X	15.4-2.2	19.5X-135X	12.3-1.8	26X-180X	10-1.4	32.5X-225X	9.2-1.3	26
