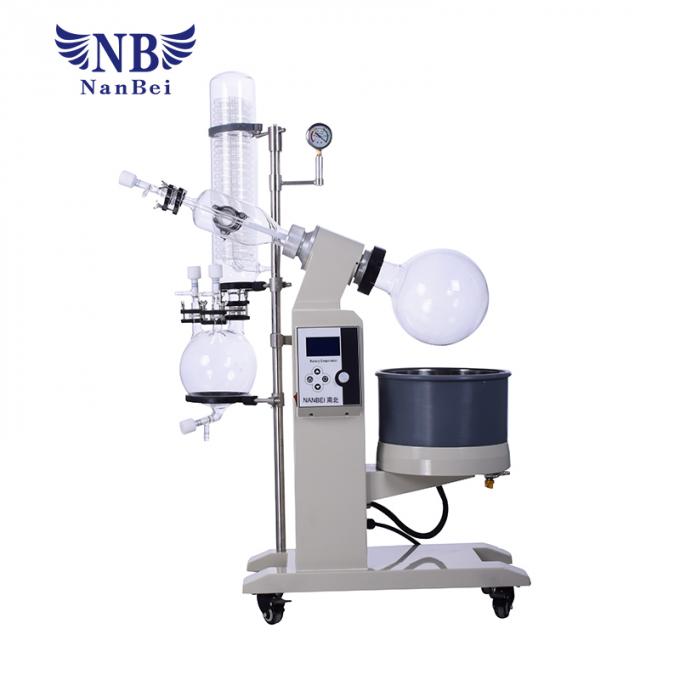

50L 0-120rpm Laboratory Distillation Vacuum Rotary Evaporator with CE,ISO

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: NBRE-5000
Minimum Order Quantity: 1set
Price: USD4662-USD5891/set
Packaging Details: Wooden cases and cartons
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability: 500 set/per day
Detail Information
Evaporator Flask: 50L Collect Flask: 20L
Rotary Speed: 0-120rpm Heating Power: 8kw
Heating Temp: 0-400c Glass Temp Range: -80c To 250c
Didcharge Valve: 15mm Glass And Lean Discharge Port Lifting Stroke: 0-180mm
Lifting Mode: Lifting Mode Warranty: 1 Year
High Light:

chiller rotary evaporator


rotary vacuum evaporator

Product Description


Laboratory Distillation Vacuum Rotary Evaporator 1 Year Warranty



Brief introduction of Lab Rotary Evaporator

Rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly, high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.


Features of Rotary evaporator:

• The main bracket is made of stainless steel and aluminum alloy with reasonable structure and materials.

• All glass components are borosilicate glass (GG-17), high temperature, anti-corrosion.

• Sealing system adopts imported fluorine rubber and Teflon two-way combination seal, long corrosion-resistant life, to maintain a high degree of vacuum.

• Vacuum gauges show real-time vacuum, oil-based table with anti-vibration characteristics.

• Upright three-layer serpentine coil condenser, main cooler + double cooler, ensuring high recovery.

• Continuous feeding for customer's convenience, valve type feeding valve socket PTFE tube.

• Collecting bottles are equipped with dropping materials to facilitate the collection and discharge of evaporated extracts.

• Check valve control, continuous discharge, the machine in working condition, the vacuum switch.

• All valves use the latest integrated hand wheel valve, sealing is good, the operation is more simple and convenient

Microprocessor-based power switch control.

• LCD full screen display, temperature, speed dual digital display, bath thermostat intelligent control, PT100-type sensor, quickly and accurately transfer temperature.

• Brushless DC motor, stable rotation, no spark, slow down by force.

• Bath electric lift, lift part of the deceleration by force motor, lifting process more stable.

• The pot is made of high-quality 304 stainless steel, corrosion-resistant and durable. The outer layer of the pot is covered with a silicone layer, which makes it safer to use at high temperature.

• Over-temperature protection function, when the actual temperature exceeds the set temperature of 5 ℃, the machine will automatically power-off heating.

• Anti-dry function, the heating pot lower than the heating pipe, the machine will automatically power off.

• If there is a sudden power failure while the machine is working, the machine will stop heating automatically when the power is turned on again.

50L 0-120rpm Laboratory Distillation Vacuum Rotary Evaporator with CE,ISO 0

Power supply 380V/50HZ (various power supply and plug can be customized)
Rotating motor power 100W
Lifting motor power 60W
Heating power 8KW
Vacuum degree 0.098Mpa
Rotating flask capacity 50000ml Φ470mm/Φ125mm flange mouth
Collecting flask capacity 20000ml Φ355mm/Φ60mm flange mouth
Rotating speed 0-120rpm/min
Temperature controlling range 0-400℃
Temperature controlling accuracy ±1℃
Glass temperature range -80-250℃
Lifting stroke 0-180(mm)
Condenser size MainΦ160×840H(mm) DeputyΦ160×480H(mm)
Feed valve Φ35 flange mouth
Release valve Φ35 flange mouth*2pcs
Discharge valve ¢15mmglass and lean discharge port
Bath size/volume Φ550×320H(mm) about76L
Dimension 1400*600*2250(mm)
Packing size 1270L×620W×1440H(mm) about1.133m3
Gross weight 118KG
