1L-5L NBRE-301 Molde Rotary Vacuum Evaporator Harga For Alcohol Distiller

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: NBRE-301
Minimum Order Quantity: 1set
Price: 538USD-745USD
Packaging Details: Wooden cases and cartons
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability: 500 set/per day
Detail Information
Glass Meterial: GG-17 Holder Material: Stainless Steel
Pot Bravery: Stainless Steel 250*140mm Plate Size: 280*330
Vacuum Degree: 0.098Mpa Rotary Speed: 0-120RPM
High Light:

large rotary evaporator

,

rotary vacuum evaporator


Product Description



NBRE-301 Molde Rotary Vacuum Evaporator Harga For Alcohol Distiller





Brief introduction of Rotary Vacuum Evaporator

vacuum rotary evaporator harga is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration.

Features of vacuum evaporation:

1. using PTFE and fluorine rubber compound sealing to maintain a high vacuum degree.

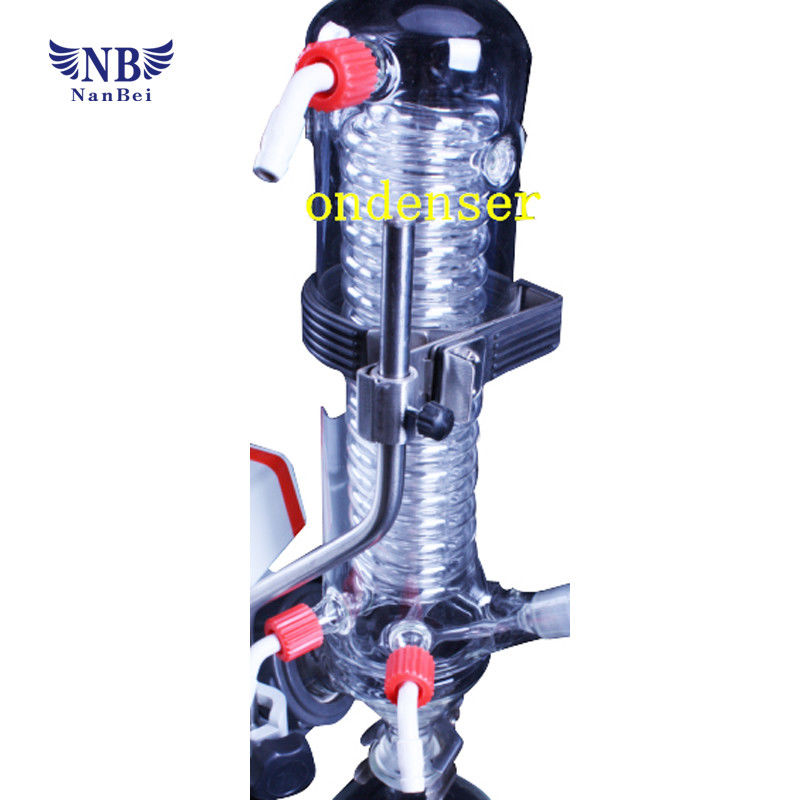

2. it adopts high-efficiency condenser to ensure high recovery rate.

3. feeding continuous.

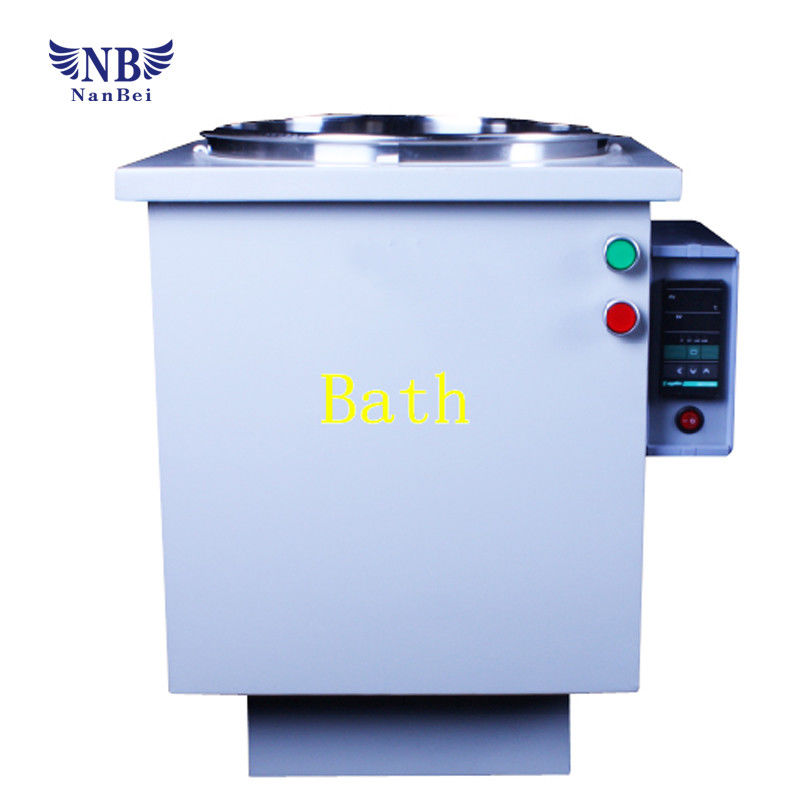

4. water bath with digital and continuous temperature controlling.

5. reasonable structure, special materials . The mechanical structure mainly use stainless steel and aluminum alloy parts, glass pieces are all made of high temperature resistant and high boron glass. Imported Electrical key-module. Rubber seal is easy to adopt the new international, making it easy for users to purchase and update.

1L-5L NBRE-301 Molde Rotary Vacuum Evaporator Harga For Alcohol Distiller 0

Model NBRE-201D NBRE-301 NBRE-501
Glass meterial GG-17
Holder material Stainless steel
Pot shell Material

aluminium alloy

270*270*195mm

aluminium alloy

270*296*240mm

aluminium alloy

310*320*240mm

Pot bravery

Stainless steel

250*140mm

Stainless steel

255*170mm

Stainless steel

280*170mm

Plate size 280*330 350*330 350*330
Evaporator flask 2L 24#

3L

flange mouth:Φ50mm

5L

flange mouth:Φ50mm

Collect flask 1L 24# 2L 35# 3L 35#
Vacuum degree 0.098Mpa
Rotary speed 0-120RPM
Rotary power 30W 40W 40W
Heating power 1.5KW 2KW 2KW
Heating temp. 0-400℃
Temp. accuracy -1℃
Lifting stroke 120mm
Voltage 220/110V 50/60HZ
Dimension 700*440*885mm 660*330*970 700*335*1009
Packing size 590*460*460mm 1000*460*450 1040*620*410mm
Packing weight 21kg 38kg 38kg
