NBRE-1000 Lab Rotary Evaporator For Lab Concentration Experiment

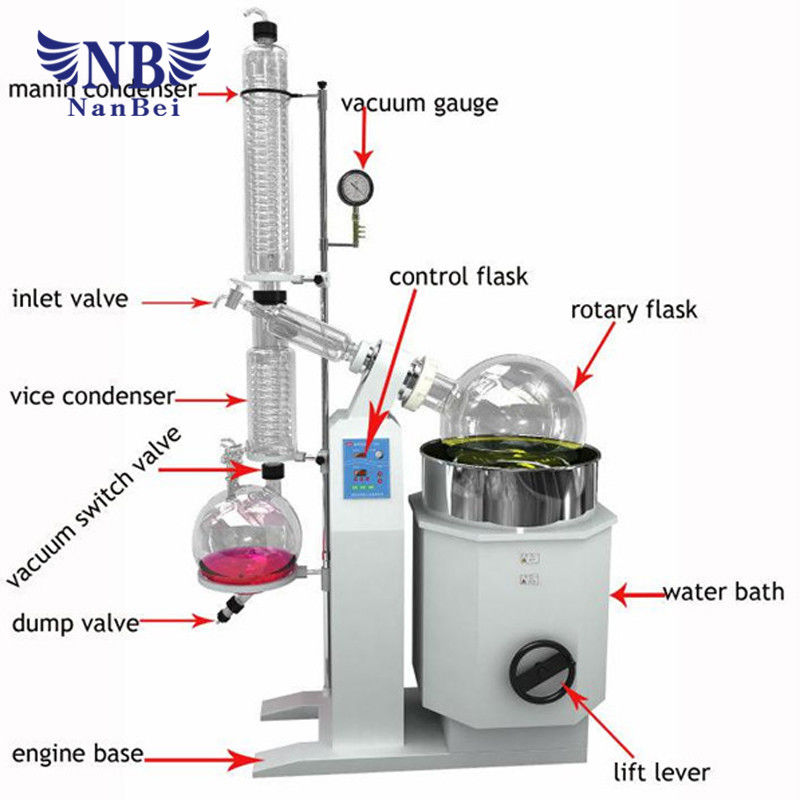

Brief introduction of 50L Rotary Evaporator

Rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly, high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.

Features of Rotary evaporator:

• The main bracket is made of stainless steel and aluminum alloy with reasonable structure and materials.

• All glass components are borosilicate glass (GG-17), high temperature, anti-corrosion.

• Sealing system adopts imported fluorine rubber and Teflon two-way combination seal, long corrosion-resistant life, to maintain a high degree of vacuum.

• Vacuum gauges show real-time vacuum, oil-based table with anti-vibration characteristics.

• Upright three-layer serpentine coil condenser, main cooler + double cooler, ensuring high recovery.

• Continuous feeding for customer's convenience, valve type feeding valve socket PTFE tube.

• Collecting bottles are equipped with dropping materials to facilitate the collection and discharge of evaporated extracts.

• Check valve control, continuous discharge, the machine in working condition, the vacuum switch.

• All valves use the latest integrated hand wheel valve, sealing is good, the operation is more simple and convenient

Microprocessor-based power switch control.

• LCD full screen display, temperature, speed dual digital display, bath thermostat intelligent control, PT100-type sensor, quickly and accurately transfer temperature.

• Brushless DC motor, stable rotation, no spark, slow down by force.

• Bath electric lift, lift part of the deceleration by force motor, lifting process more stable.

• The pot is made of high-quality 304 stainless steel, corrosion-resistant and durable. The outer layer of the pot is covered with a silicone layer, which makes it safer to use at high temperature.

• Over-temperature protection function, when the actual temperature exceeds the set temperature of 5 ℃, the machine will automatically power-off heating.

• Anti-dry function, the heating pot lower than the heating pipe, the machine will automatically power off.

• If there is a sudden power failure while the machine is working, the machine will stop heating automatically when the power is turned on again.
