ATH-100P Physical Testing Instrument For Spring Compression And Tension

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: ATH-100P
Minimum Order Quantity: 1set
Price: USD523-USD953/set
Packaging Details: Wooden cases and cartons
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability: 500 set/per day
Detail Information
Diameter Of The Platen: 48mm Maximum Free Length Of Measurable Spring: 150mm
Length Of Travel Of The Displacement Scale: 90mm Division Value Of The Displacement Scale: 0.01mm
Indication Error: ±1% Power Supply: AC 110-220V, 50HZ-60HZ
Power Capability (with Printer): 20W Working Temperature: 20±10℃
High Light:

spring compression tester

,

torsion testing machine


Product Description

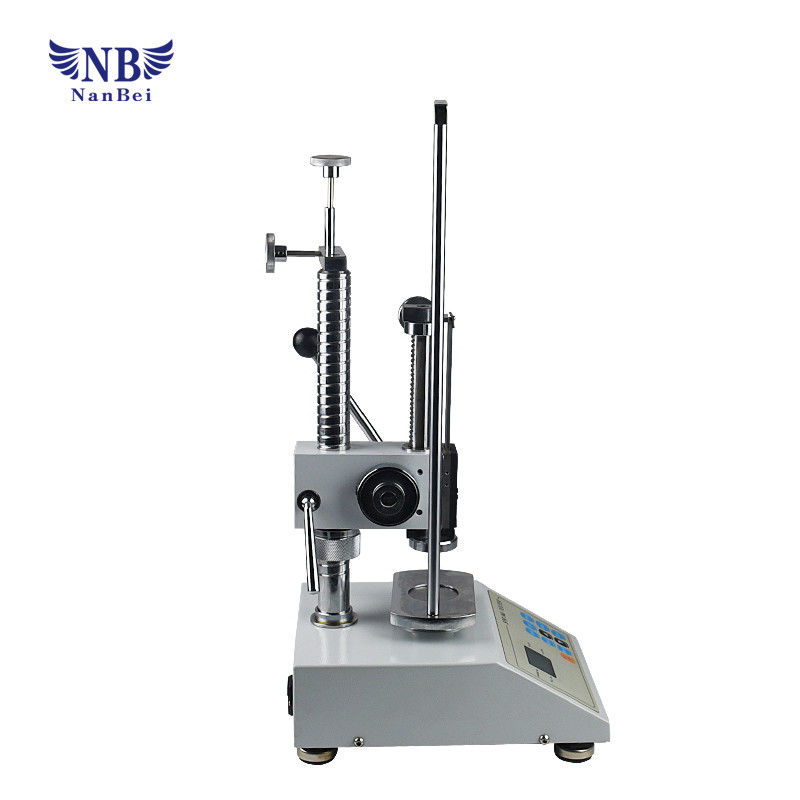

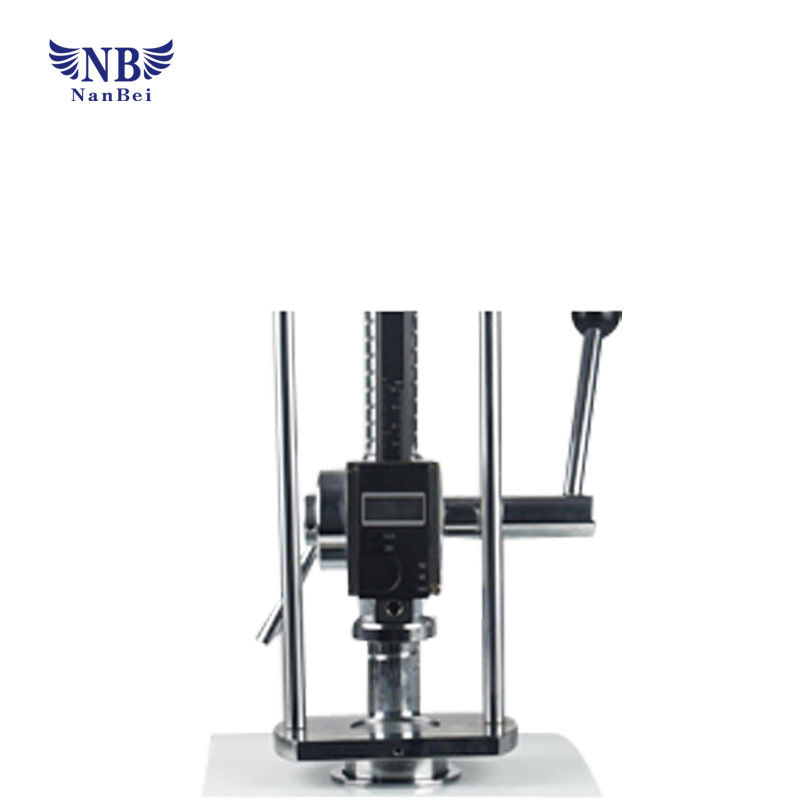

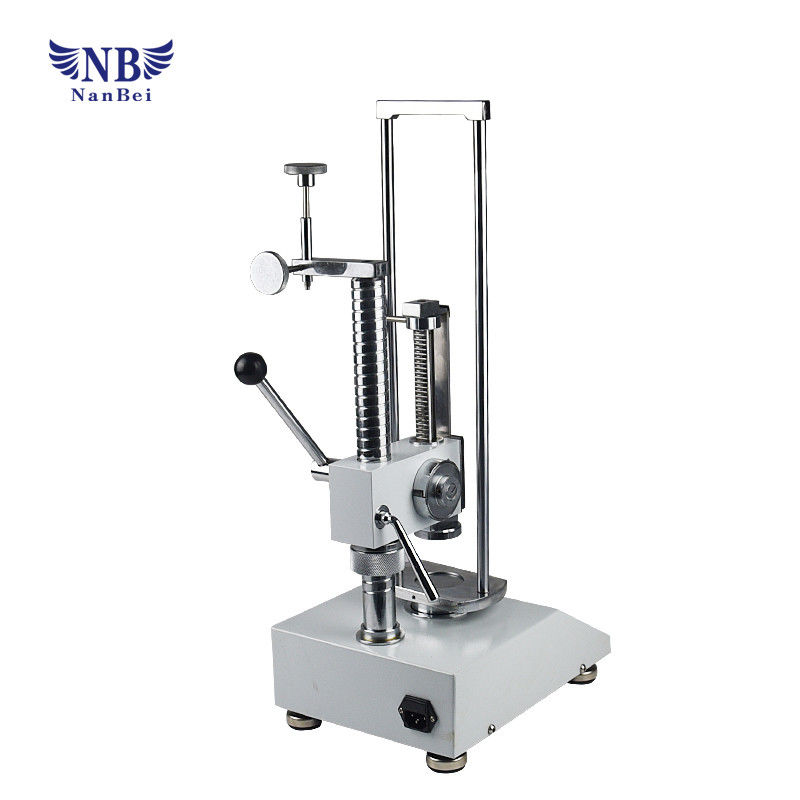

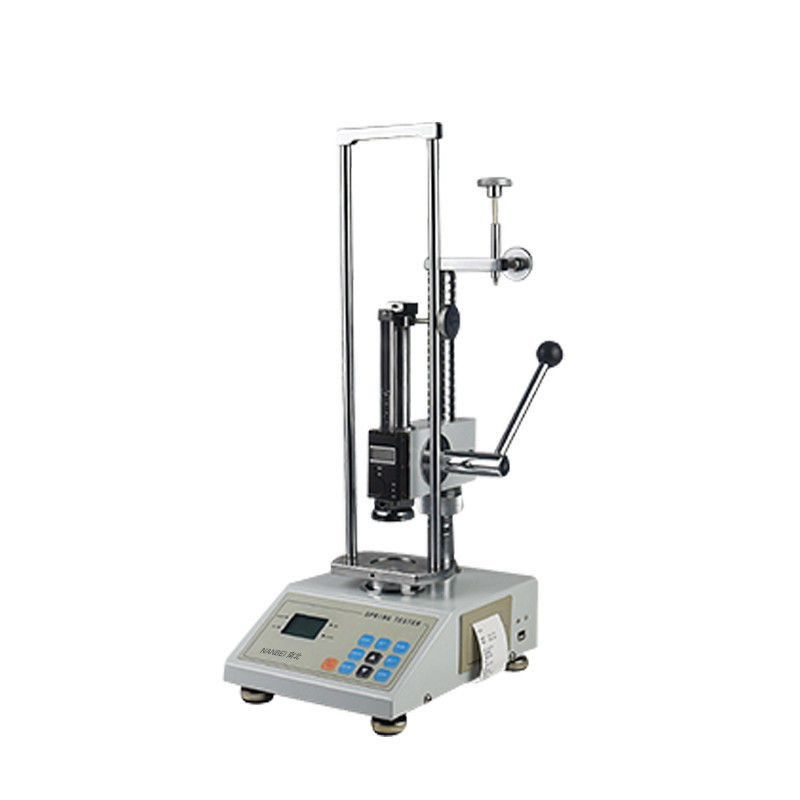

ATH-100P Physical Testing Instrument For Spring Compression And Tension





Spring load tester machine for spring compression and tension testing,extension spring tester

ATH series of digital spring tension and compression testing machine is to test the tensile, compression spring deformation and load characteristics of the special equipment.

For tensile and compression springs under a certain length of work load test, can also be used for spring, rubber and other elastic device elastic load test. The instrument has a print with no print.



Parameter of Spring Compression And Tension

1. high-precision high-resolution: precision 1, the minimum reading of 0.001N;

2. three kinds of display options: real-time, peak, automatic peak;

3. three units of conversion: N, kg, lb

4. the peak to maintain the function: to capture the test peak;

5. the comparison function: the upper and lower limits of free deviation set, the alarm lights were to traffic lights and peak automatic alarm;

6. the automatic peak function: peak hold time (1 to 99 seconds) free to set;

7. automatic shutdown function: 0 ~ 99 minutes no operation automatically shut down (0 seconds that does not automatically shut down);

8. gravity acceleration function: according to different regions, can be freely set (9.000 ~ 9.999);

9. the calculation function: connected to the computer, you can automatically calculate the maximum value of each test, the minimum, the average;

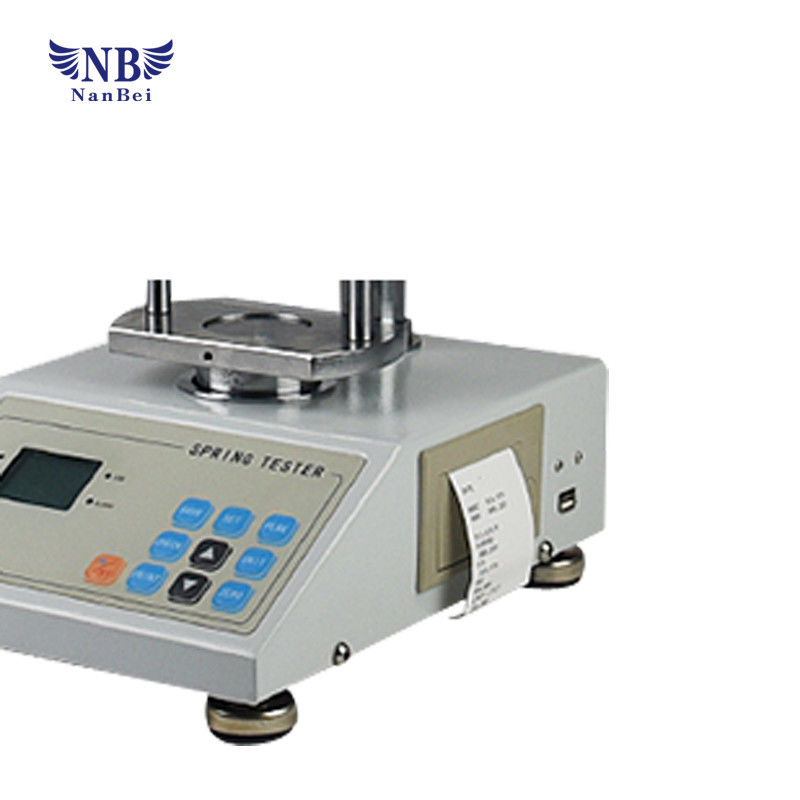

10. built-in printer: can print 99 sets of stored measurement data and the maximum, minimum, average and so on.



ATH-100P Physical Testing Instrument For Spring Compression And Tension 0



Model Number ATH- 100 ATH- 150 ATH- 200 ATH- 300 ATH- 500
Maximum testing load 100N 150N 200N 300N 500N
Minimum resolution 0.01N
Diameter of the platen 48mm

Maximum free length

of measurable spring

150mm

Length of travel

of the displacement scale

90mm

Division value of

the displacement scale

0.01mm
Indication error ±1%
Power Supply AC 110-220V, 50HZ-60HZ

Power capability

(without printer)

13W

Power capability

(with printer)

20W
Working temperature 20±10℃

Temperature of storage

and transportation

-27℃~+70℃
Relative temperature 15%~80%RH
