Physical Testing Instrument - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	HD-1T

Minimum Order Quantity:	1set
Price:	USD476-USD833/set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:	500 set/per day

Detail Information

Error Of Indication:	±0.5%	Accuracy:	According To The Ropes Characteristics Of Different Forms, Precision Is The 2%-6% Of The Full Range.
Unit:	N(KN) Kg(Mg Or T) Lb(Klb)	Output Interface:	Rs232 Nine Holes Socket
Power:	Rechargeable Batteries Battery Voltage(100V-240V)	Sensor Structure:	S Type Or Cylinder Shape High-accuracy Sensor (External)
Operating Temperature:	-20℃+60℃	Transportation Temperature:	-20℃+60℃
High Light:	peel strength testing machine , torsion testing machine

Product Description

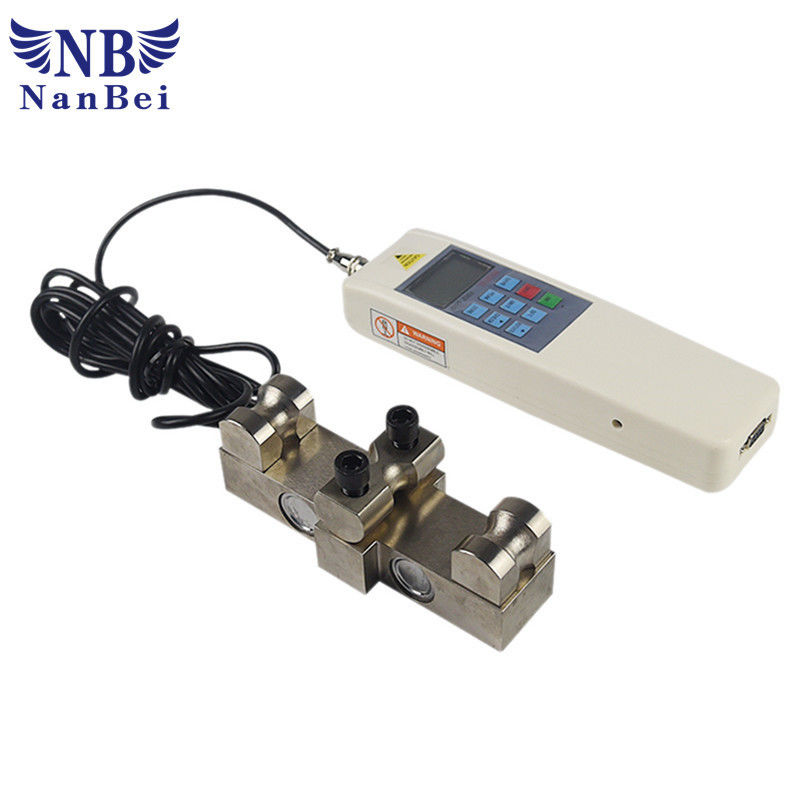

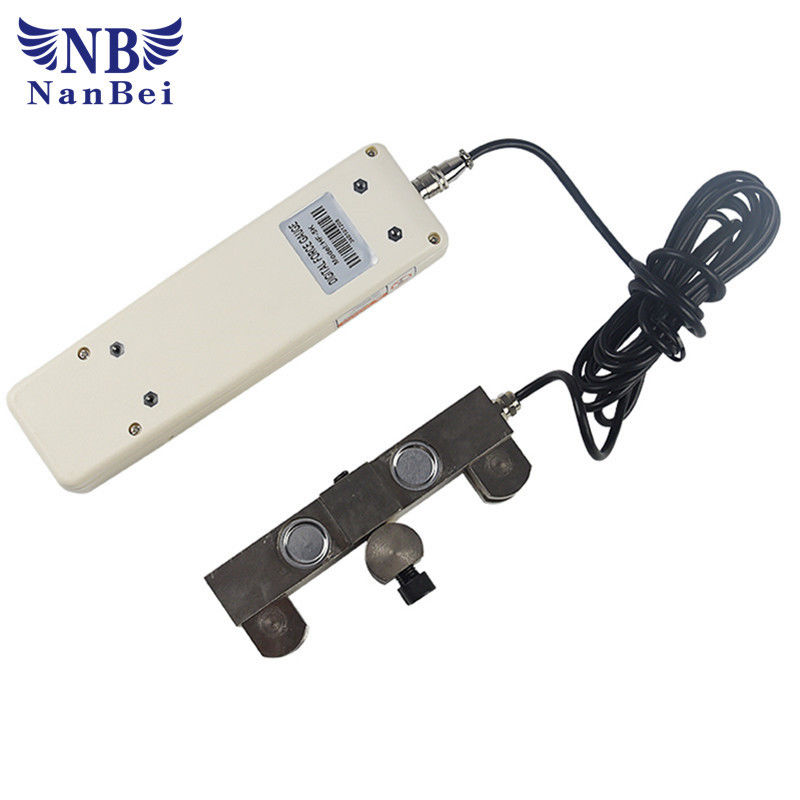

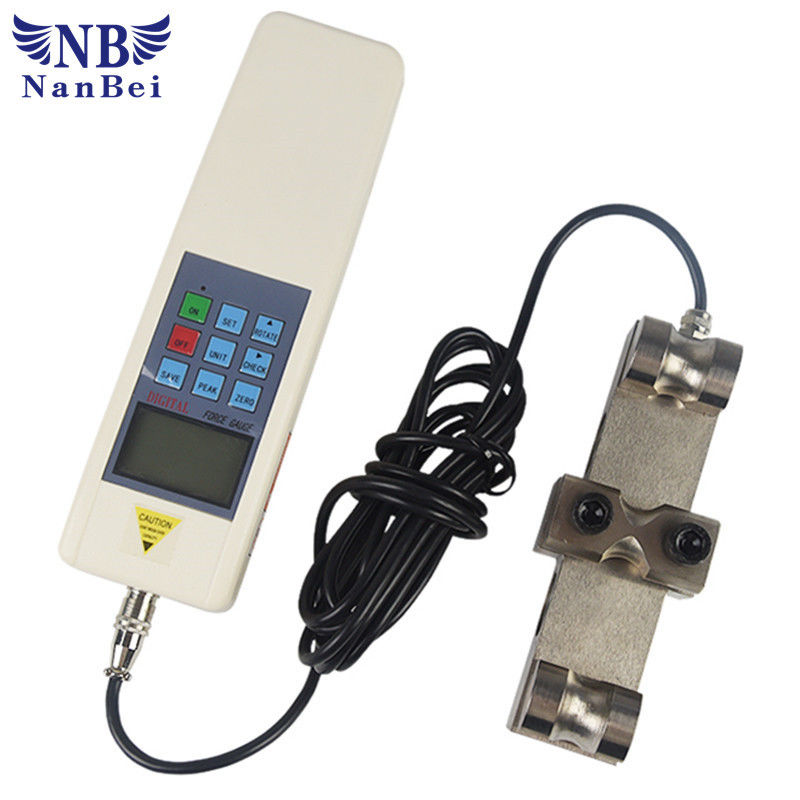

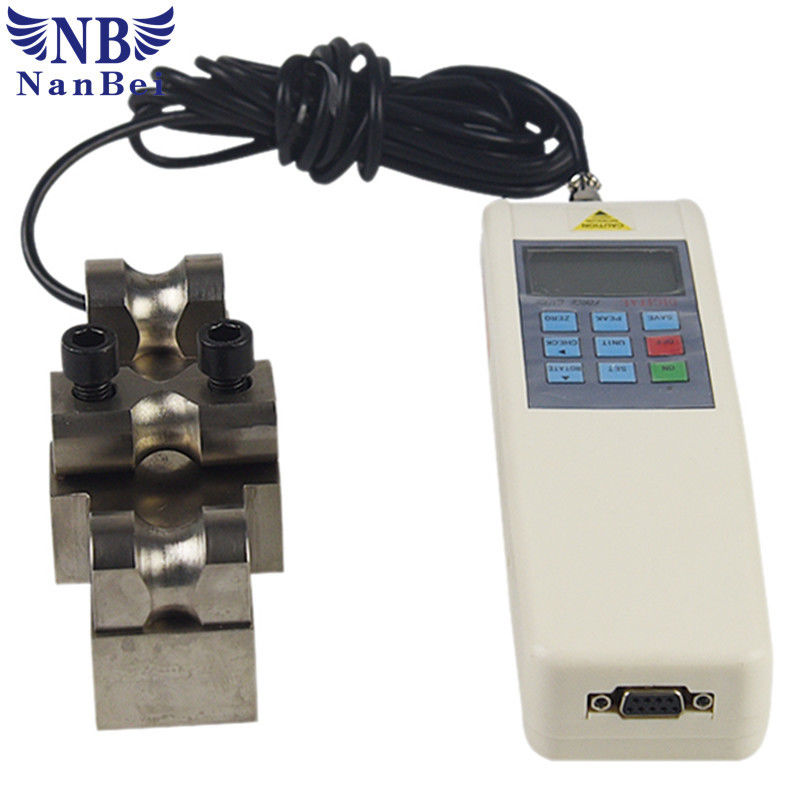

Digital Pressuremeter Tension Tester,Pressuremeter Wirerope Tension Meter

Digital Pressuremeter tension tester,wirerope tension meter,Pressuremeter wire tension tester

Introduction of Digital Pressuremeter Tension Tester

HD digital pressuremeter tension tester is a kindof special equipment to measure wind towers,

signal transmission and power transmission systems rope tension. It has characters of high precision, easy to operate, easy to carry, etc. also it has many kinds of test modes, convenient to testing.

Users can also input gravity acceleration value to make the test more accurately.

Function Characteristics of Digital Pressuremeter Tension Tester

1: High precision, high resolution.

2: Five kinds of test modes, three kinds display modes---To improve test efficiency to the greatest extent.

3: N (Newton), kg (kg), lb (lb) three testing units for selection, mutual conversion.

4: Gravity acceleration setting function---Users can input the precise gravity acceleration value of testing place, make the testing and unit conversion more accurate.

5: Peak holding function---Maintain peak display until manual reset.

6: Automatic peak function---Maintain peak value can be removed automatically after 2 seconds.

7: Can set upper and lower limit value to make statistical analysis, the value more than comparative value, the alarm buzzer will alarm.

8: Data stored function, we can store 896 test values.

9: 10 minutes without operating automatic shutdown, green initiative.

10: High quality charging power,charge voltage from 240V to 100V, can adapt to domestic and foreign most areas,also have short circuit, leakage, overload protection function.

11: 2 sets of installation dimensions, adapt to domestic and foreign most test machines,convenient to installation and using.

12: Six digit Big screen display.

Digital Pressuremeter Tension Tester，Pressuremeter Wirerope Tension Meter with CE 0

Model	HD1T	HD2T	HD5T	HD10T	HD20T
Max load value	10KN	20KN	50KN	100KN	200KN
Load division value	0.01KN	0.01KN	0.01KN	0.1KN	0.1KN
	0.001Mg	0.001Mg	0.001Mg	0.01Mg	0.01Mg
	0.001Klb	0.001Klb	0.001Klb	0.01Klb	0.01Klb
Error of indication		±0.5%			±1.0%
Accuracy	According to the ropes characteristics of different forms, precision is the 2%-6% of the full range.
Unit	N(KN) Kg(Mg or T) Lb(Klb)
Output interface	Rs232 Nine holes socket
Power	Rechargeable batteries Battery voltage(100V-240V)
Sensor structure	S type or cylinder shape high-accuracy sensor (External)
Operating temperature	-20℃+60℃
Transportation temperature	-20℃+60℃
Relative temperature	10%-90% RH
Work environment	No seismic focus and corrosive medium around
Net weight	About 400g+weight of sensor
Size	230 * 66 * 36mm
