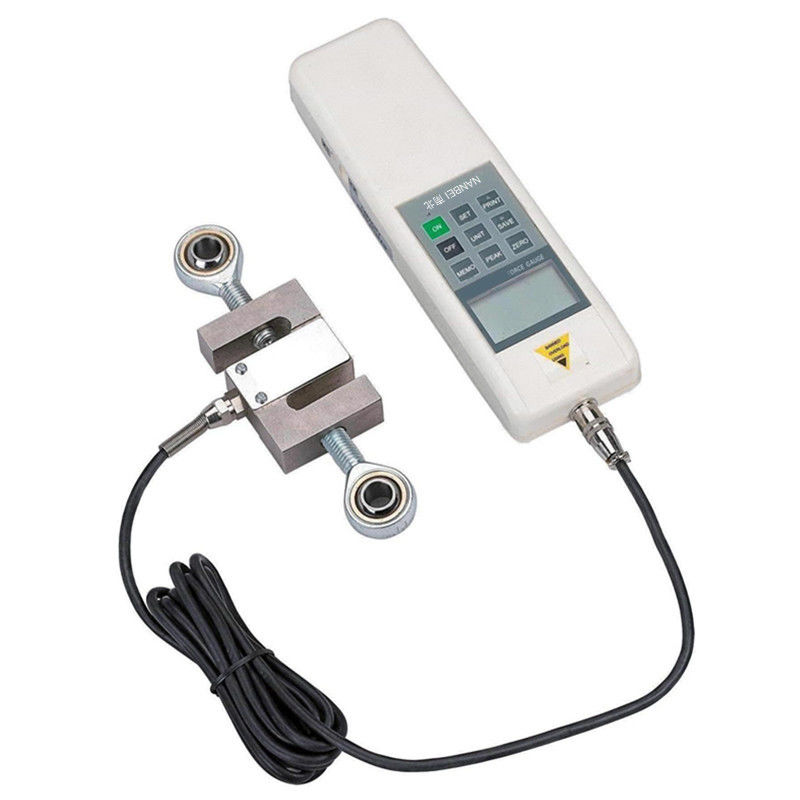

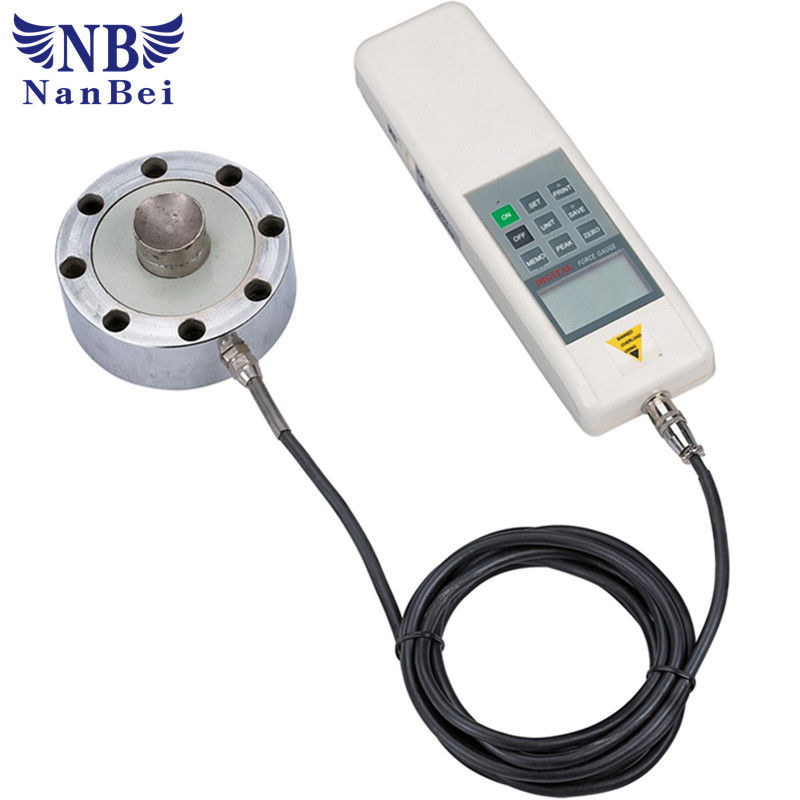

Push Pull Physical Testing Instrument Digital Orthodontic Force Gauge

Push pull digital force gauge,orthodontic force gauge,clamping force gauge,hf force gauge

Product description

HF series of digital push-pull force meter is a small, simple and versatile high-precision thrust, tensile testing equipment, widely used in electronic appliances, construction hardware, light industry and textile, auto parts, lighters and other ignition devices, fire equipment, , Lock, fishing gear, chemical, power machinery, scientific research institutions and other industries push and pull load, plug force test, destructive test. Digital display resolution is high, the sampling speed is easy to use, for a new generation of high-precision high-precision push-pull test equipment.

Features of Force Gauge

1. High-precision high-resolution: precision 0.5, the minimum reading of 0.001N;

2. 6 kinds of measurement modes: standard test mode, push and pull peak mode, thrust peak mode, pull peak mode, external node off pass horizontal, external power saving mode, the maximum increase in test efficiency;

3. Three kinds of display options: real-time, peak, automatic peak;

4. Three units of conversion: N, kg, lb;

5. Peak hold function: can capture the peak of the test process;

6. Comparison function: the upper and lower limits of free deviation. LCD display were "MAX" "MIN" display and buzzer automatically reported;

7. Signal output function: You can set the comparison value, when the measured force value is greater than the comparison value, the output signal;

8. Automatic peak function: to maintain the display peak 2 seconds after the automatic release;

9. Automatic shutdown function: 10 minutes without operation automatically shut down;

10. Calculation function: connected to the computer, you can automatically calculate the maximum value of each test, the minimum value;

11. LCD LCD screen can be reversed display: press the "print" button to flip the display 180 degrees;

12. Real-time analysis function: can be connected to the computer, the test on the computer synchronization display test curve to do all kinds of analysis.
