Physical Testing Instrument - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	HF-2000K

Minimum Order Quantity:	1set
Price:	USD1692-USD3588/set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:	500 set/per day

Detail Information

Peak Load Value:	2000KN	Value:	0.1Klb
Indication Error:	±1%	Unit:	N / (KN), Kg / (Mg Or T), Lb (Klb)
Data Interface:	Rs232 Nine-hole Socket	Power:	Rechargeable Batteries, Charger(charging Voltage 100V-240V)
Sensor Structure:	S-type Or Column Sensor With High Precision (external Sensor)	Ambient Temperature:	5° C~35° C
High Light:	peel strength testing machine , torsion testing machine

Product Description

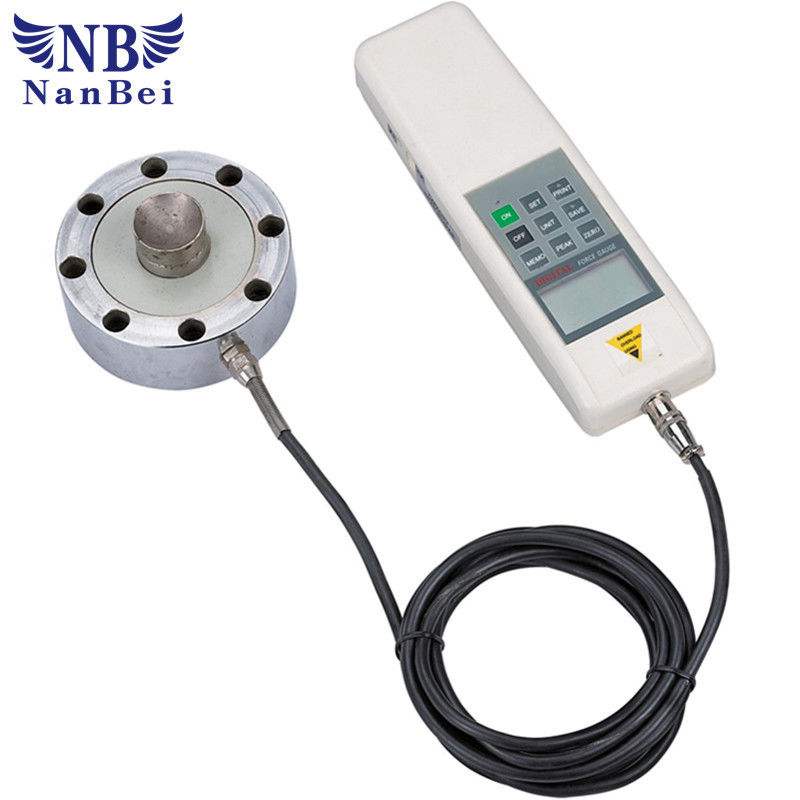

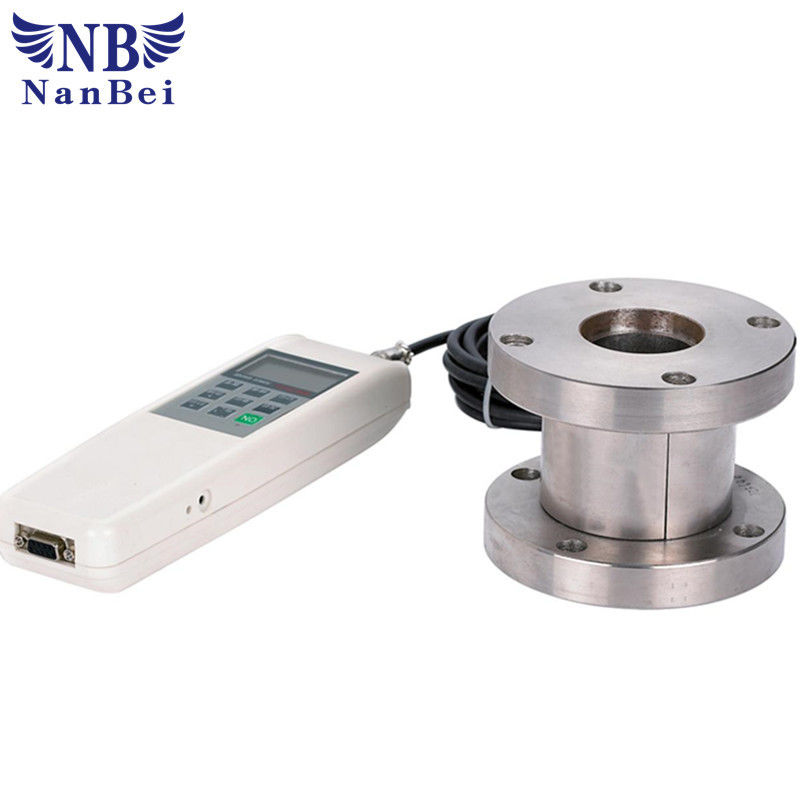

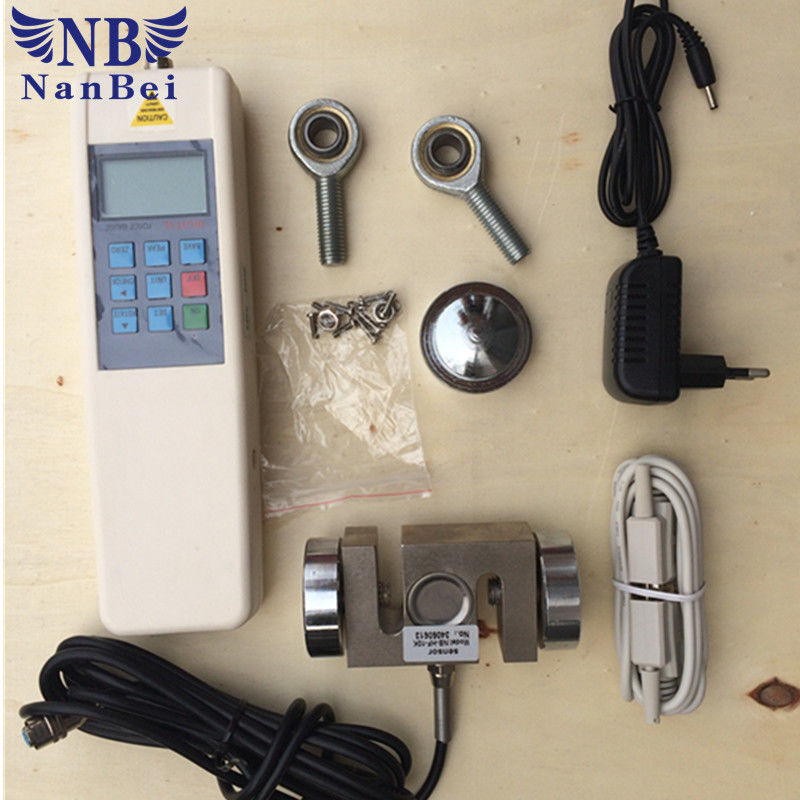

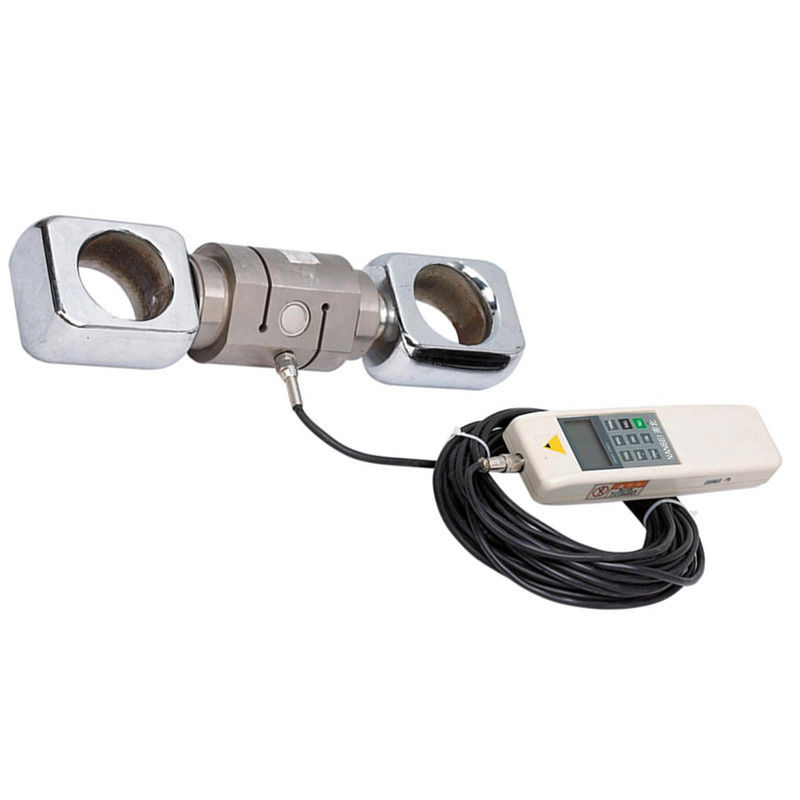

HF-2000K Physical Testing Instrument Push Pull Hf Calibration Dynamometer

Push and pull force meter,digital force meter,clamping force meter,portable force meter

Product description of portable force meter

HF series of digital push-pull force meter is a small, simple and versatile high-precision thrust, tensile testing equipment, widely used in electronic appliances, construction hardware, light industry and textile, auto parts, lighters and other ignition devices, fire equipment, , Lock, fishing gear, chemical, power machinery, scientific research institutions and other industries push and pull load, plug force test, destructive test. Digital display resolution is high, the sampling speed is easy to use, for a new generation of high-precision high-precision push-pull test equipment.

Features of portable force meter

1. High-precision high-resolution: precision 0.5, the minimum reading of 0.001N;

2. 6 kinds of measurement modes: standard test mode, push and pull peak mode, thrust peak mode, pull peak mode, external node off pass horizontal, external power saving mode, the maximum increase in test efficiency;

3. Three kinds of display options: real-time, peak, automatic peak;

4. Three units of conversion: N, kg, lb;

5. Peak hold function: can capture the peak of the test process;

6. Comparison function: the upper and lower limits of free deviation. LCD display were "MAX" "MIN" display and buzzer automatically reported;

7. Signal output function: You can set the comparison value, when the measured force value is greater than the comparison value, the output signal;

8. Automatic peak function: to maintain the display peak 2 seconds after the automatic release;

9. Automatic shutdown function: 10 minutes without operation automatically shut down;

10. Calculation function: connected to the computer, you can automatically calculate the maximum value of each test, the minimum value;

11. LCD screen can be reversed display: press the "print" button to flip the display 180 degrees;

12. Real-time analysis function: can be connected to the computer, the test on the computer synchronization display test curve to do all kinds of analysis.

HF-2000K Physical Testing Instrument 2000KN Push Pull Hf Calibration Dynamometer 0

Model	HF-2000K	HF-3000K
Peak load value	2000KN	3000KN
load division value	1KN
	0.1Mg
	0.1Klb
Indication error	±1%
Unit	N / (KN), kg / (Mg or t), lb (Klb)
Data interface	Rs232 nine-hole socket
Power	rechargeable batteries, charger(charging voltage 100V-240V)
Sensor structure	S-type or column sensor with high precision (external sensor)
Ambient temperature	5° C~35° C
Transport temperature	-10° C~60° C
Relative humidity	15%~80%RH
Working conditions	No hypocenter and corrosive medium
Gross weight	36 kg
Size	310 x 260 x 190 mm
