Physical Testing Instrument - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	HF-2

Minimum Order Quantity:	1set
Price:	USD85-USD317/set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:	500 set/per day

Detail Information

Indication Error:	0.50%	Unit:	N / Kg / Lb
Data Interface:	Rs232 Nine-hole Socket	Power:	Rechargeable Batteries, Charger(charging Voltage 100V-240V)
Sensor Structure:	S-tye Sensor With High Precision (inner Sensor)	Ambient Temp.:	5° C~35° C
Transport Temp.:	-10 C~60° C	Relative Humidity:	15%~80%RH
High Light:	peel strength testing machine , spring compression tester

Product Description

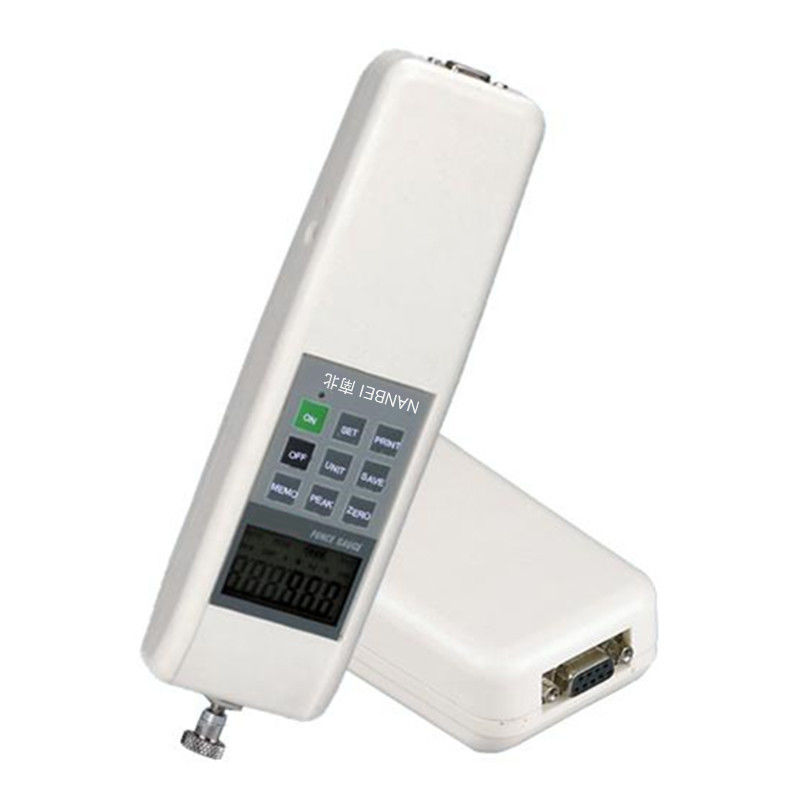

Clamping Push And Pull Force Meter Rs232 Nine-Hole Socket Data Interface

Push and pull force meter,digital force meter,clamping force meter,portable force meter

Product description of Push And Pull Force Meter

HF series of digital push-pull force meter is a small, simple and versatile high-precision thrust, tensile testing equipment, widely used in electronic appliances, construction hardware, light industry and textile, auto parts, lighters and other ignition devices, fire equipment, , Lock, fishing gear, chemical, power machinery, scientific research institutions and other industries push and pull load, plug force test, destructive test. Digital display resolution is high, the sampling speed is easy to use, for a new generation of high-precision high-precision push-pull test equipment.

Features of Push And Pull Force Meter

1. High-precision high-resolution: precision 0.5, the minimum reading of 0.001N;

2. 6 kinds of measurement modes: standard test mode, push and pull peak mode, thrust peak mode, pull peak mode, external node off pass horizontal, external power saving mode, the maximum increase in test efficiency;

3. Three kinds of display options: real-time, peak, automatic peak;

4. Three units of conversion: N, kg, lb;

5. Peak hold function: can capture the peak of the test process;

6. Comparison function: the upper and lower limits of free deviation. LCD display were "MAX" "MIN" display and buzzer automatically reported;

7. Signal output function: You can set the comparison value, when the measured force value is greater than the comparison value, the output signal;

8. Automatic peak function: to maintain the display peak 2 seconds after the automatic release;

9. Automatic shutdown function: 10 minutes without operation automatically shut down;

10. Calculation function: connected to the computer, you can automatically calculate the maximum value of each test, the minimum value;

11. LCD screen can be reversed display: press the "print" button to flip the display 180 degrees;

12. Real-time analysis function: can be connected to the computer, the test on the computer synchronization display test curve to do all kinds of analysis.

Clamping Push And Pull Force Meter Rs232 Nine-Hole Socket Data Interface 0

Model specification		HF-2	HF-5	HF-10	HF-20	HF-50	HF-100	HF-200	HF-500	HF-1000
Peak load value	N	2	5	10	20	50	100	200	500	1000
	kg	2	0.5	1	2	5	10	20	50	100
	lbs	0.44	1.1	2.2	4.4	11	22	44	110	220
load division value	N	0.001	0.001	0.01	0.01	0.01	0.1	0.1	0.1	1
	kg	0.0001	0.0001	0.001	0.001	0.001	0.01	0.01	0.01	0.1
	lbs	0.0001	0.0001	0.001	0.001	0.001	0.01	0.01	0.01	0.1
Indication error		0.50%
Unit		N / kg / lb
Data interface		Rs232 nine-hole socket
Power		rechargeable batteries, charger(charging voltage 100V-240V)
Sensor structure		S-tye sensor with high precision (inner sensor)
Ambient temp.		5° C~35° C
Transport temp.		-10 C~60° C
Relative humidity		15%~80%RH
Working conditions		No hypocenter and corrosive medium
Gross weight		~2000g
Size		273 x 182 x70 mm
