Detail Information

Output Connector:	Rs232 9-hole Socket	Power:	Rechargeable Battery Charger (charging Voltage 100V～240V)
Operating Temp.:	5℃～35℃	Transport Temp.:	-10℃～60℃
Relative Humidity:	15%～80%RH	Operation:	No Vibration Focus And Corrosive Media Around
Net Weight:	5kg
High Light:	spring compression tester , torsion testing machine

Product Description

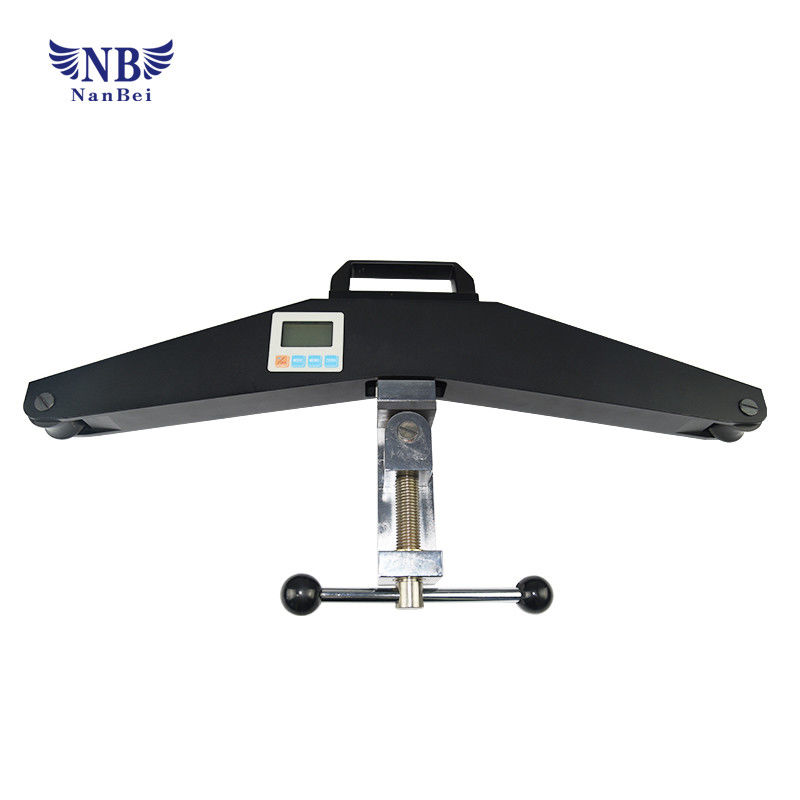

ASZ-20 Physical Testing Instrument Digital Wire Rope Tension Meter

Digital wire rope tension meter,belt tension meter,wire tension meter

ASZ-20 Physical Testing Instrument Digital Wire Rope Tension Meter with CE 0

Function of wire tension meter

ASZ Rope Tension Testing Instrument can be applied to various occasions, such as power industry, telecommunications industry, transportation industry, glass curtain wall decoration, ropeway industry, construction industry, pleasure grounds, tunnel construction, fishing, major research institutions and teaching institutions, testing institutions and other occasions involved with the tension of ropes and steel wire ropes.

Features of wire tension meter

1. It has the rope structure with tension force, and can be measured directly without the need of being taken apart.

2. It has the light weight, simple structure, convenient operation, and applies to any situations.

3. It has the stable performance, high measurement accuracy, with automatic system compensation function.

When the specification of the tested rope is the same as the rope tension testing instrument rope number, the measurement accuracy can reach 2% error or less within the rated measurement range.

4. It has broader range of measurement, with 15 kinds of rope-diameter measuring functions.

5. Applied range: applied to flexible, stretched ropes, such as various steel wire ropes, high-strength ropes, etc.

6. Accuracy grade: 2～6% of maximum function (depending on the rope form and features).

7. Rope Diameter: ￠6～￠40mm.

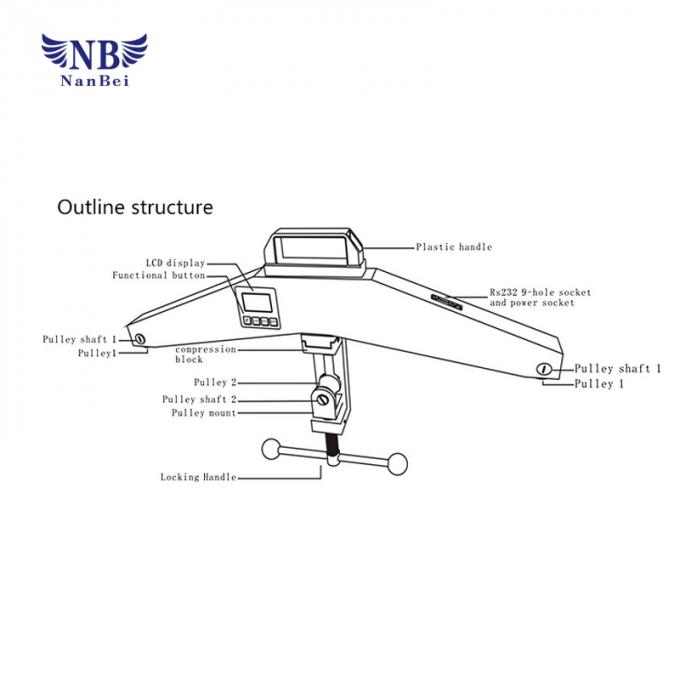

Physical Form and Structure

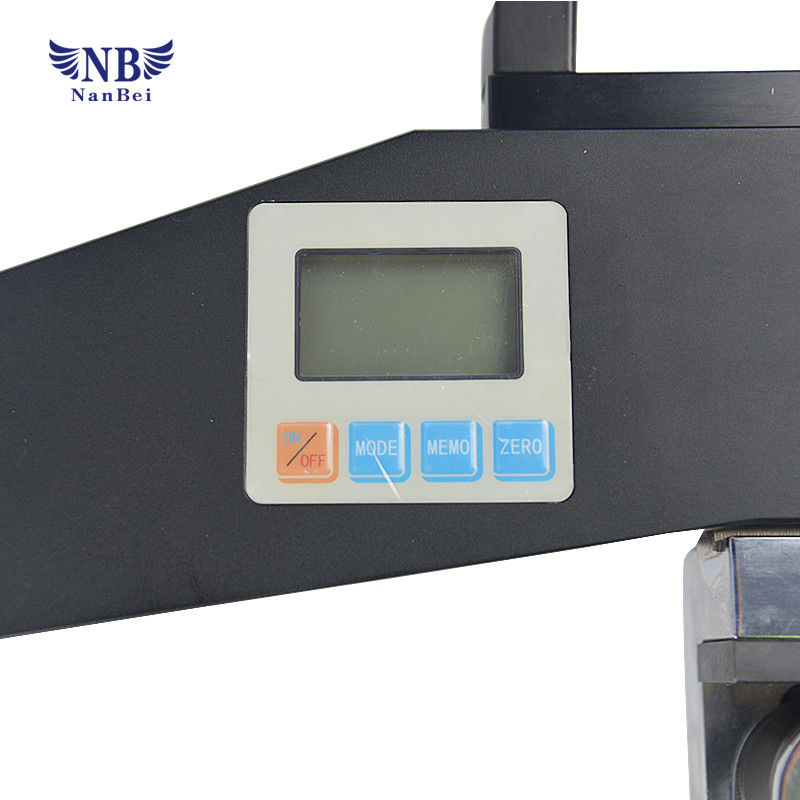

1. function keys 2. LCD screen 3. handle 4. Rs232 9-hole socket and power socket

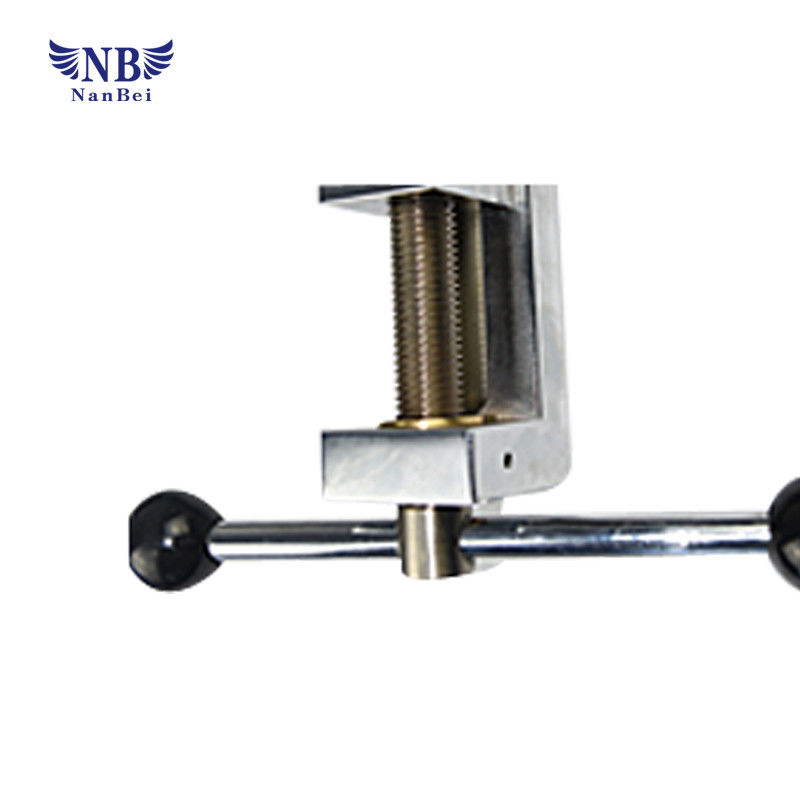

5. support seat 6. positioning block 7. locking block 8. hand wheel

Specification parameters of model

ASZ-20 Physical Testing Instrument Digital Wire Rope Tension Meter with CE 1

model	ASZ-20	ASZ-50	ASZ-100	ASZ-200
maximum load value (KN)	20	50	100	200
Divided load value (KN)	0.01	0.01	0.1	0.1
output connector	Rs232 9-hole socket
power	rechargeable battery charger (charging voltage 100V～240V)
operating temp.	5℃～35℃
transport temp.	-10℃～60℃
relative humidity	15%～80%RH
operation	No vibration focus and corrosive media around
net weight	5kg
dimensions	650×375×100mm
