Physical Testing Instrument - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	ANJ- 30

Minimum Order Quantity:	1set
Price:	USD1000-USD1825/set
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…

Detail Information

Dimension:	645mm×420mm×220mm	Check Length Range:	150mm~450mm
Width Stroke:	210mm	Height Stroke:	90mm
Accuracy:	±1%	Peak Sampling Frequency:	2000HZ
Power:	7.2V 1.2V×6 Ni-MH Rechargeable Battery Pack	Charging Time:	4~6 Hours
High Light:	spring compression tester , torsion testing machine

Product Description

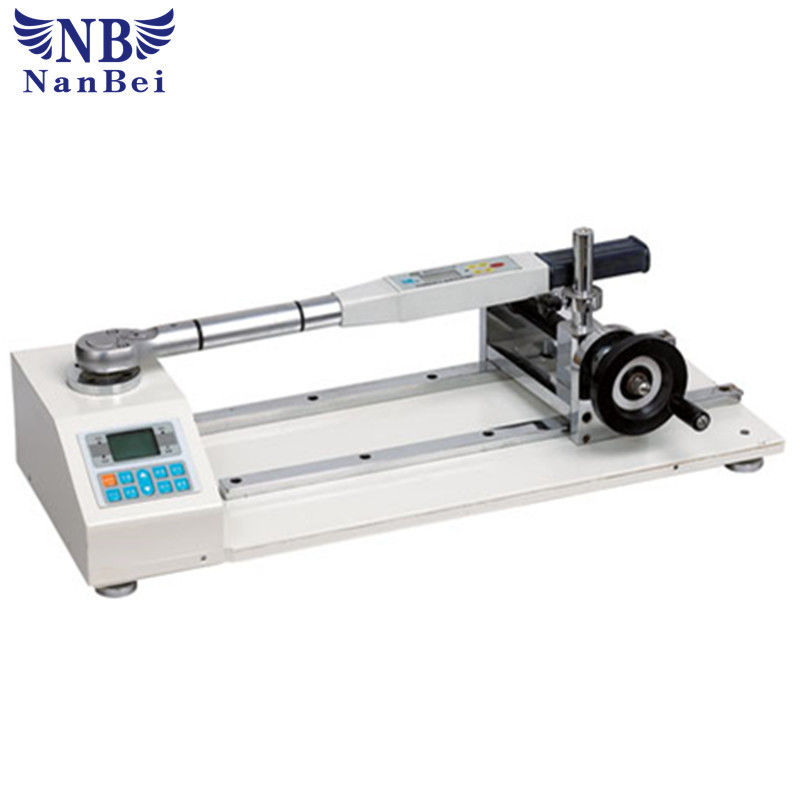

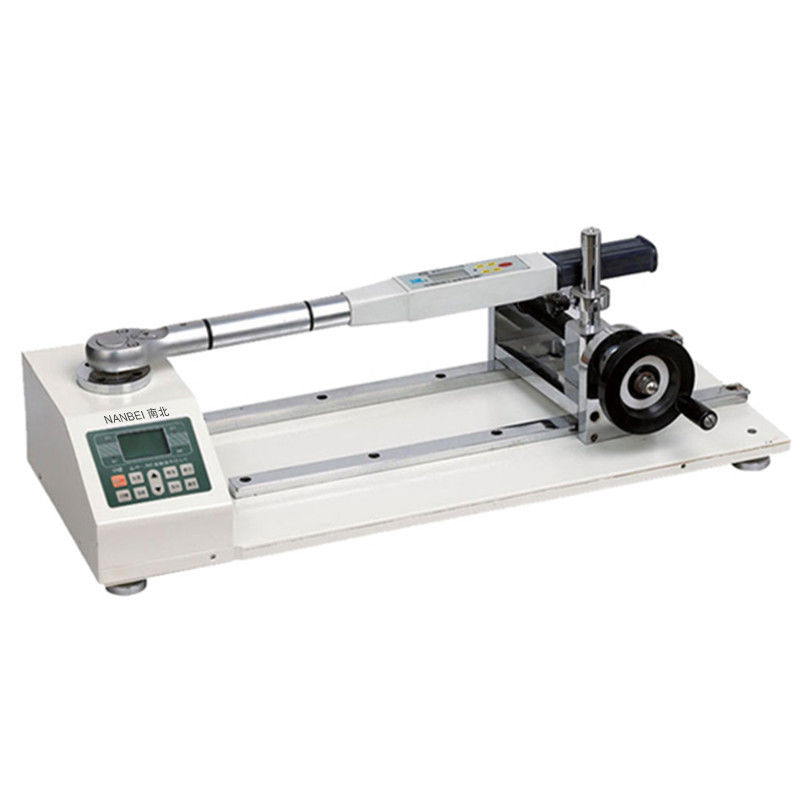

Calibration Physical Testing Instrument Digital Torque Wrench Tester

Hot sale digital torque wrench tester for calibration

ANJ torque wrench tester is a special device for testing torque wrench and torque screwdriver. It is mainly used to detect various kinds of torque wrenches, digital torque wrenches, preset torque wrenches, torque screwdrivers, screwdrivers and so on. Of the instruments and products. Widely used in electrical manufacturing, machinery manufacturing, automotive light industry, professional research and testing industry.

main feature

1. High precision, high resolution, sampling speed, full screen display.

2. The use of high-precision torque sensor, with torque direction display.

3. The upper and lower limits of the set, red and green lights and Feng Ming sound and light alarm.

4. The three units are converted to each other (N · m, kg · cm, Ib · in).

5. Real-time, peak, automatic peak three modes can be free to switch.

6. Using USB interface to communicate with the PC, synchronization test function can be connected to computer testing, computer synchronization display test curve and test the test process of detailed records, and do save, print and other analysis.

7. Peak hold, auto release function, release time free setting.

8. Storage capacity, can save 1000 sets of test data.

9. No operation automatic shutdown function, the time can be set freely.

2000HZ Calibration Physical Testing Instrument Digital Torque Wrench Tester 0

Model		ANJ-30	ANJ-50	ANJ-100	ANJ-200	ANJ-300	ANJ-500	ANJ-1000
Measurement range / scale value	N.m	30.000/0.001	50.000/0.001	100.00/0.01	200.00/0.01	300.00/0.01	500.00/0.01	1000.0/0.1
	Kgf.cm	306.31/0.01	510.52/0.01	1021.0/0.1	2042.0/0.1	3063.1/0.1	5105.2/0.1	10210/1
	lbf.in	265.86/0.01	443.11/0.01	886.2/0.1	1772.4/0.1	2658.6/0.1	4431.1/0.1	88622/1
Dimension		645mm×420mm×220mm		1050mm×540mm×300mm				1433mm×685mm×360mm
Check length range		150mm~450mm		150mm~870mm				150mm~1200mm
Width stroke		210mm		330mm				450mm
Height stroke		90mm		140mm
Accuracy		±1%
Peak sampling frequency		2000HZ
Power		7.2V 1.2V×6 Ni-MH rechargeable battery pack
Charging time		4~6 hours
Battery continuous use of time		About 10hours
Battery Life		≥300times
Net Weight		25kg
Power Adapter		Input:AC220V50HZ output:DC10V300mA
Net Weight		30kg		55kg				110kg
