Physical Testing Instrument - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	ADN-5

Minimum Order Quantity:	1set
Price:	USD1912-USD3441/set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:	500 set/per day

Detail Information

Maximum Speed:	6000rpm	Accuracy:	±1%
Power Supply:	±15VDC	Torque Accuracy:	＜±0.5%F•S、＜±0.35%F•S、＜±0.1%F•S3
Frequency Response:	100μs	Nonlinear:	＜±0.2%F•S
Zero Drift:	＜±0.2%F•S/10℃	Insulation Resistance:	5000MΩ
High Light:	spring compression tester , torsion testing machine

Product Description

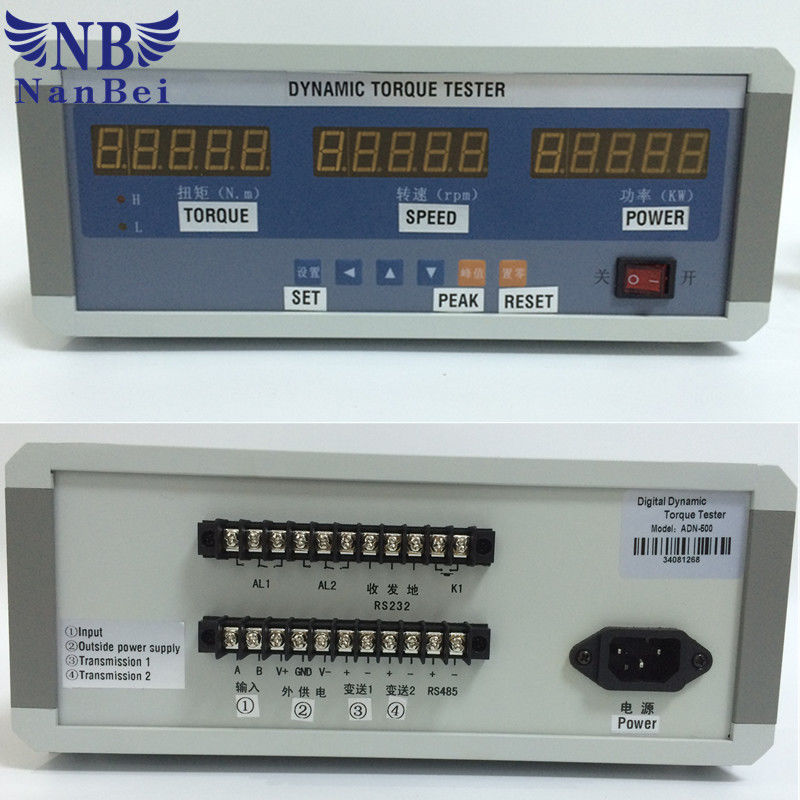

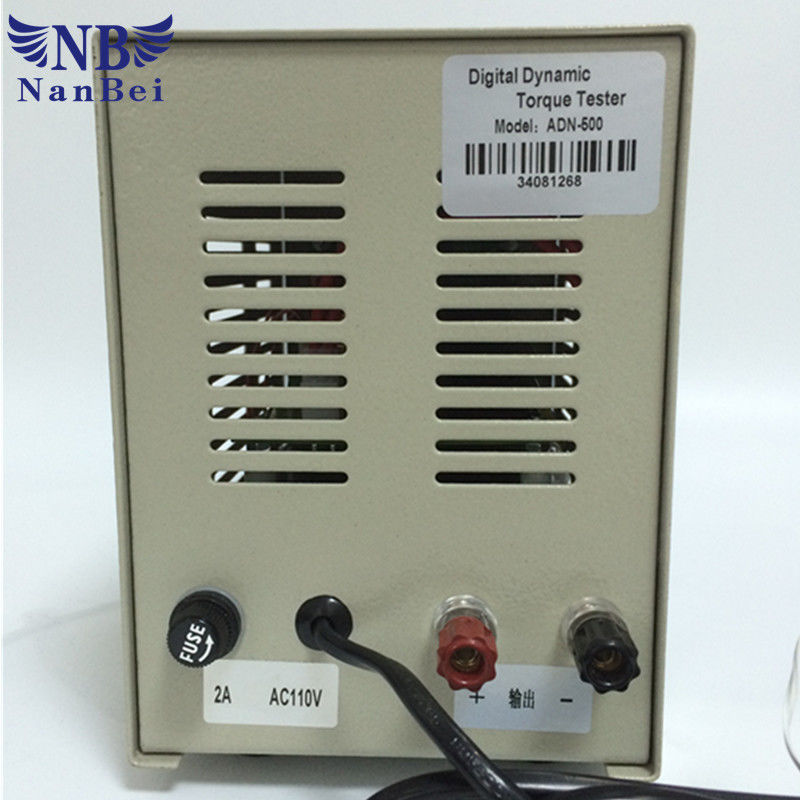

Electric Dynamic Torque Meter Digital Display For Ac Torque Motor

Electric dynamic torque meter for ac torque motor,digital display,dynamic analysis for motor

product description:

ADN series of dynamic torque tester is to test and detect a variety of dynamic torque design and manufacture of an intelligent design equipment.

Usage and Application

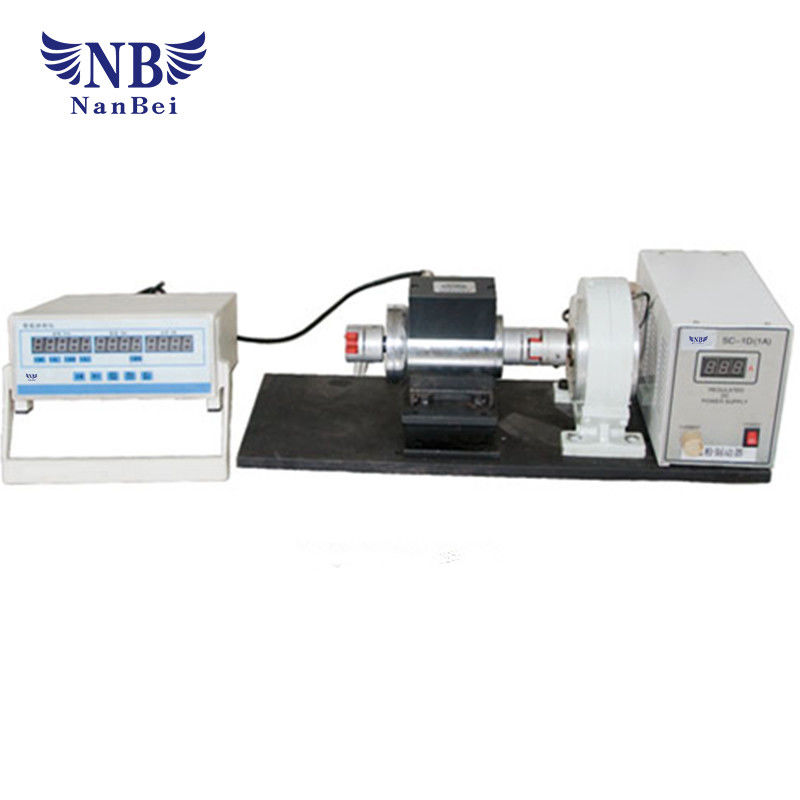

Used to detect a variety of motors, reducer output torque, speed, power of high-precision test equipment. Widely used in a variety of motors, machinery manufacturing, scientific research institutions and other industries.

Features of Torque Motor

1. the signal output waveform square wave amplitude optional 5V / 12V.

2. boot 5 minutes to enter the working state, without preheating process.

3. high precision detection, good stability, strong anti-interference.

4. without repeatedly zero to continuously measure the positive and negative torque.

5. small size, light weight, easy to install.

6. the sensor can be used independently from the secondary instrument, as long as the socket pin to provide ± 15V (200mA) power supply.

7. you can output impedance and torque is proportional to the square wave or pulse wave frequency signal.

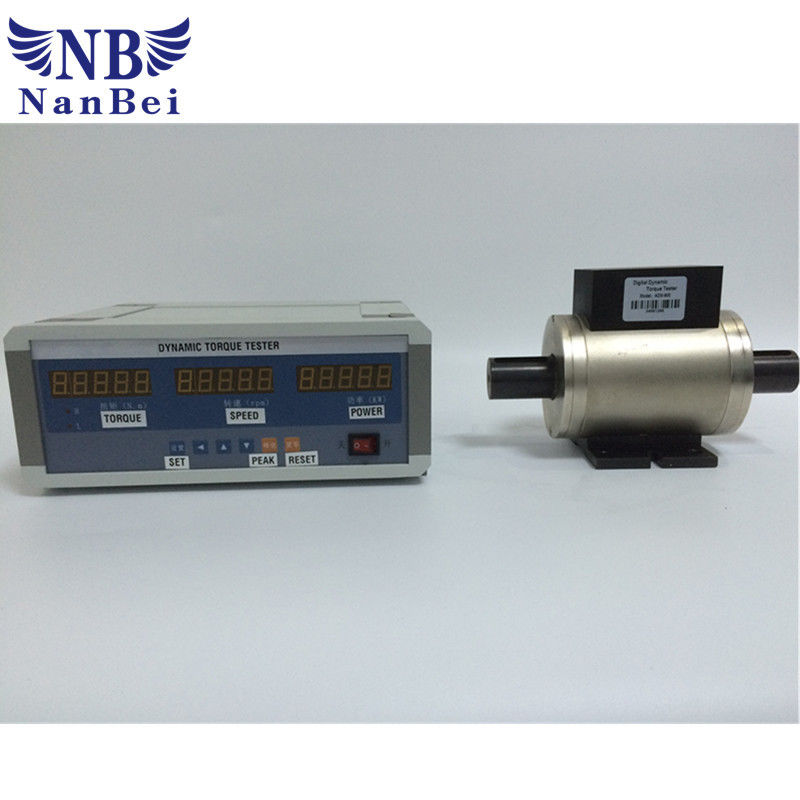

6000rpm Electric Dynamic Torque Meter Digital Display For Ac Torque Motor 0

Model	ADN-5	ADN-10	ADN-20	ADN-30	ADN-50
Max load value	5N•m	10N•m	20N•m	30N•m	50N•m
Load division value	0.001N•m	0.01N•m
Maximum speed	6000rpm
Accuracy	±1%
Power supply	±15VDC
Torque accuracy	＜±0.5%F•S,＜±0.35%F•S,＜±0.1%F•S3
Frequency Response	100μs
Nonlinear	＜±0.2%F•S
Importance	＜±0.1%F•S
Backlash	＜±0.1%F•S
Zero when the drift	＜±0.2%F•S
Zero drift	＜±0.2%F•S/10℃
Output impedance	350Ω±1Ω,700Ω±3Ω,1000Ω±5Ω(option)
Insulation resistance	5000MΩ
Static Overload	120%,150%,200%(option)
Operating temperature	-10～50℃
Storage temperature	-20～70℃
Voltage	±15V±5%
