2L/H Lab Spray Dryer , Small Scale Spray Drying Machine 30c-280c Temp Of Inlet Air

Basic Information
Place of Origin:China
Brand Name:NANBEI
Certification:CE,ISO
Model Number:SP-1500
Minimum Order Quantity:1set
Price:USD4100-USD6200/set
Packaging Details:Wooden cases and cartons
Delivery Time:7-10days
Payment Terms:TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:500 set/per day
Detail Information
Name:Lab Spray DryerUsage:Make Milk, Coffee Or Other Liquid Into Powder
Capacity:1500-2000ml/HTemp. Of Inlet Air:30c-280c
Temp. Of Outlet Air:40c -120cDryer Time:1.0-1.5s
Nozzle Size:0.7mm Standard, With OptionalPower:3.5kw 220V
Spray Direction:Downwards Co-CurrentSpray Pressure:2-5bar
Consume Of Spray Air:0-4.2m3/HMax Pressure:686PA
High Light:

laboratory scale spray dryer

,

lab scale spray dryer


Product Description



2L/H Lab Spray Dryer , Small Scale Spray Drying Machine 30c-280c Temp Of Inlet Air

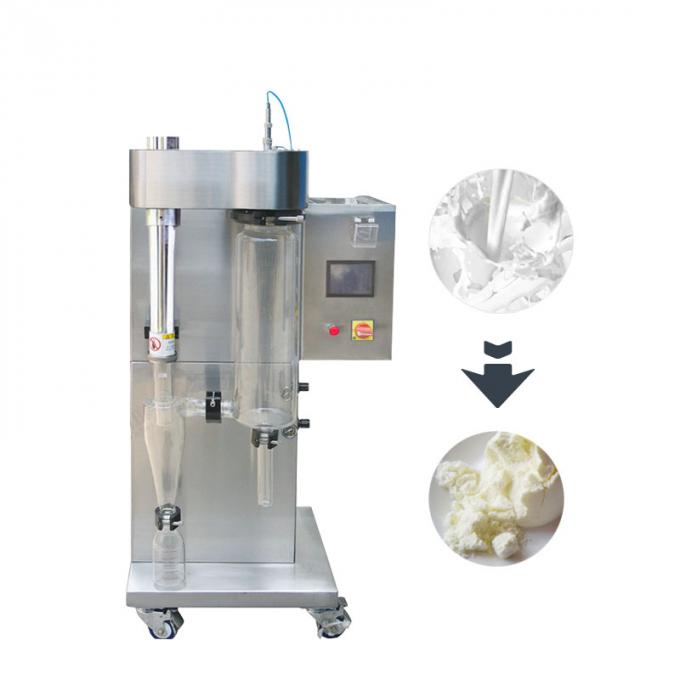

2L/H Lab Spray Dryer , Small Scale Spray Drying Machine 30c-280c Temp Of Inlet Air 0

NBSP-1500 lab scale spray dryer

SP-1500 lab scale spray dryer is our latest type which is the result of our constant innovation in this field of laboratory scale spray drying systems through longtime cooperation between Witlab and Shanghai JiaoTong university. It assembles many of new design, for example, small shape for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and function are controlled by PLC, English language.



APPLICATION:
various fields where the production of a free powder sample is required.
NBSP-1500 has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts, Pharmaceuticals, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.



FEATURES
1. Special for lab research, Min 20-30ml liquid to finish one test.

2. All borosilicate glass for easy visual monitoring of process status.

3. Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment.
4. Easy to clean and very simple to assemble and break down.
5. The air compressor is no oil and don’t pollute compress air. The sound is low than 50db and following the GMP understands.

6. inlet/outlet temperature is accurate controlled by PID

7. The unit is self contained and supplied complete and ready for immediate operation.

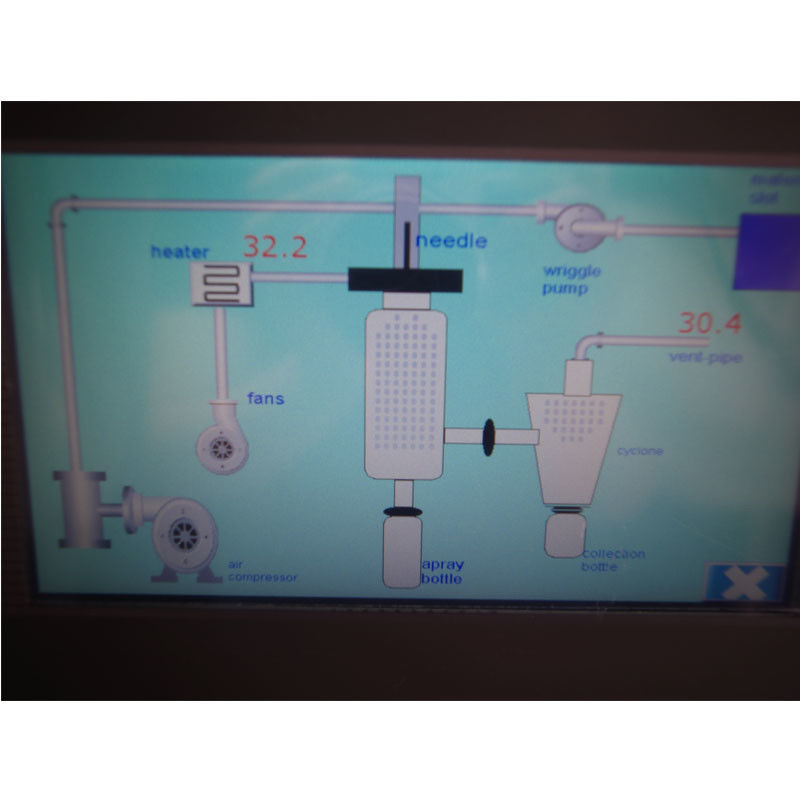

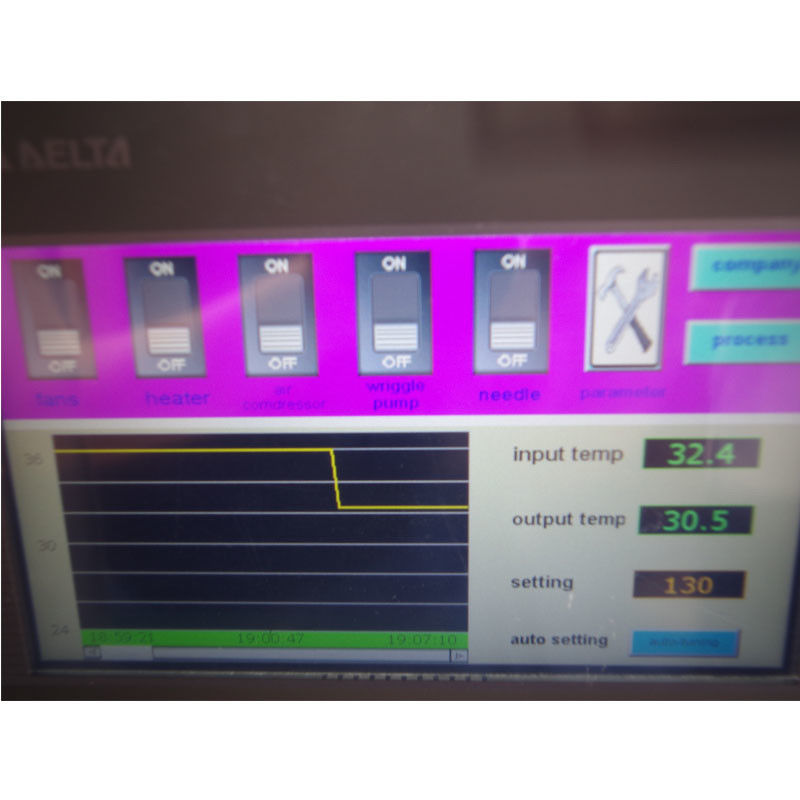

8. Using screen touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency.

9. Product feeding with RS2559605 rotary pump, capacity is adjustable

10. Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.

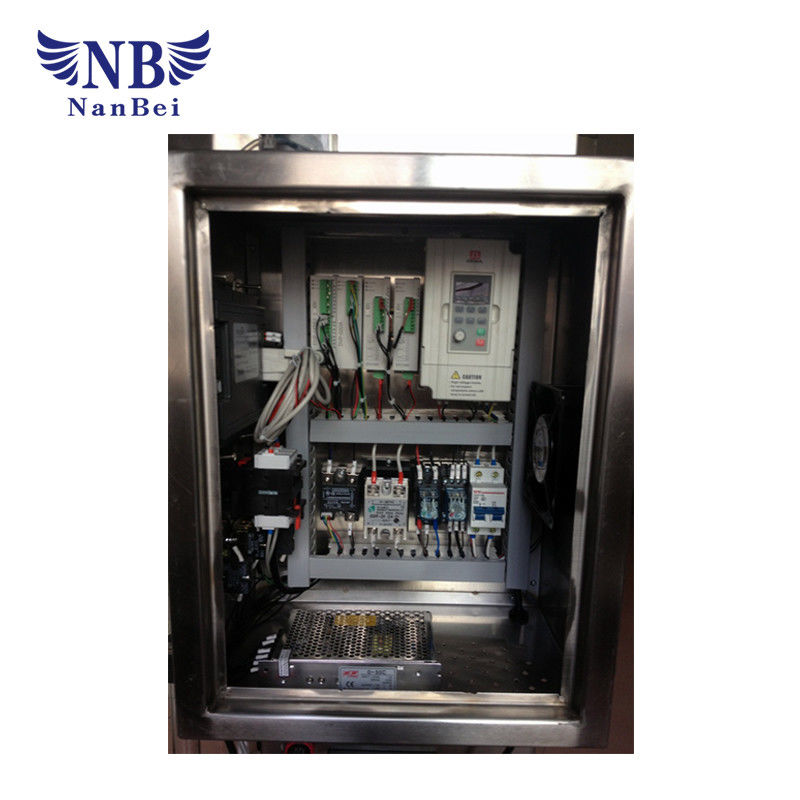

2L/H Lab Spray Dryer , Small Scale Spray Drying Machine 30c-280c Temp Of Inlet Air 1

ModelSP-1500
Max capacity1500-2000ml/h
Temperature range of Inlet air30℃ -280℃
Temperature range of outlet air40℃ -120℃
Precision of temperature± 1 ℃
Dryer time1.0-1.5 S
Speed of squirmy pump30-2000ml/h,
Consume of dryer air0-330m3 /h, max pressure: 686Pa
Consume of spray air0-4.2m3 /h, spray pressure: 2-5bar
Spray system

standard 0.7mm jet

options of 0.5/1.0/1.5/2.0/2.5mm

Spray directiondownwards co-current
Power3.5KW 220V
Dimensions650×500×1550 ( mm ) L x W x H
