Vacuum Small Laboratory Scale Spray Dryer For Milk And Coffee

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: SP-1500
Minimum Order Quantity: 1set
Packaging Details: Wooden cases and cartons
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability: 500 set/per day
Detail Information
Usage: Make Milk, Coffee Or Other Liquid Into Powder Capacity: 1500-2000ml/H
Temp. Of Inlet Air: 30c-280c Temp. Of Outlet Air: 40c -120c
Dryer Time: 1.0-1.5s Nozzle Size: 0.7mm Standard, With Optional
Power: 3.5kw 220V Spray Direction: Downwards Co-Current
High Light:

small spray dryer


lab scale spray dryer

Product Description

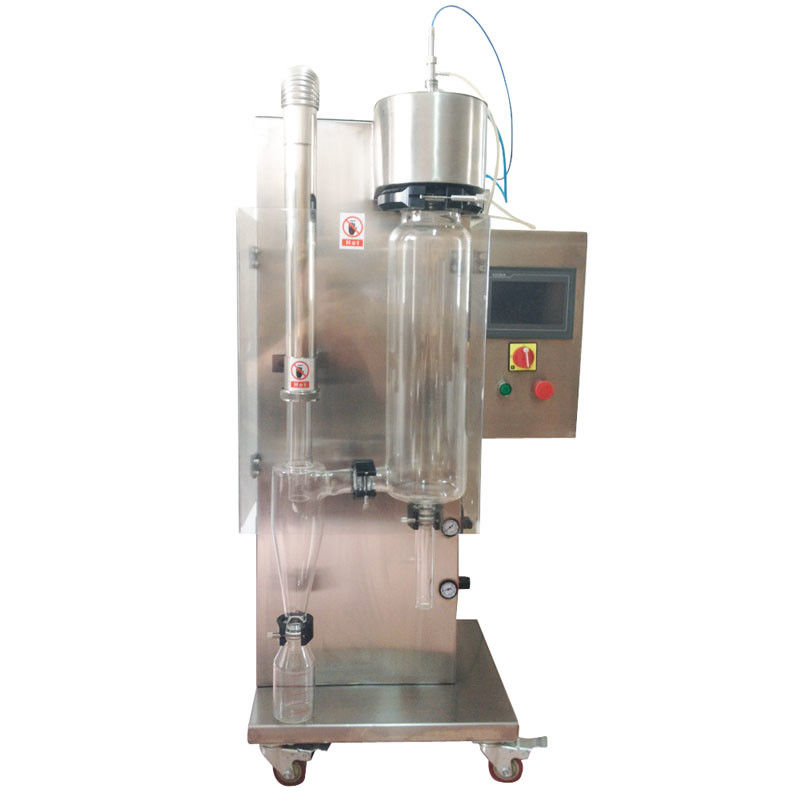

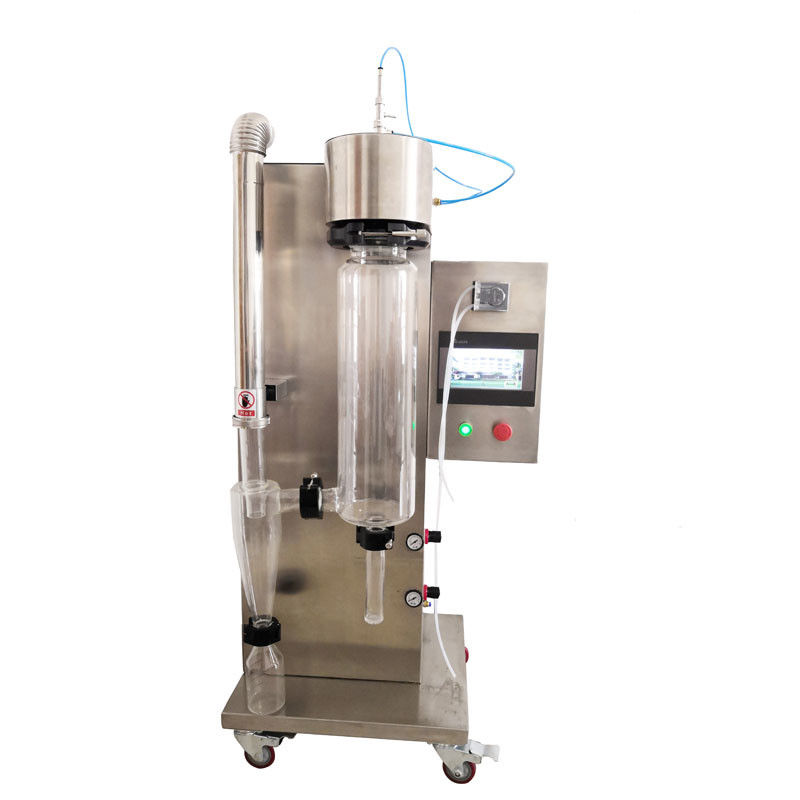

Vacuum Small Laboratory Scale Spray Dryer For Milk And Coffee


Vacuum Small Laboratory Scale Spray Dryer For Milk And Coffee 0

1, Special for lab research, Min 20-30ml liquid to finish one test
2, All borosilicate glass for easy visual monitoring of process status.
3, Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment.
4, Easy to clean and very simple to assemble and break down.

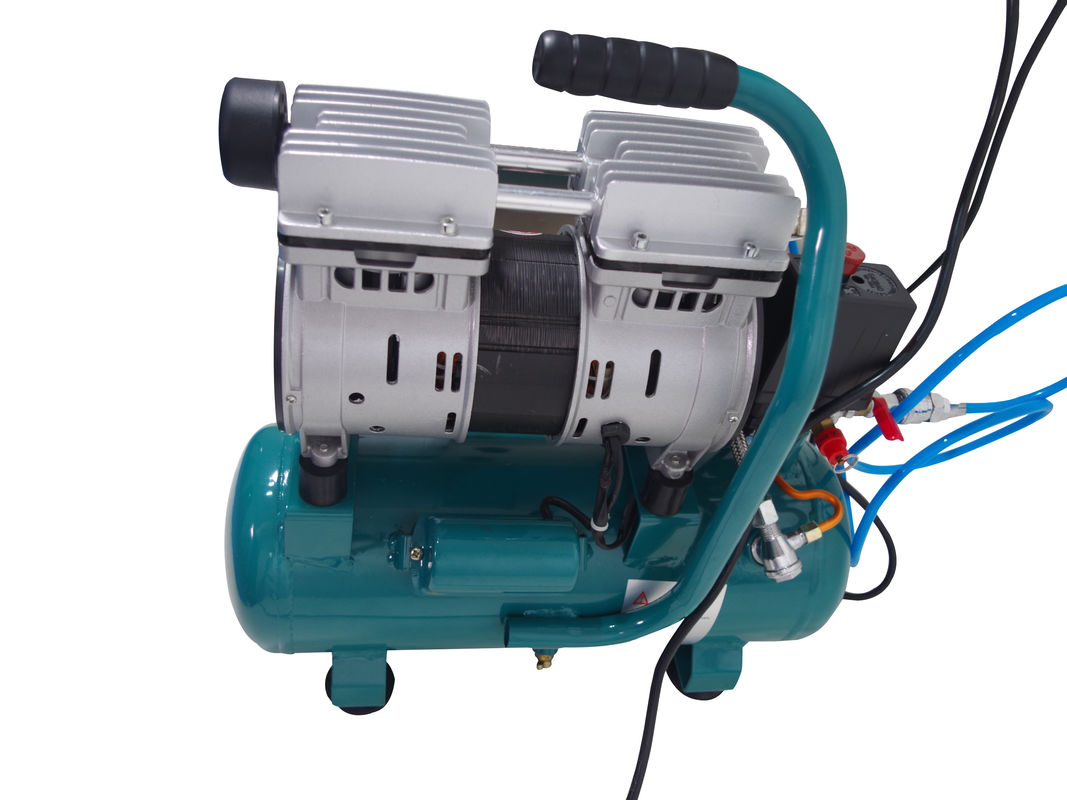

5, The air compressor is no oil and don't pollute compress air. The sound is low than 50db and following the GMP understands.



SP-1500 lab scale spray dryer is our latest type which is the result of our constant innovation in this field of laboratory scale spray drying systems through longtime cooperation between Witlab and Shanghai JiaoTong university. It assembles many of new design, for example, small shape for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and function are controlled by PLC, English language.

various fields where the production of a free powder sample is required.
SP-1500 has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts, Pharmaceuticals, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.

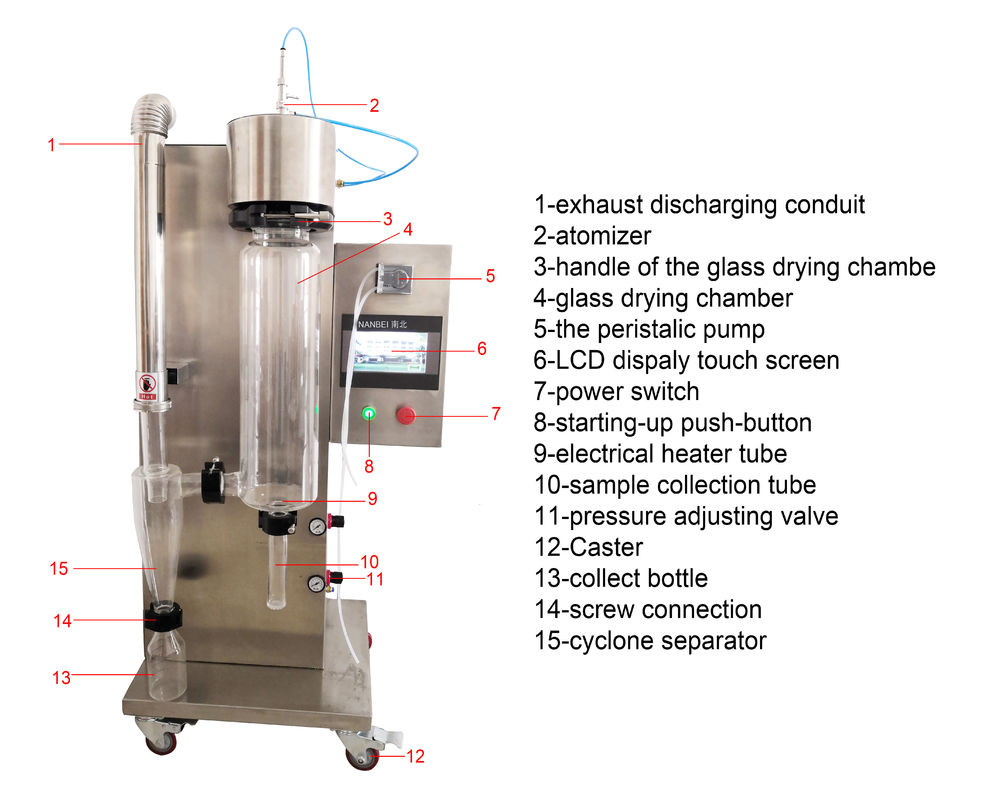

Vacuum Small Laboratory Scale Spray Dryer For Milk And Coffee 1


Model SP-1500
Max capacity 1500-2000ml/h
Temperature range of Inlet air 30ºC -280ºC
Temperature range of outlet air 40ºC -120ºC
Precision of temperature ± 1 ºC
Dryer time 1.0-1.5 S
Speed of squirmy pump 30-2000ml/h,
Consume of dryer air 0-330m3 /h, max pressure: 686Pa
Consume of spray air 0-4.2m3 /h, spray pressure: 2-5bar
Spray system 2 liquid nozzles with standard 0.7mm jet
options of 0.5/1.0/1.5/2.0/2.5mm
Spray direction downwards co-current
Power 3.5KW 220V
Dimensions 650×500×1550 ( mm ) L x W x H



NB-1500 Spray dryer standard list:

No. Name Specification Model Brand No, Unit Manufacture
1 Touch scree 5.7inch NS5-3Q00B-ECV2 MCGS 1 set Germany
2 PLC Analog Integrated CP1H-XA40DT-D MCGS 1 set Germany
3 Transducer Single-phase FR-S520SE-0.4K-CHT MCGS 1 set Germany
4 Pressure fan   LS-100 TIDA 1 set Taiwan
5 Air Compressor   HY-100 ZIBO 1 set Korea
6 DC 20rmp 255-9627 RS 1 piece UK
7 Peristaltic pump head 102R 330-812 RS 1 Piece UK
8 Temperature module (thermoelectric temperature transmitter) PT100/4-20mA DZ-4130 Shanghai Suotu 2 pieces China
9 Temperature Sensor   PT100 Xuanrong 2 Pieces Taiwan
10 Intermediate relay With seat belt RM2S-UL-DC24V Hequan 4 Piece Japan
11 Solid State Relays 2P DC24V SR-D2525 Xuanrong 1 Piece Taiwan
12 Miniature Circuit Breakers     Schneider 1 Piece Germany
13 Solenoid valve Two five-way 180-4E1-PLL-DC24V Koganei 1 piece Japan
14 DC motor speed control module   DTS-V-10A-24 Shanghai Floic 1   China
15 Switching Power Supply   T50D Mingwei 1 Piece Taiwan
16 Load Switch 32A V1055169+ Schneider 1 set Germany
17 Vertical joints   PL0601 Sang-A 2 set Korea
18 Silencer PT1/8   Sang-A 2 piece Kores
19 Glass collection bottle 500ML   Zhengzhou Nanbei 1 Piece China
20 Glass spray chamber     Zhengzhou Nanbei 1 Piece China
21 Cyclone     Nanbei 1 Piece China
22 Collection tube 150ML   Nanbei 1 Piece China
23 Chassis     Nanbei 1 Set china
