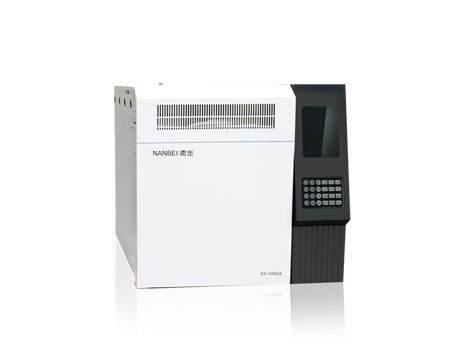

Gas Chromatographs for Mask Ethylene Oxide Residue Detection

Main features

-Five detectors to choose (TCD, FID, FPD, NPD, ECD)

-Unit-type overall structure design, convenient for installation and maintenance

-Large-volume column box, three chromatographic columns can be installed at the same time.

-The design of the instrument is reasonable and flexible, and any three detectors can be installed at the same time, and there are three independent circuit systems and three signal output terminals.

-Flexible packed column and capillary column system can be connected with capillary columns of different calibers.

-Stable temperature control system, 10-stage temperature program, sampler and each detector can be independently controlled temperature, and has over-temperature protection function.

The heating zone can be controlled by seven channels

-The host automatically ignites analysis through the workstation

-Strong expansibility, the instrument can be upgraded to GC/MS

Inlet: Magnetic fixed sampling system is adopted.

4. Detector

4.1. Hydrogen flame detector

4.1.1 Detection limit: M≤1×10-11 g/s (n-hexadecane)

4.1.2 Noise: ≤5×10-14A

4.1.3 Linear range: 107

4.1.4 Drift: 1×10-13 A/30min

Column thermostat

Oven volume: 300×300×200mm

Temperature range: room temperature +5℃-400℃

Overheating protection: any temperature within 400℃ can be set

Temperature control accuracy: 0.1℃

Heating program: 10 steps

Heating rate: 0-40°C/min (incremental 0.1°C/min)

The Quotation of Epoxy Acetylene Detection NB-4000A Gas Chromatographs

Packing and Shipping

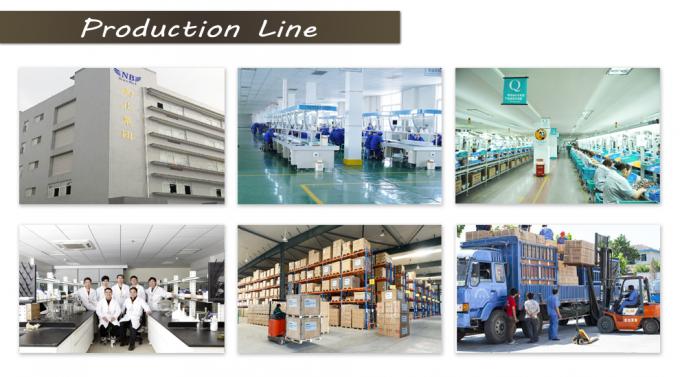

Factory Show

Certificate

Our Services
