Biotechnology Lab Equipment - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO,SGS
Model Number:	real-time PCR system

Minimum Order Quantity:	1/set
Price:	$20895
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 set/per day

Detail Information

Name:	Real-time PCR System	Sample Capacity:	96
Reaction Volume:	10-50 μl	Thermal Cycle Technology:	Peltier
Max. Heating/Cooling Rate:	6.0° C/s	Heating Temperature Range:	4 – 100 °C
High Light:	10μl Real Time PCR Machine , 715nm Real Time PCR Machine , 10μl qpcr system

Product Description

The description of real-time PCR system

As a necessary choice for quantitative analysis of molecular biology, real-time PCR system has been widely used in various fields such as scientific research, clinical detection and diagnosis, quality and safety testing, and forensic applications.

Up to 6 fluorescence detection channels allowing multiplex PCR.

Effectively reduce multi-color crosstalk and edge effect, no ROX correction required.

New optical scanning detection system

Innovative scanning method and time-resolved signal separation technology

Unique edge temperature compensation technology

User-friendly software

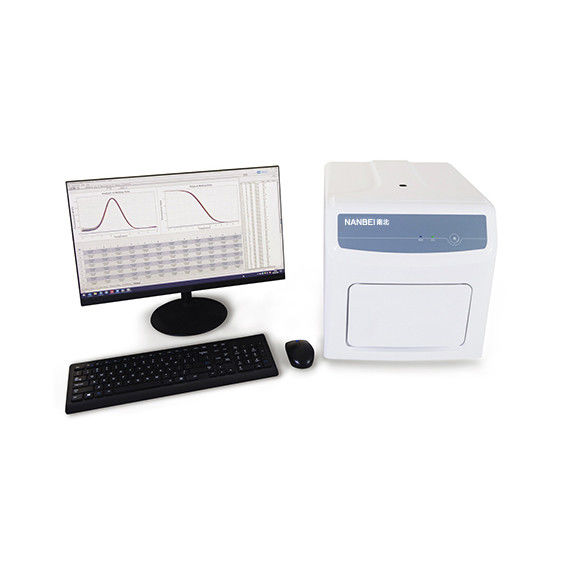

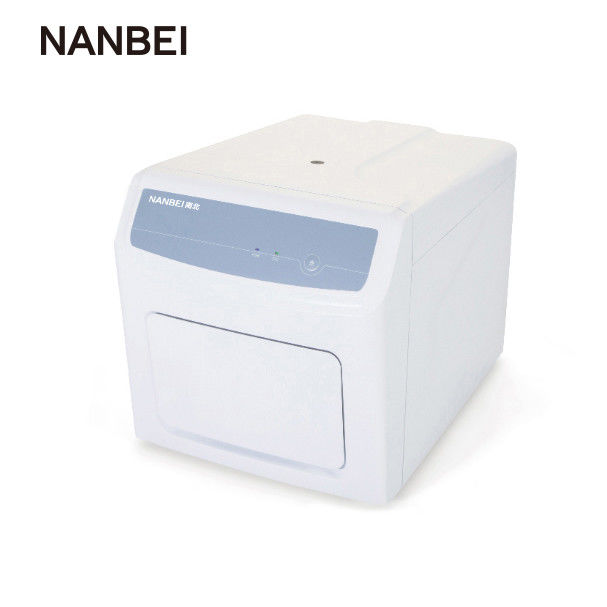

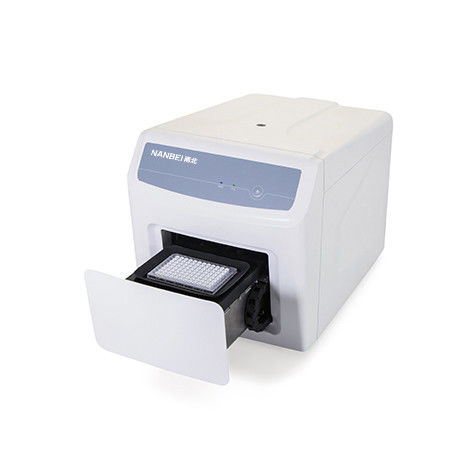

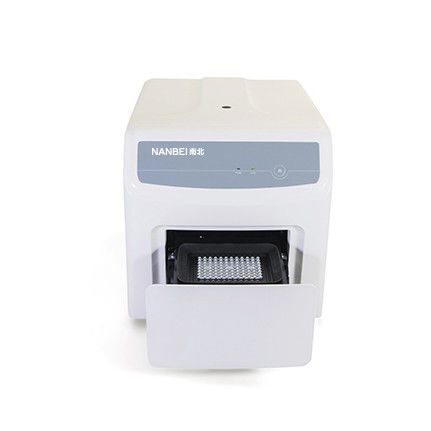

Laboratory Equipment 96 Well Real-Time PCR System Machine 0

Temperature control system
Sample capacity	96
Reaction volume	10-50 μl
Thermal cycle technology	Peltier
Max. Heating/Cooling rate	6.0° C/s
Heating temperature range	4 – 100 °C
Temperature accuracy	± 0.2°C
Temperature uniformity	±0.2℃ @60℃ , ±0.3℃ @95℃
Temperature gradient setting range	30–100°C
Temperature gradient difference setting range	1 – 36°C
Detection system
Excitation light source	4/6 monochrome high efficiency LEDs
Detection device	PMT
Detection mode	Time-resolved signal separating technology
Excitation/detection wavelength range	455-650nm/510-715nm
Fluorescent channels	4/6 channels
Supported dye	FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ
Sensitivity	Single copy gene
Resolution	1.33 folds copy number difference can be distinguished in single-plex qPCR
Dynamic range	10 orders of magnitude copies
