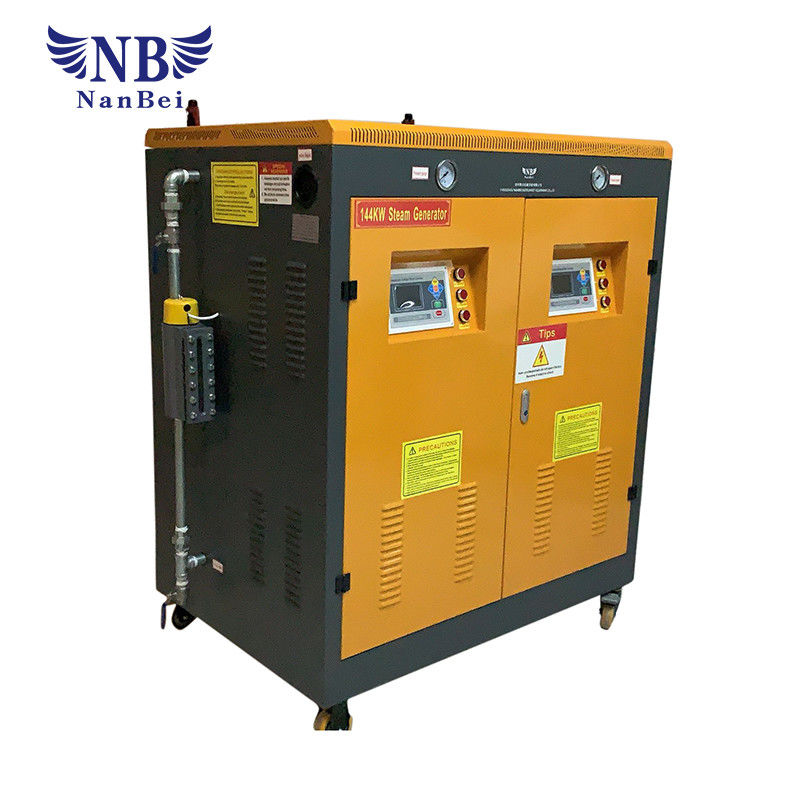

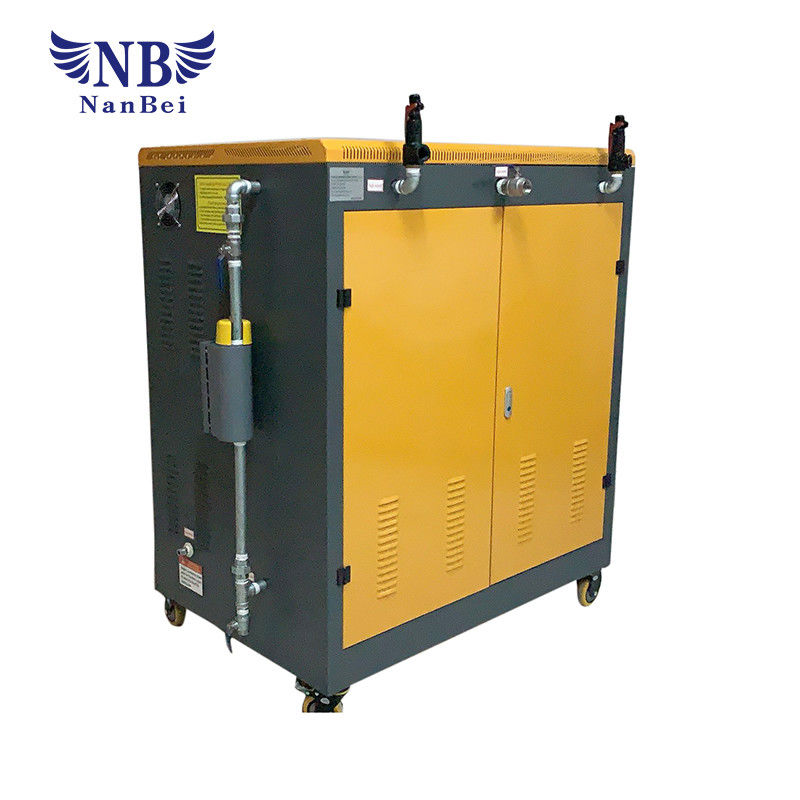

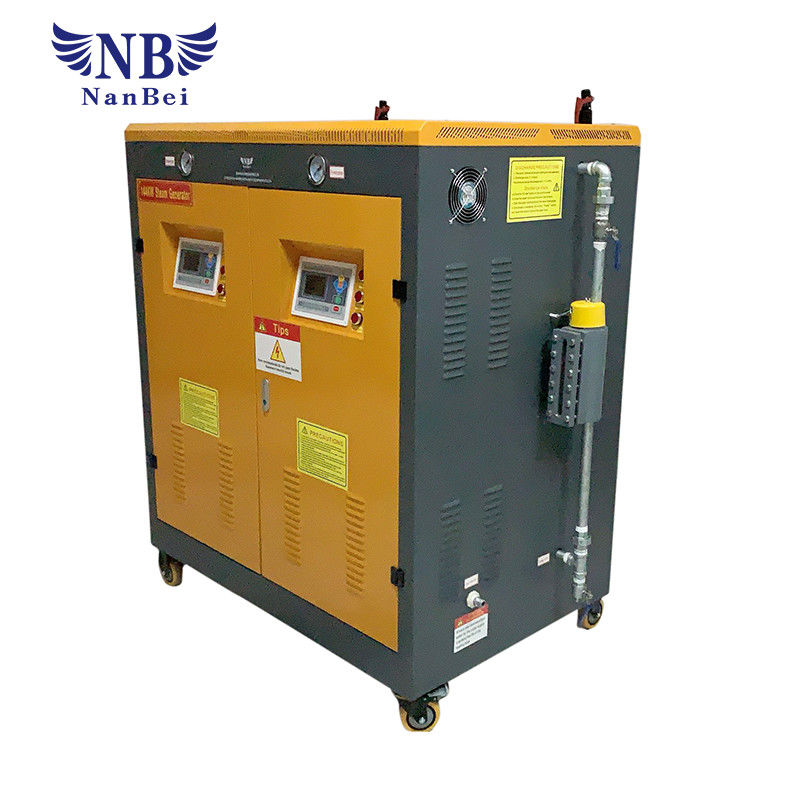

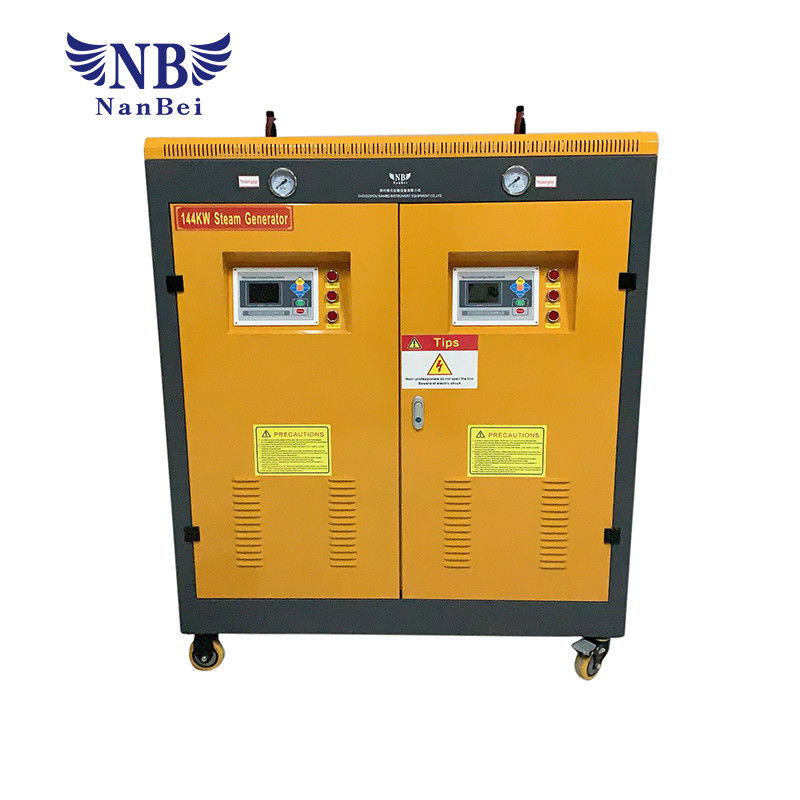

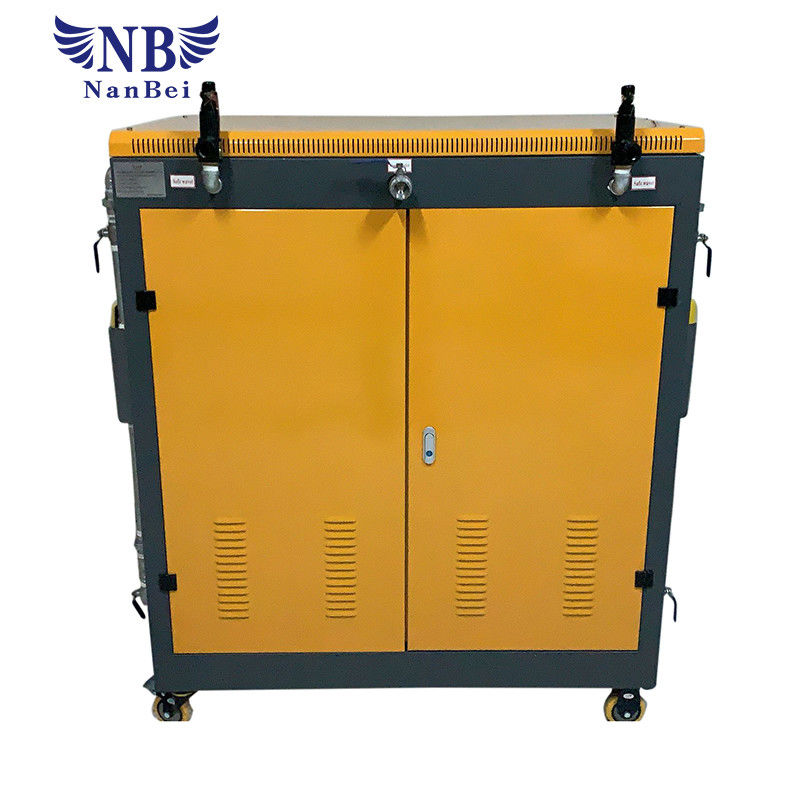

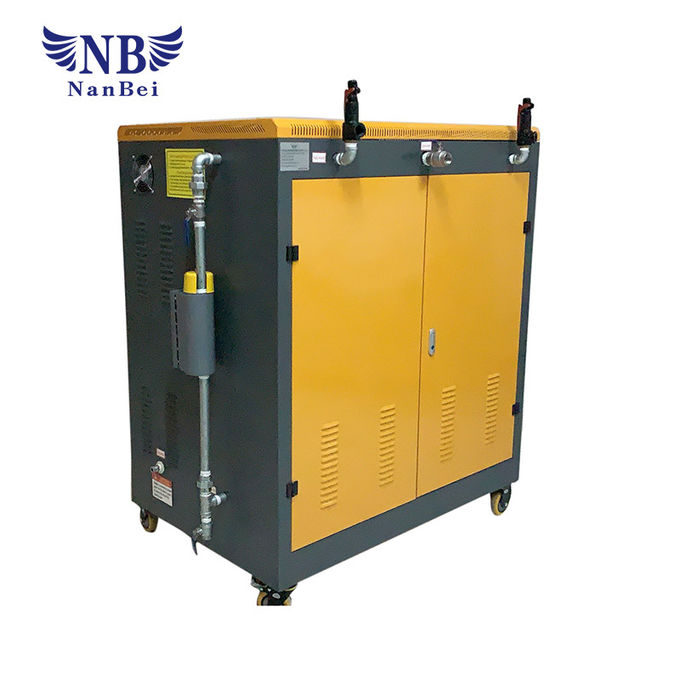

Electric Steam Generator DN25 200kg/H Biotechnology Lab Equipment

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: NB144KW
Minimum Order Quantity: 1/set
Delivery Time: 5-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Model: NB144KW Powder: 380V/50HZ
Rated Power: 144 KW Evaporation: 200kg/h
Using Fuel: Electric Saturating Temperature: 150 Celsius
Work Pressure: 0.4Mpa Steam Outlet: DN25
High Light:

DN25 steam power generator

,

200kg/H electric steam generator


Product Description

NANBEI Steam generator



Product features:

1. Unique internal structural design

The product volume is less than 30L, and it is not required to apply for boiler use certificate within the scope of national boiler exemption. The built-in steam-water separator solves the problem of steam-bearing water and ensures the high quality of steam. The electric heating tube is connected with the furnace body and the flange to facilitate replacement, repair and maintenance.

2. One-step electronic control system

The boiler operating system is fully automatic control, so the control parts are all concentrated on one computer control board. When the operation is completed, only water and electricity are connected. When the key is pressed, the boiler will automatically enter the fully automatic operation state, which is safer and more worry-free. .

3. Multiple chain security protection

The product is equipped with overpressure protection such as safety valve and pressure controller verified by boiler inspection; at the same time, it has low water level protection, and the boiler will automatically stop working when the water supply is stopped. Leakage protectors make the safety of operators and equipment more secure.4. Use electricity to be more environmentally friendly and more economical

The electric energy is absolutely free of pollution, and it is more environmentally friendly than other fuels. The use of low-valley electricity can greatly save the operating cost of the equipment.

Electric Steam Generator DN25 200kg/H Biotechnology Lab Equipment 0Electric Steam Generator DN25 200kg/H Biotechnology Lab Equipment 1Electric Steam Generator DN25 200kg/H Biotechnology Lab Equipment 2

1, Model NB144KW
2, Powder 380V/50HZ
3, Rated power 144 KW
4, Evaporation 200kg/h
5, Using fuel Electric
6, Saturating temperature 150 Celsius
7, Work pressure 0.4Mpa
8, Steam outlet DN25
9, Sewage caliber DN25
10, Packing Dimension 1530 x 940 x 1540mm
12, G W 370KG

The data:
