Biotechnology Lab Equipment - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE
Model Number:	NB-2032

Minimum Order Quantity:	1/set
Delivery Time:	7-10days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Model:	NB-2032	Sample Throughput:	1-32
Processing Volume:	30-1000ul	Magnetic Bead Recovery Rate:	> 95%
Number Of Magnets:	32
High Light:	95% automated nucleic acid purification , Lab automated dna rna extraction system

Product Description

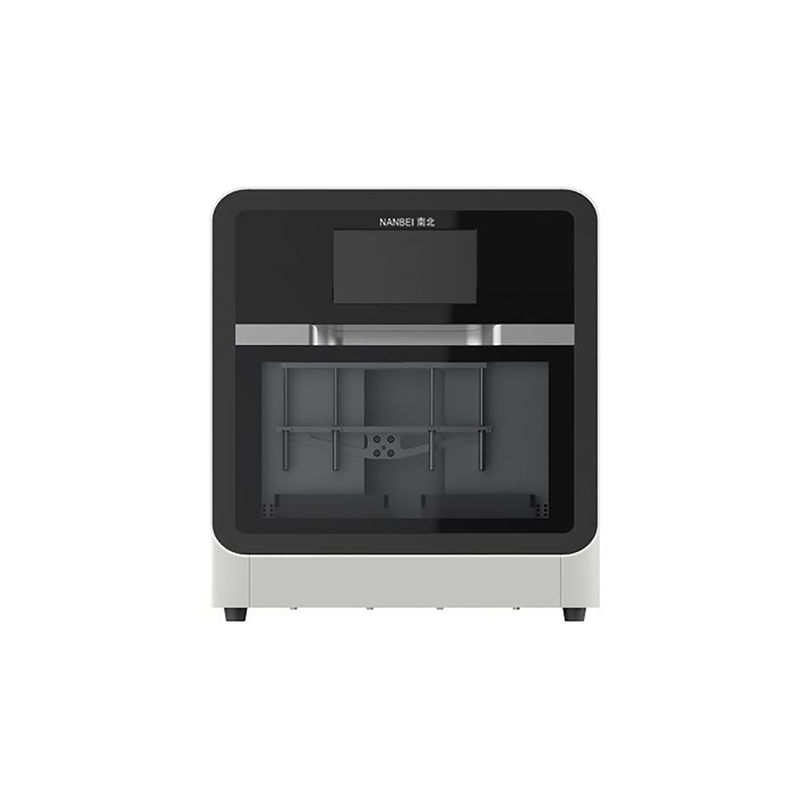

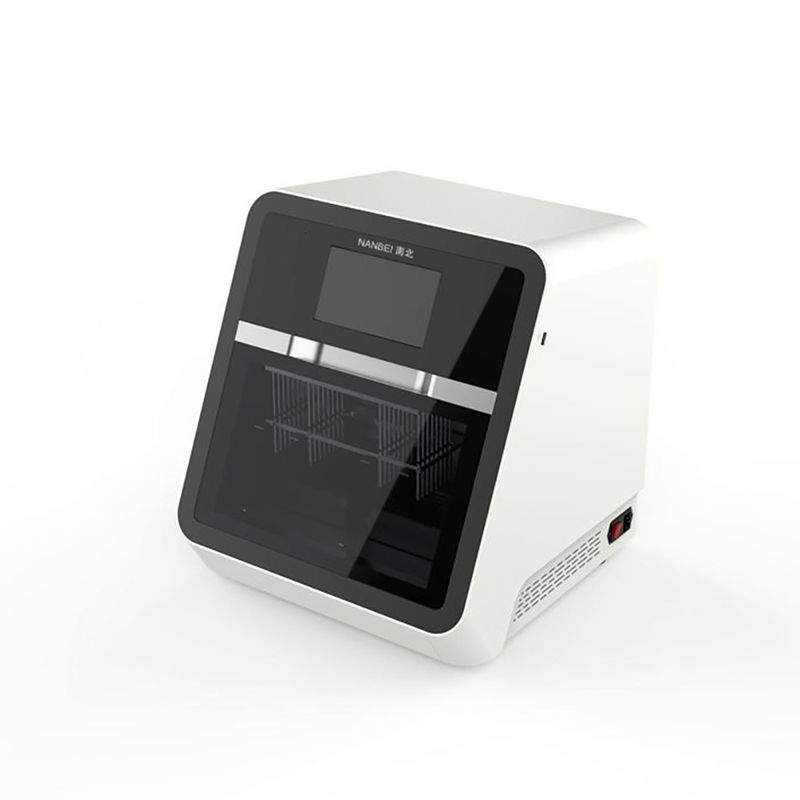

NB-2032 Auto Nucleic Acid Purification System

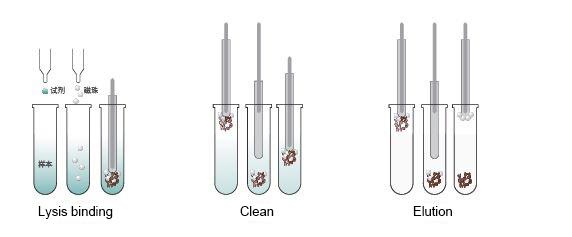

Working principle Use the magnetic rod on the magnetic rod holder in the machine to move the magnetic beads with adsorbed nucleic acids to different reagent tanks, and then use the magnetic rod sleeve placed on the outer layer of the magnetic rod to repeatedly move the liquid up and down to mix it evenly. Lysis, nucleic acid adsorption, washing and elution, to obtain the purest nucleic acid.

NB-2032 is a fully automatic nucleic acid extraction instrument launched by NANBEI based on the needs of clinical large-scale genetic analysis.

This machine uses magnetic bead separation technology, according to the selection of the appropriate kit to separate and purify nucleic acids in multi-source samples (such as blood, animal and plant tissues, cells).

The entire instrument has stable performance and low noise, and the operation is automated, fast and simple.

It can simultaneously purify 32 samples. A powerful "assistant" in clinical genetic testing and molecular biology laboratory research

Nucleic Acid Purification System Biotechnology Lab Equipment 0

Characteristics

lFast and efficient

●Purified nucleic acid purity can meet the needs of various downstream experiments

● Nucleic acid recovery rate> 95%, magnetic bead recovery rate> 95%

●Total extraction of 32 samples can be completed in about 20-40min (depending on reagents)

Safe and reliable

●Fully automatic operation with disposable consumables to reduce personnel contact

●Built-in regular UV disinfection, efficient cleaning

●Exhaust fan to effectively avoid aerosol pollution

●Prevent door opening alarm and automatically stop the movement structure during operation to ensure safe operation

Strong versatility

●Multi-speed and multi-module for selection, and can store 100 programs to meet different customer requirements

●Custom lysis and elution temperature

●Suitable for different samples, such as animal and plant tissues, serum, plasma, etc.

Flexible control

●Large screen full color display, touch operation, easy to use

● Customizable shortcut program, one-click startup

●Humanized observation window and display screen design, easy to operate

Parameters

Model	NB-2032
Sample throughput	1-32
Processing volume	30-1000ul
Magnetic bead recovery rate	> 95%
Number of magnets	32
Purification sensitivity Positive detection rate of 100 copies sample	> 95%
Purify the difference between pores	CV <3%
Consumables	96 deep well plate + magnetic rod sleeve
Cracking temperature	Room temperature to 120 ° C
Elution temperature	Room temperature to 120 ° C
Concussion mixing
Operation interface	7-inch touch screen, 8 shortcut program files
Internal program Preset	8 programs, can store 100 programs
