Model: | BSC-1100II B2-X | Internal Size(mm): | 900X600X600 |
---|---|---|---|
External Size(mm): | 1100X850X2200 | Tested Opening: | Safety Height ≤200mm |
Max Opening: | 400mm | Inflow Veldcity: | 0.53m/s |
Down Flow Velocity: | 0.53m/s | Pre-filter: | Washable |
High Light: |
Biologicaclass ii biosafety cabinet,Lab biological safety cabinet class 2 |

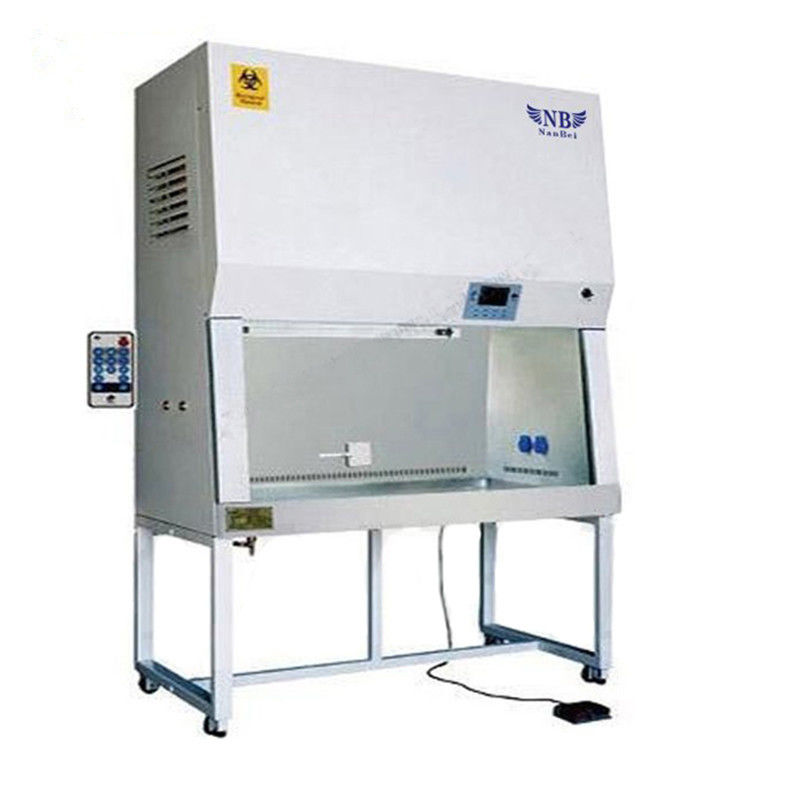

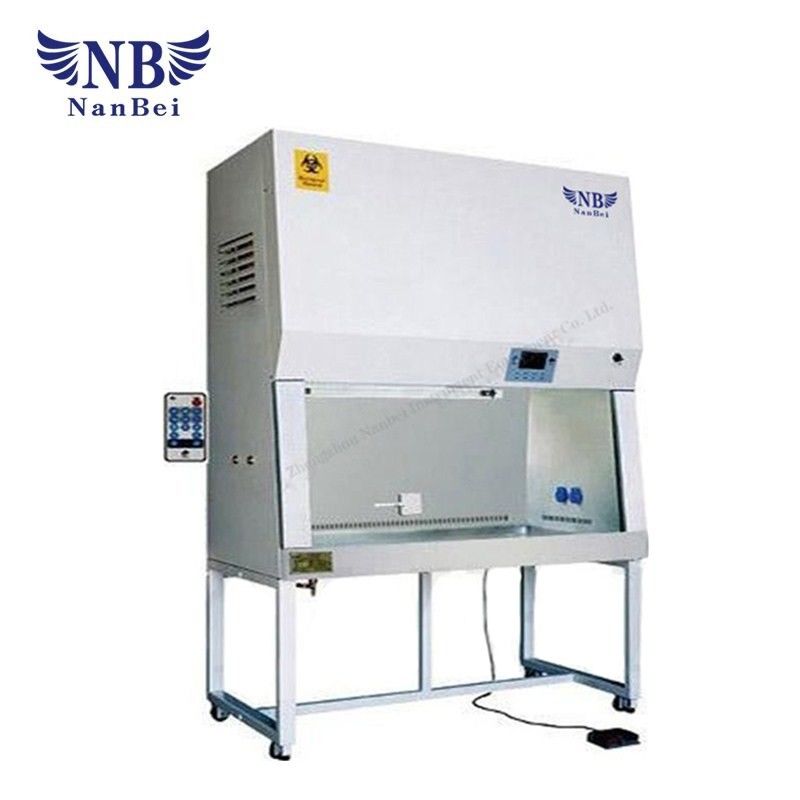

Biological safety cabinet for single person 100% air exhaust
Brief introduction of NANBEI biological safety cabinet:
The Class II biological safety cabinet is an open-front, ventilated cabinet. The Class II biological safety cabinet will provide personnel, environment and product protection.
Advantage:
1 Remote control. The operator need not to contact the biological safety cabinet directly, its favorable for preventing cross contamination. It also makes the control operation much easier and convenient.
2 Foot Switch. Within the range of the activity, we could use foot switch to adjust the height of the front panel. It is our unique design.
3 Work area surrounded by negative pressure.
4 Timer function
5 VFD display
6 Filter life inquiry
7 Motored fron window
According to the performance criteria:
1 US Standard ANSI/NSF49:2002
2 European Standard EN12469:2000
3 Chinese Standard YY0569-2005
Model | BSC-1100II B2-X | |
Internal size(mm) | 900X600X600 | |
External size(mm) | 1100X850X2200 | |
Tested Opening | Safety Height ≤200mm | |
Max Opening | 400mm | |
Inflow Veldcity | 0.53m/s | |
Down Flow Velocity | 0.53m/s | |
Pre-filter | Washable | |
Filter | Two HEPA filter 99.999% efficient(0.3 microns) | |
Front Window | Two-layer toughened glass >5mm | |
Noise | 65dB | |
UV lamp | 20WX1 | |
Fluorescent Lamp | 21WX1 | |
Lighting(Lux) | 800 | |
Power(W) | 1500 | |
Water and Gas Tap | Water Tap:1;Gas Tap:1 | |
Socket | 2 | |
Display | VFD display | |
Control System | Microprocessor | |
Airflow System | 0 air recirculation,100% air exhaust | |
Exhaust Duct | Material:PVC Diameter :300mm | |
Material | Work zone interior is made of 304 stainless steel Body:Expoxy coated cold rolled steel | |
Base Height | 635mm | |
Caster Wheel | Directional wheel | |
Clean Level | 100 | |
Electrical | 110~240V/50~60Hz(optional) | |
Net weight(kg) | 275 | |
Gross weight(kg) | 350 | |
Package(mm) | Main Body | 1250x1050x1870 |
Exhaust Blower | 1100x1000x900 | |
Standard Configuration | Body,Remote control,Foot switch,UV lamp and Fluorescent Lamp,4 meters exhaust duct,1 exhaust blower,Base Stand | |
Optional Accessory | Armrest,Air curtain tester,Formalin fumigation sterilizer,Ammonium hydrogen carbonate neutralizer |
