Model: | BSC-1500II A2-X | Internal Size(mm): | 1300X600X600 |
---|---|---|---|
External Size(mm): | 1500X850X2265 | Tested Opening: | Safety Height ≤200mm |
Max Opening: | 400mm | Inflow Veldcity: | 0.53m/s |
0.53m/s: | 0.53m/s | ||
High Light: |
Double Person biosafety cabinet airflow,lab biological safety cabinet classes |

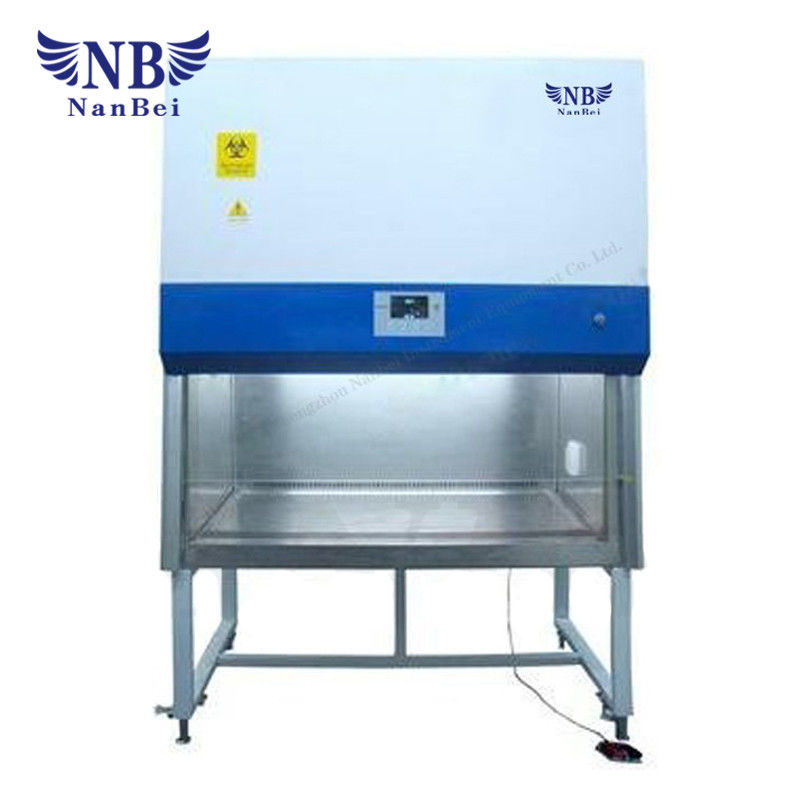

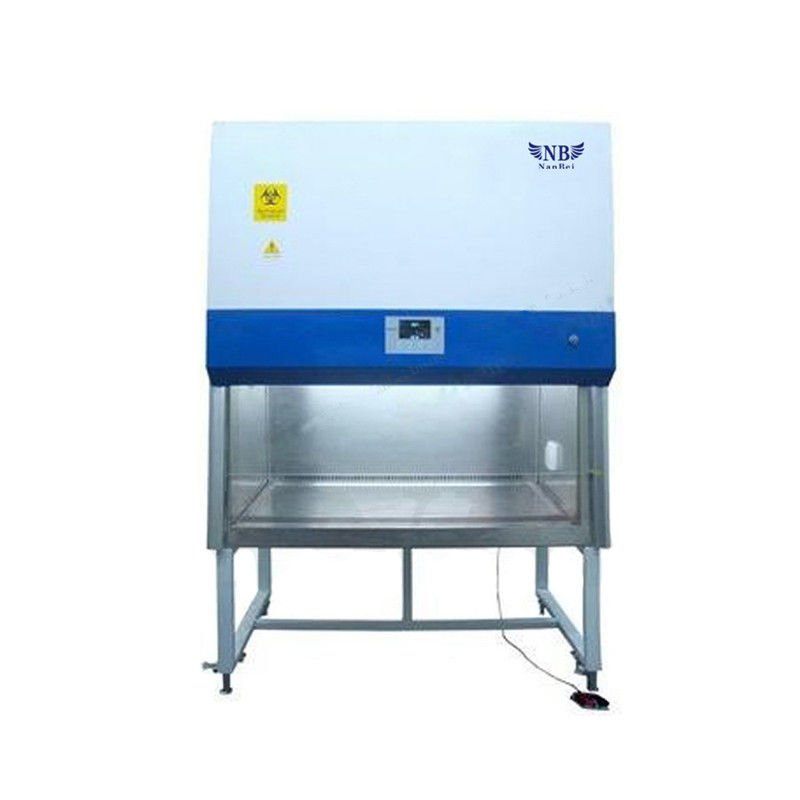

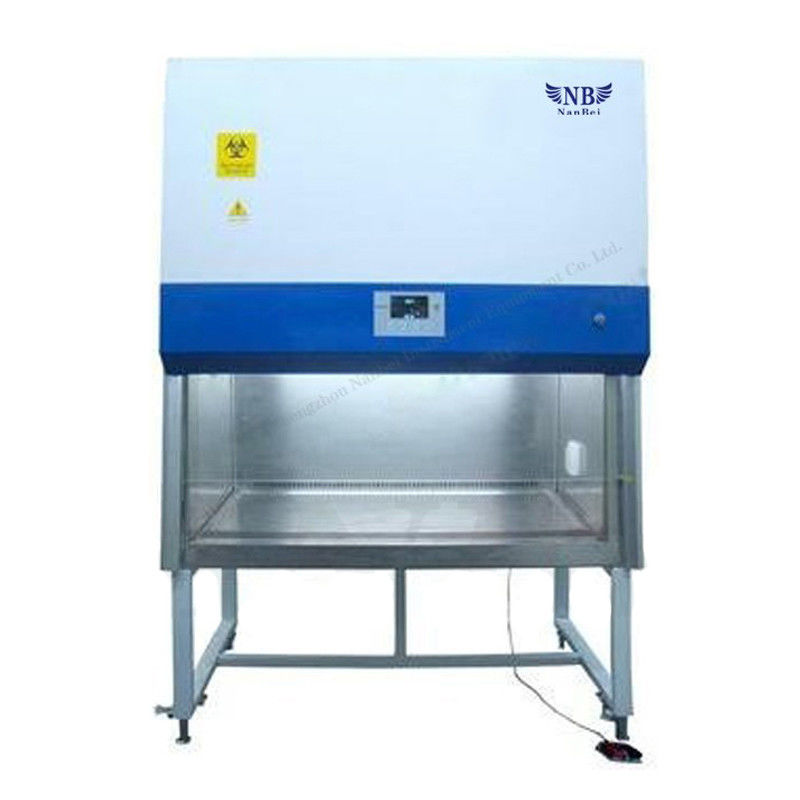

Biological safety cabinet for double person lab using
Brief introduction of NANBEI BSC-1500II A2-X biological safety cabinet :
The Class II biological safety cabinet is an open-front, ventilated cabinet. The Class II biological safety cabinet will provide personnel, environment and product protection.
Advantage:
1 Remote control. The operator need not to contact the biological safety cabinet directly, its favorable for preventing cross contamination. It also makes the control operation much easier and convenient.
2 Foot Switch. Within the range of the activity, we could use foot switch to adjust the height of the front panel. It is our unique design.
3 Work area surrounded by negative pressure.
4 Timer function
5 VFD display
6 Filter life inquiry
7 Motored fron window
According to the performance criteria:
1 US Standard ANSI/NSF49:2002
2 European Standard EN12469:2000
3 Chinese Standard YY0569-2005
Model | BSC-1500II A2-X |
Internal size(mm) | 1300X600X600 |
External size(mm) | 1500X850X2265 |
Tested Opening | Safety Height ≤200mm |
Max Opening | 400mm |
Inflow Veldcity | 0.53m/s |
Down Flow Velocity | 0.53m/s |
Filter | Two HEPA filter 99.999% efficient(0.3 microns) |
Front Window | Two-layer toughened glass >5mm |
Noise | 65dB |
UV lamp | 30WX1 |
Fluorescent Lamp | 28WX2 |
Lighting(Lux) | 800 |
Power(W) | 1200 |
Water and Gas Tap | 0 |
Waterproof Socket | 2 |
Display | VFD display |
Control System | Microprocessor |
Airflow System | 70% air recirculation,30% air exhaust |
Material | Work zone interior is made of 304 stainless steel Body:Expoxy coated cold rolled steel |
Base Height | 635mm |
Caster Wheel | Directional wheel |
Clean Level | 100 |
Electrical | 110~240V/50~60Hz(optional) |
Net weight(kg) | 365 |
Gross weight(kg) | 430 |
Package(mm) | 1640x1040x1860 |
Standard Configuration | Body,UV lamp and Fluorescent Lamp |
Optional Accessory | Armrest,Air curtain tester,Formalin fumigation sterilizer,Ammonium hydrogen carbonate neutralizer |
