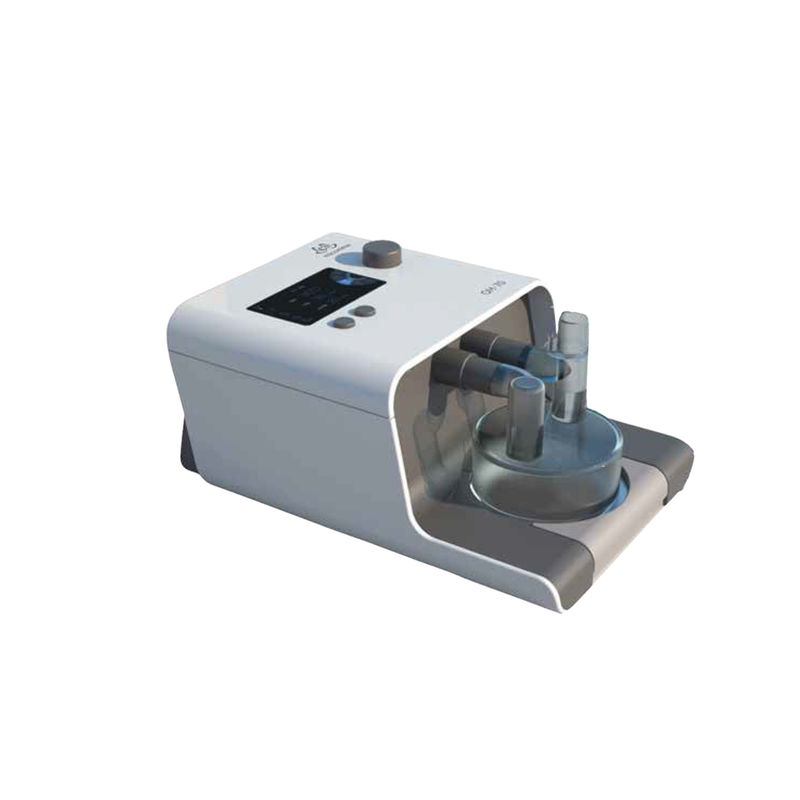

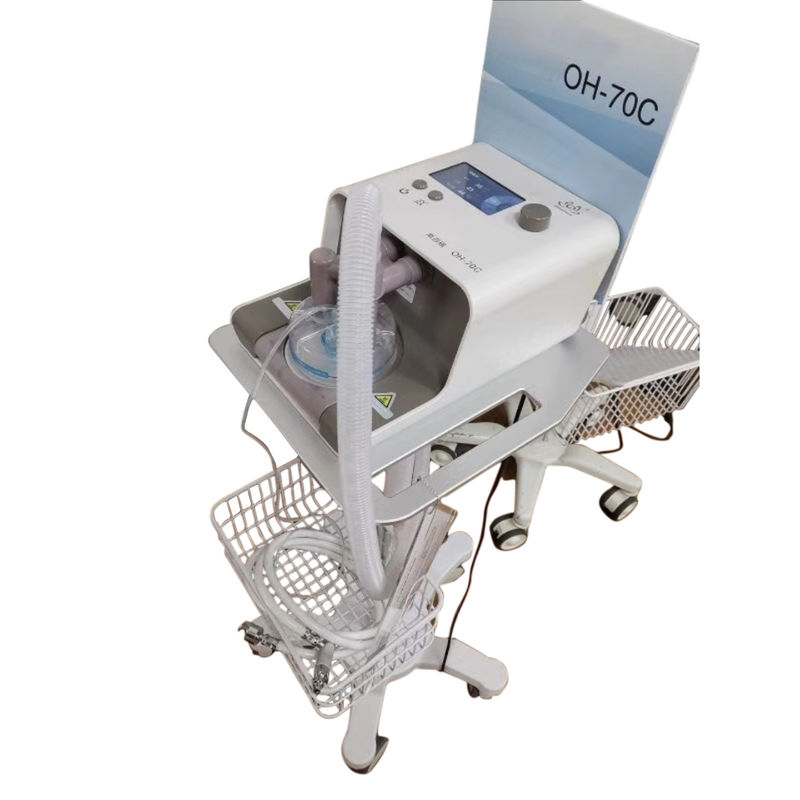

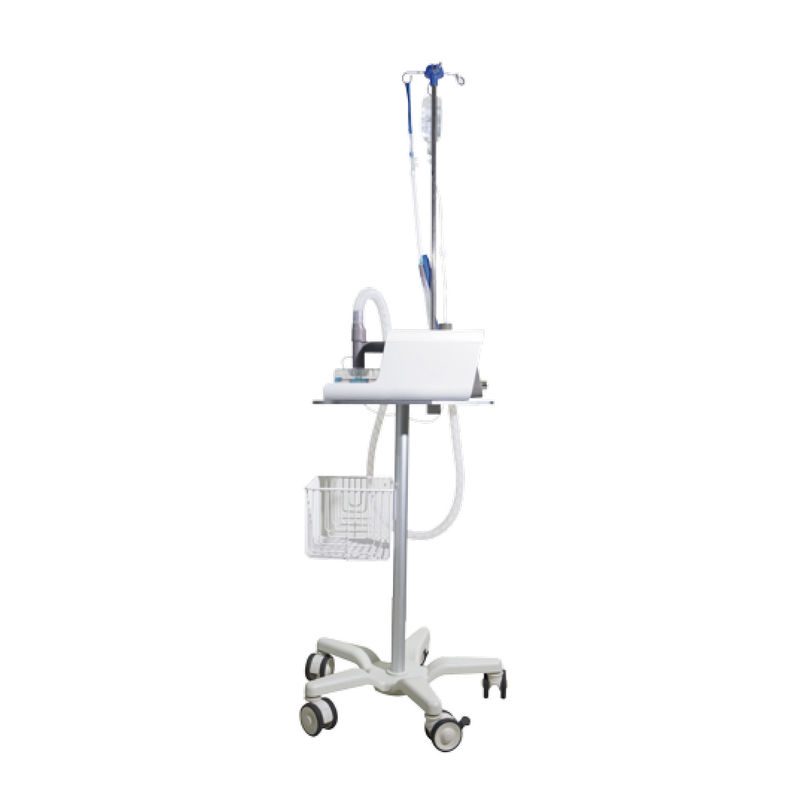

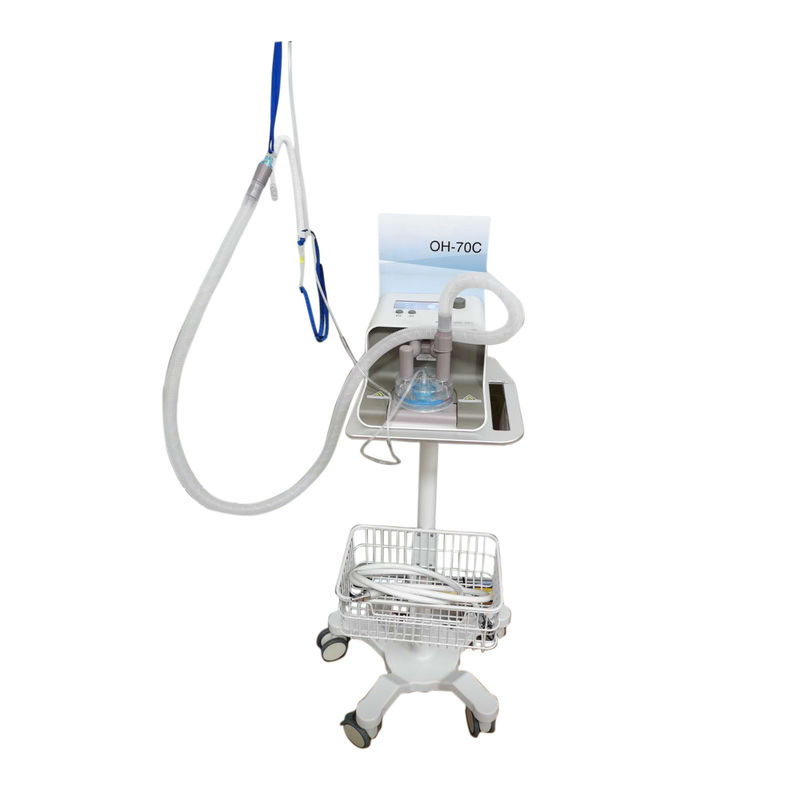

Non-invasive ventilator machine
Introduction:
The OH series of high-flow non-invasive respiratory humidification therapy machine provides limited respiratory treatment for patients by providing high-flow, precise oxygen concentration and warming and humidifying air-oxygen mixed gas. The OH series can effectively improve the patient's oxygenation level and maintain the normal operation of airway mucus cilia.
Applicable departments:
Respiratory, ICU, Emergency, Neurology, Neurosurgery, Geriatrics, Cardiothoracic Surgery, Cardiology, Pediatrics, Rehabilitation
Details:
| Name |
OH70C |
| Model |
High flow mode |
| Precise adjustment of oxygen concentration |
Automatic control |
| Oxygen concentration software settings |
20%-100%(±1%) |
| Flow setting: |
2L/min—70L/min |
| Temperature setting: |
adjustable from 31 ° C to 37 ° C |
| Timing function: |
with timing function |
| Trend review: |
1 day, 3 days, 7 days of temperature and humidity, oxygen concentration, flow review waveform. |
| Patient interface: |
nasal congestion interface, cutting tube interface. |
| Real-time detection parameters: |
flow rate, temperature, oxygen |
| Alarm reminder: |
pipeline alarm / oxygen pressure alarm / temperature alarm / power failure alarm / low ambient temperature reminder / oxygen concentration not reaching pre-value reminder / flow rate not reaching the standard reminder / reaching time reminder |
Feature:
1. Accurate automatic control of oxygen concentration.
2. Only temperature and humidity control system.
3. 70L / min high flow output.
4. Safe design, the host does not need to be disinfected.
Clinical treatment characteristics:
1. Improve oxygenation level in time and effectively
2. Form a certain positive airway pressure to keep the airway clear and reduce breathing work.
3. The anatomical dead ends are washed away, reducing carbon dioxide inhalation.
4. With sufficient humidification and heating, the cleaning function of the airway mucus cilia reaches its optimal state.
5. Comfortable user experience and improved compliance.
Clinical application:
Mild to moderate acute respiratory failure
Respiratory distress syndrome
Inertial therapy after assisted respiration extubation
Cardiogenic pulmonary edema
After Cardiothoracic Surgery
Assisted endoscopic operation
Pulmonary fibrosis
Palliative care
Various expectoration disorders
Product selling points:
Comfortable:
1. Fully humidified gas and suitable temperature. Give patients a comfortable treatment experience.
2. Special silicone nasal congestion. Five sense of oppression, the patient is well tolerated and has high compliance.
3. Provide different sizes of nasal congestion. It is suitable for different people and meets the clinical needs.
Easy to use:

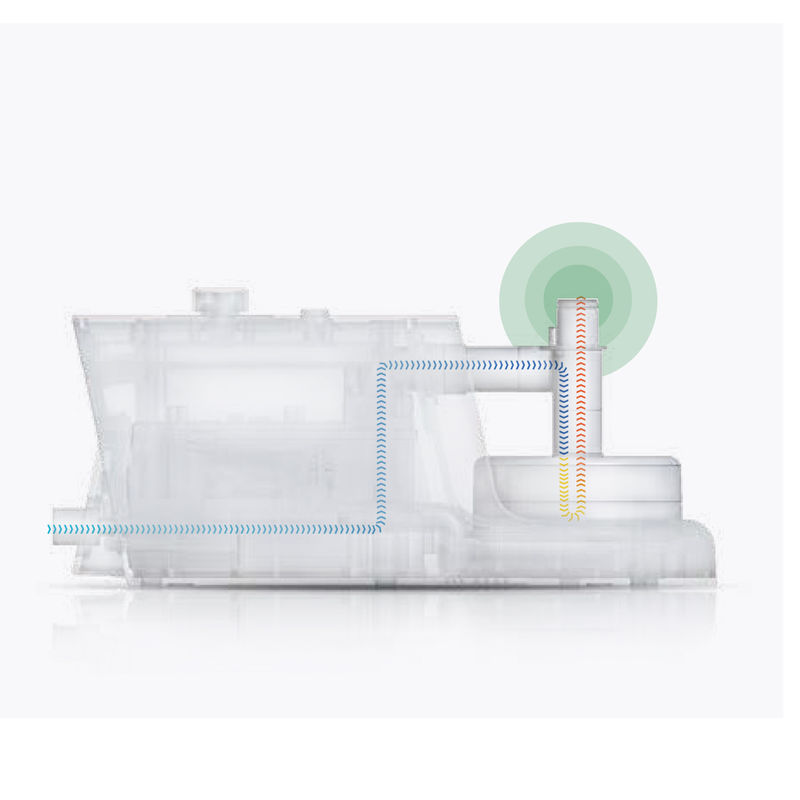

1. Innovative safe airway design, the host does not need to be disinfected.
2. With a unique safety design, the patient's gas will not return to the main unit, and there is no need to disinfect the machine to prevent cross infection.
Effective:
Oxygen concentration automatic control technology:
1. Automatic host to control oxygen concentration, no external manual adjustment is required, and it is more accurate.
2. 20% -100% oxygen concentration adjustment range, 1% adjustment accuracy.
3. When the flow rate changes, the air oxygen mixer will automatically adjust to ensure a stable output of oxygen concentration.
4. Built-in accurate oxygen concentration detection module, which can detect oxygen concentration in real time without installing consumables, such as oxygen battery.
Intelligent temperature and humidity control system:
1. First of all, it can provide gas close to the core temperature of the human body (37 ℃) and 100% humidity (44mg / L), so that the cilia removal function is in the best state.
2. Temperature control: 31 ℃ -37 ℃, seven gears adjustable, multi-point temperature and humidity sensor detection.
3. Automatic frequency conversion humidification system: to ensure accurate and stable temperature and humidity.
