Biotechnology Lab Equipment - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE
Model Number:	Gentier96

Minimum Order Quantity:	Negotiation
Price:	Negotiable
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…

Detail Information

Model:	Gentier96E	Sample Capacity(wells):	96
Temperature Range:	0℃-100℃	Gradient Range:	1℃-40℃
Gradient Block:	12row	Special Temperature Protocol:	Gradient PCR, Long PCR, Touch Down PCR
High Light:	lab ozone generator , ozone disinfection machine

Product Description

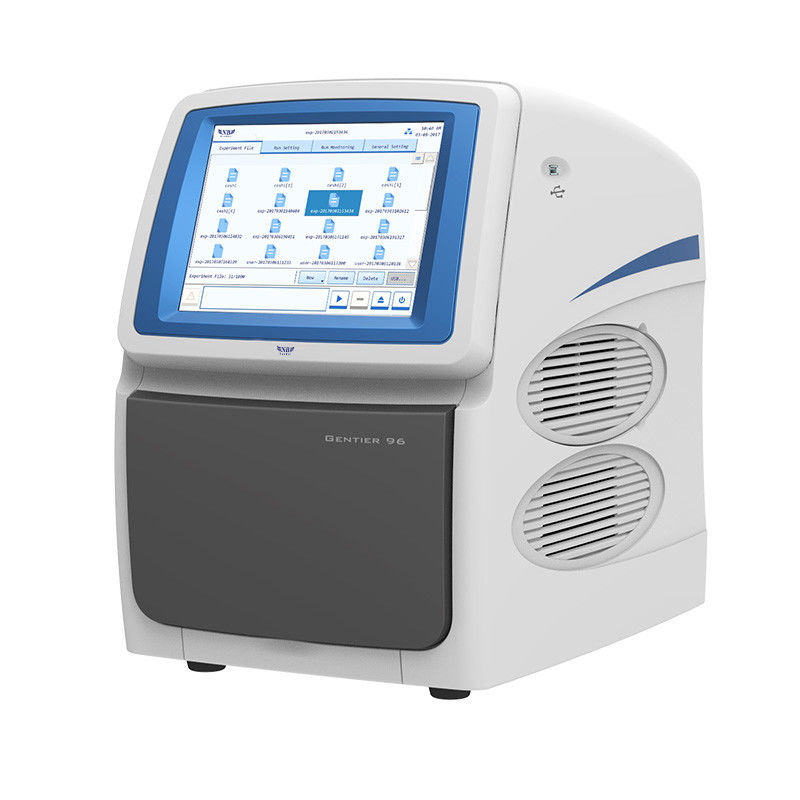

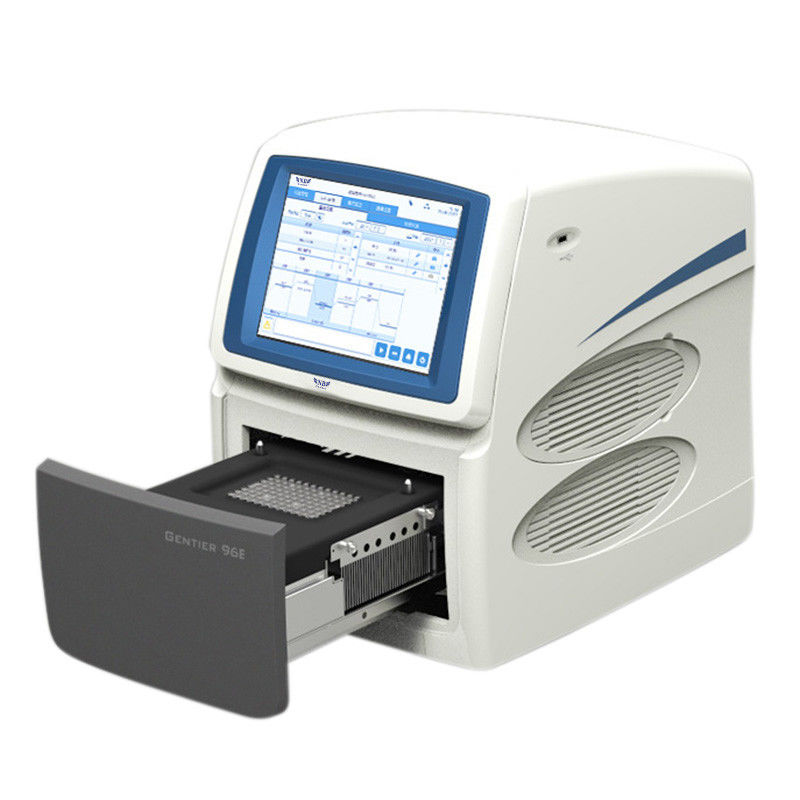

Real-time pcr system Gentier96

Advantage

>10 inch touch screen,all commends in one touch

>Easy-to-use Software

>Advantage Temperature Control

>LED-excitation and PD-detection, 7 seconds top optical scanning

>Outstanding and powerful data analysis functions

Real Time Biotechnology Lab Equipment Pcr System Gentier 96 Touch Screen 0

Parameters

Model	Gentier96E	Gentier96S	Gentier96R		Gentier96C
Thermal block
Sample capacity(wells)	96
Reaction volume	0-100ul
Consumable	0.2ml 96-WELL plates(unskirt)0.2ml 8-strip tubes,0.2ml PCR single tube(Optical flat cap. Clear,frosted,white tube)
Temperature range	0℃-100℃
Heating/cooling system	Peltier
Max heating rate	6.1℃/sec
Average heating rate	4.5℃/sec
Max cooling rate	5.0℃/sec
Average cooling rate	2.8℃/sec
Temperature accuracy	±0.1℃
Temperature uniformity	±0.1℃
Gradient range	1℃-40℃	N/A	1℃-40℃		N/A
Gradient block	12row		12row		8row
Special temperature protocol	Gradient PCR, Long PCR, Touch Down PCR	Long PCR, Touch Down PCR	Gradient PCR, Long PCR, Touch Down PCR		Long PCR, Touch Down PCR
Heat Lid
Temperature range	Room temperature-110℃
Optical system
Excitation Source	6LEDs		4LEDs
Detector	Photodiode
Detection position	Excitation and scan at top
Detection method	6 channels scanning at the same time, no edge effect
Detection time	7 seconds for 96 wells for all channels
Range of excitation/emission wavelengths(nm)	1. 465/510(FAM,SYBR Green I,SYTO9,Eva Green, LC Green) 2. 527/563(HEX,VIC,TET,JOE) 3. 580/616(ROX,Texas Red) 4. 632/664(Cy5) 5.680/730(Alexa Fluor680) 6.465/616(FRET)			1. 465/510(FAM,SYBR Green I,SYTO9,Eva Green, LC Green) 2. 527/563(HEX,VIC,TET,JOE) 3. 580/616(ROX,Texas Red) 4. 632/664(Cy5)
Probe Taqman Probe,Molecular beacons probe, scorpion probe,FRET				Taqman Probe,Molecular beacons probe, scorpion probe,
Multiplexing	Up to 6 targets			Up to 4 targets
Fluorescence Linearity	r≥0.990
Fluorescence Dynamic Range	Adjustable
Performance
Sample Linearity	/r/≥0.999
Sample repeatability	Ct value CV≤0.5%
Sample dynamic Range	1-10¹⁰
Software Functions
Data Analysis Modes	Qualitative analysis, Absolute quantification, Relative quantification, Genotyping analysis, Endpoint analysis, Melt curve analysis, High Resolution Melting
Control Modes	1. 10.4touch screen 2. PC direct control 3. WLAN control(one PC can control max 10 unit, and device can be controlled by any PC in the WLAN)
Sample Drawer	Touch Screen commend
Data Storage	Upload and download through USB disk, 1000 results can be stored in machine
Power failure protection	Automaticly start running experiments after power supply, no need wait PC software
Customize Report	Templetes reserved, report can customized
Administration Management	Administratior can set functions limits for users
Transport Locker	Automaticly detect transport locker
Fault Management	Fault report and analysis,solution instruction
LIS connection	CSV,Excel,TXT format data output, open port for LIS connection
Others
PC operating system	Win7, Win 10
Communication Port	1 ethernet and 3 USB
Foot pprint(WxDxH)	355mmX480mmX485mm
Weight	30kg
Power usage	AC100 to 125V/200to 240V(50/60HZ)
Power consumption	900VA
Work environment	Temperature:10℃~30℃ Humidity:20%~85%
