Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE
Model Number:	Gentier48E

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…

Detail Information

Sample Capacity(wells):	48	Reaction Volume:	5-100ul
Consumables:	0.2ml 8-strip Tubes,0.2ml PCR Single Tube(Optical Flat Cap. Clear Tube)	Gradient Range:	1℃-40℃
Gradient Block:	8row	Special Temperature Protocol:	Gradient PCR, Long PCR, Touch Down PCR
High Light:	sodium dichloroisocyanurate dihydrate , ozone disinfection machine

Product Description

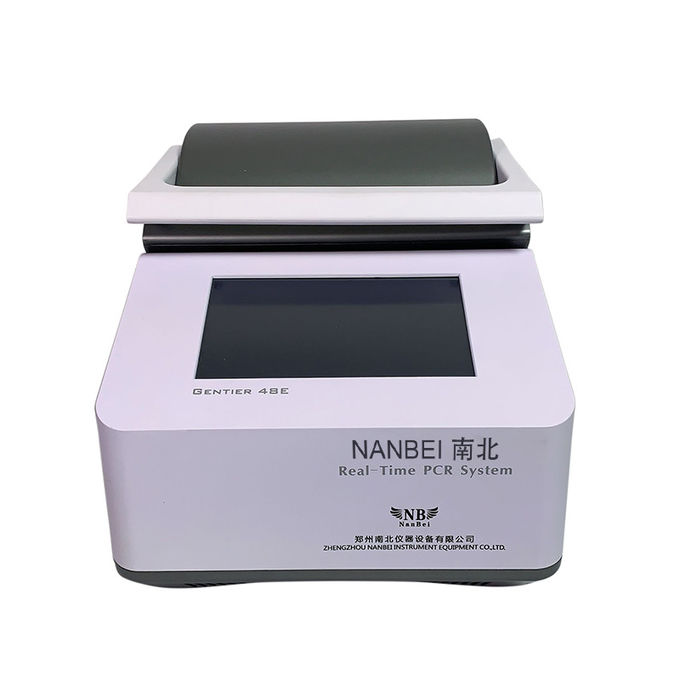

Real-time pcr system Gentier48

Advantage

1. 7 inch touch screen,easy to use software

2. Ultra UniF thermal platform

3. 2 seconds lateral optical scanning

4. Non-maintenance Optical System

5. Outstanding and powerful data analysis functions

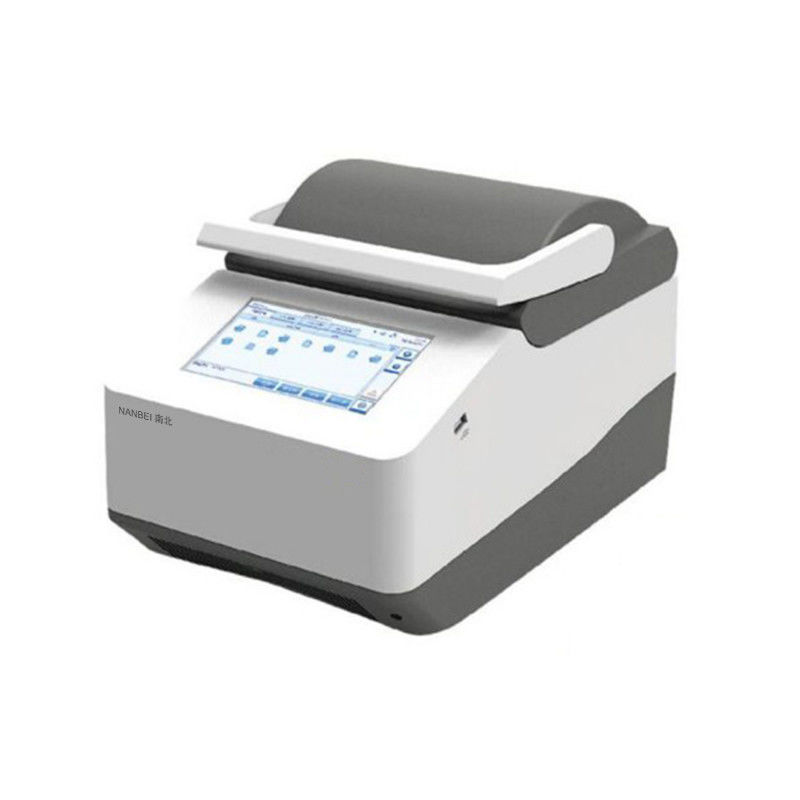

Digital Biotechnology Lab Equipment Real Time Pcr Machine Gentier 48 0

Parameters

Model	Gentier48E	Gentier48S	Gentier48R
Thermal block
Sample capacity(wells)	48
Reaction volume	5-100ul
Consumables	0.2ml 8-strip tubes,0.2ml PCR single tube(Optical flat cap. Clear tube)
Temperature range	0℃-100℃
Heating/cooling system	Peltier
Max heating rate	8.0℃/sec
Average heating rate	6.0℃/sec
Max cooling rate	5.5℃/sec
Average cooling rate	4.0℃/sec
Temperature accuracy	±0.1℃
Temperature uniformity	±0.1℃
Gradient range	1℃-40℃	N/A	1℃-40℃
Gradient block	8row		8row
Special temperature protocol	Gradient PCR, Long PCR, Touch Down PCR	Long PCR, Touch Down PCR	Gradient PCR, Long PCR, Touch Down PCR
Heat Lid
Temperature range	Room temperature-110℃
Optical system
Excitation Source	4LEDs		2LEDs
Detector	Photodiode
Detection position	Excitation and scan from lateral
Detection method	4 channels scanning at the same time, no edge effect
Detection time	2 seconds for 48 wells for all channels
Range of excitation/emission wavelengths(nm)	1. 465/510(FAM,SYBR Green I,SYTO9,Eva Green,LC Green) 2. 527/563(HEX,VIC,TET,JOE) 3. 580/616(ROX,Texas Red) 4. 632/664(Cy5)		1.465/510(FAM,SYBR Green I,SYTO9,Eva Green, LC Green) 2. 527/563(HEX,VIC,TET,JOE)
Probe Taqman Probe,Molecular beacons probe, scorpion probe
Multiplexing	Up to 4 targets		Up to 2 targets
Fluorescence Linearity	r≥0.990
Fluorescence Dynamic Range	Adjustable
Performance
Sample Linearity	/r/≥0.999
Sample repeatability	Ct value CV≤0.5%
Sample dynamic Range	1-10¹⁰ copies
Software Functions
Data Analysis Modes	Qualitative analysis, Absolute quantification, Relative quantification, Genotyping analysis, Endpoint analysis, Melt curve analysis, High Resolution Melting
Control Modes	7touch screen 2. PC direct control 3.WLAN control(one PC can control max 10 unis, and device can be controlled by any PC in the WLAN)
Data Storage	Upload and download through USB disk, 1000 results can be stored in machine
Power failure protection	Automaticly start running experiments after power supply, no need wait PC software
Customize Report	Templetes reserved, report can customized
Administration Management	Administratior can set functions limits for users
Fault Management	Fault report and analysis,solution instruction
LIS connection	CSV,Excel,TXT format data output, open port for LIS connection
Others
PC operating system	Win7, Win 10
Communication Port	1 ethernet and 2 USB
Foot print(WxDxH)	260mmX400mmX260mm
Weight	11kg
Power usage	AC100 to 125V/200to 240V(50/60HZ)
Power consumption	600VA
Work environment	Temperature:10℃~30℃ Humidity:20%~85%
