ISO Laboratory Grinding Equipment Soil Material≤3mm Feeding Size

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: NXQM(2L-16L)
Minimum Order Quantity: 1set
Price: USD1900-USD3000/set
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Detail Information
Drive Mode: Gear Drive And Belt Drive Operate Mode: Two Or Four Grinding Tanks Working Together
Maximum Loading Capacity: 2/3 Of The Capacity Of Milling Tank Feeding Size: Soil Material≤3mm
Output Granularity: Smallest Granule Reaches 0.1μm Rotational Speed Ratio: 1:2
Max.Continuous Operating Time: 72hours Optional Modes Of Speed Control: Frequency Conveter And Automatic Timing Control
High Light:

laboratory grinder machine

,

laboratory ball mill


Product Description



ISO Laboratory Grinding Equipment Soil Material≤3mm Feeding Size

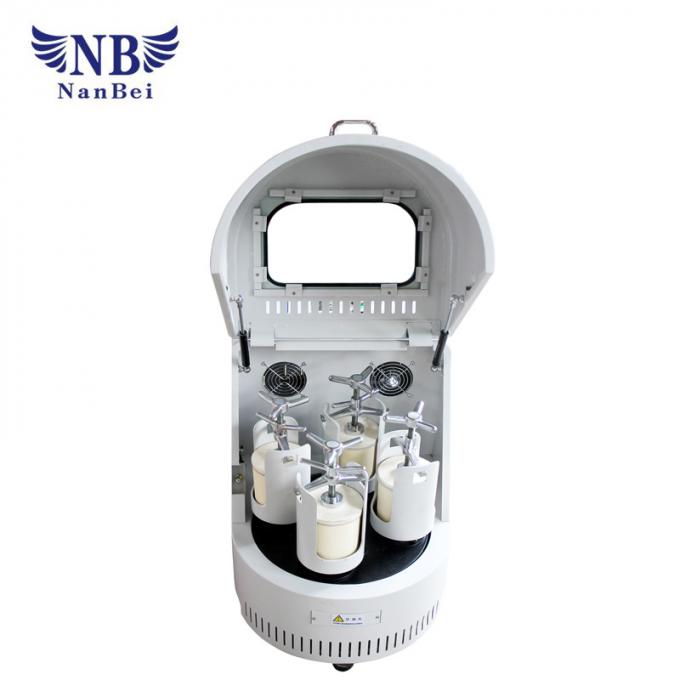

Brief introduction of Planetary ball mill :

Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Tencan planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). It gets powder samples under the vacuum state when equipped with vacuum ball mill tank.



Working Principle
Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1um.



Features of Planetary ball mill:

1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

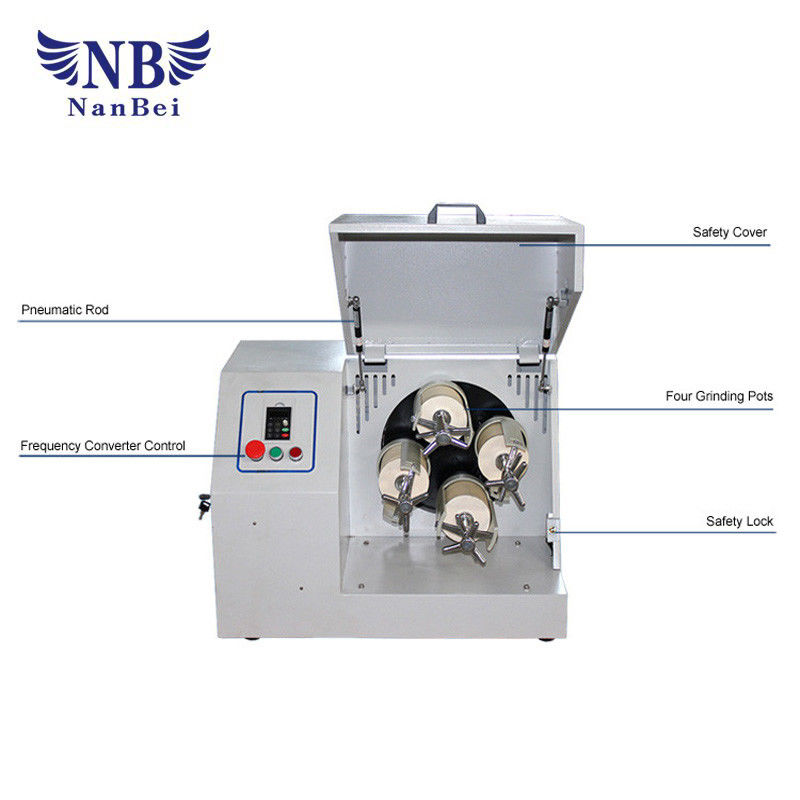

ISO Laboratory Grinding Equipment Soil Material≤3mm Feeding Size 0





Technical Features of Vertical Planetary Ball Mill
Drive Mode Gear drive and belt drive
Operate Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤3mm
Output Granularity Smallest granule reaches 0.1μm
Rotational Speed Ratio 1:2
Max.Continuous Operating Time 72hours
Materials of Jar stainless steel,agate,nylon,corundum,zirconia,Tungsh carbon etc
Optional modes of speed control Frequency conveter and automatic timing control
Model NXQM-2A NXQM-4A NXQM-8A NXQM-10A NXQM-12A NXQM-16A
Capacity 2L 4L 8L 10L 12L 16L
Jars capacity 50-500ml 250-1000ml 1-2L 1-2.5L 1-3L 2-4L
Jars quantity 4pcs
Power
(KW)
0.75 1.5
Voltage 220V-50Hz 380V-50Hz
Revolution
Speed
(rpm)
35-335 35-290 30-255
Rotation
Speed
(rpm)
70-670 70-580 60-510
Total
Timing
(min)
1-9999
Alternating Run Time
of Forward
& Reversal Rotation
(min)
1-999
Noise≤db 60±5
Net Weight (kg) 80 132 203
Dimension (mm) 750*470*590 880*560*670 950*600*710
Grinding jars and ball
Material Volume of Mill Jar Diameter of Mill Ball (mm)
Stainless Steel 50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L 1-30mm
Zirconia 50ml,100ml,250ml,500ml,1L,1.5L,2L,3L 1-30mm
Alumina 50ml,100ml,250ml,500ml,1L,1.5L,2L,3L 1-50mm
Tungsten Carbide 50ml,100ml,250ml,500ml,1L,1.5L 3-10mm
Agate 50ml,100ml,150ml,250ml,300ml,400ml,500ml,1L,1.5L,2L 6-35mm
Iron Core PU   15-30mm
Nylon 50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L
PU 50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L
PTFE 50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L
