NANBEI Laboratory Grinding Equipment Planetary Ball Mill Large Capacity

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: WNXQM(8L-100L)
Minimum Order Quantity: 1set
Price: USD3850-USD12500/set
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Detail Information
Drive Mode: Gear Drive And Belt Drive Operate Mode: 2/4 Grinding Jars Work Together
Maximum Loading Capacity: 2/3 Of The Capacity Of Milling Tank Feeding Size: Soil Material≤10mm;Others≤ 3mm
Output Granularity: ≥0.1μm Rotational Speed Ratio: 1:2
Max.Continuous Operating Time: 72hours Materials Of Jars And Balls: Stainless Steel,agate,nylon,corundum,zirconia,Tungsh Carbon Etc
High Light:

laboratory sample grinders

,

laboratory ball mill


Product Description

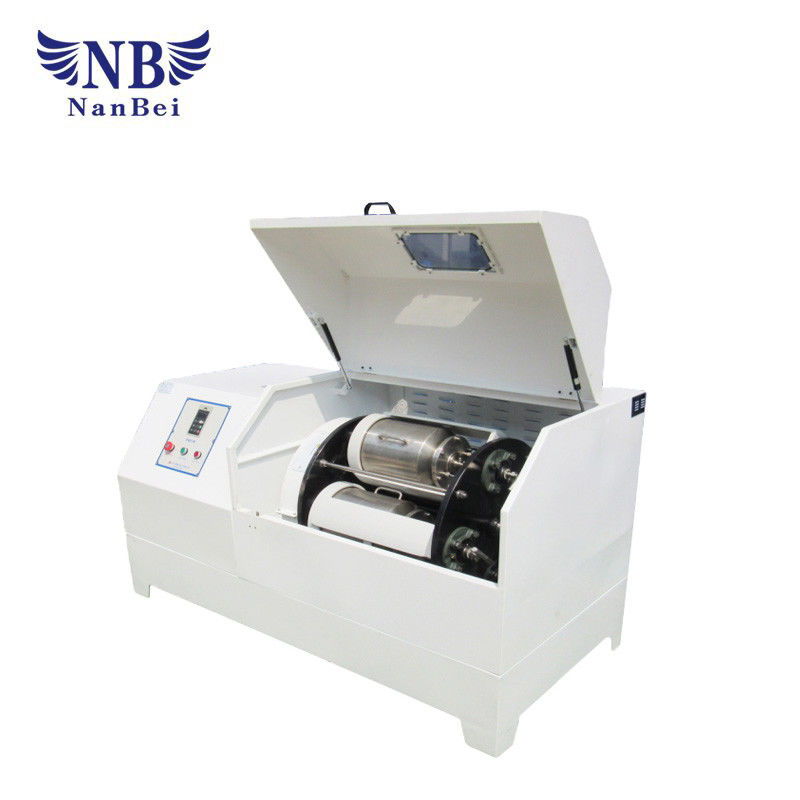

NANBEI Laboratory Grinding Equipment Planetary Ball Mill Large Capacity


Brief introduction of Horizontal planetary ball mill:
WNXQM series planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron (i.e.) 1.0×10-4mm).

Working Principle

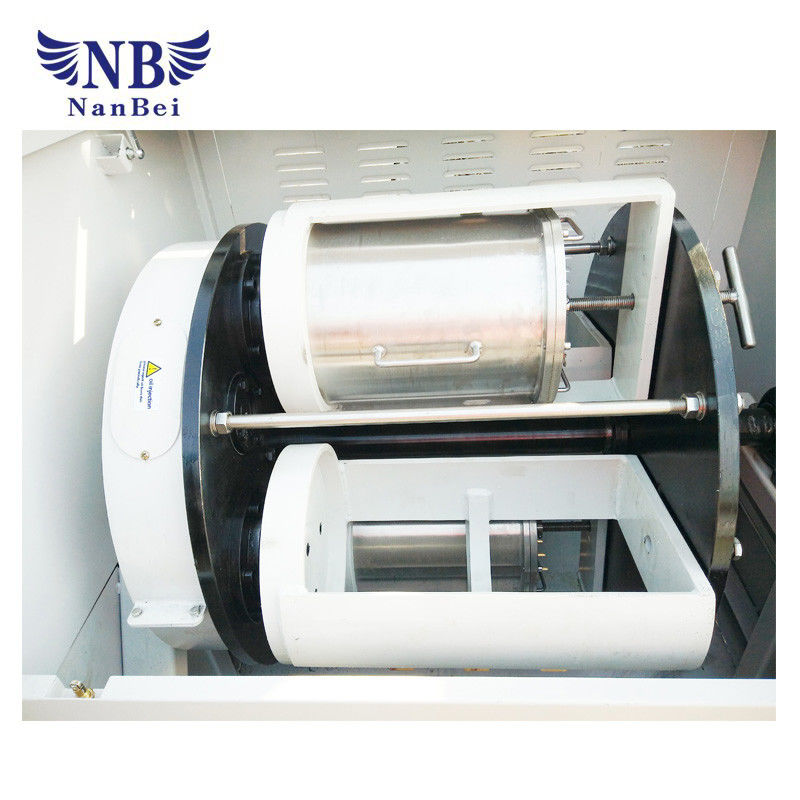

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. A variety of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1um.

Features of Lab planetary ball mill:
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter; you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, and timing according to experimental needs so as to improve efficiency of grinding.
6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.

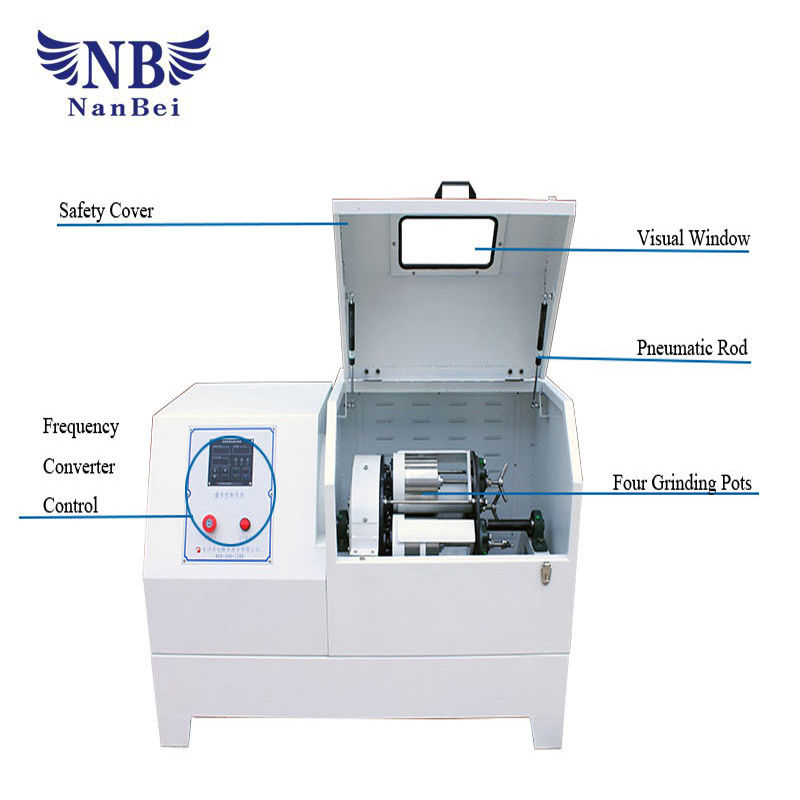

7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
Grinding jars and balls
Besides the planetary ball mill machine, our factory provides all kinds of mill pots,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

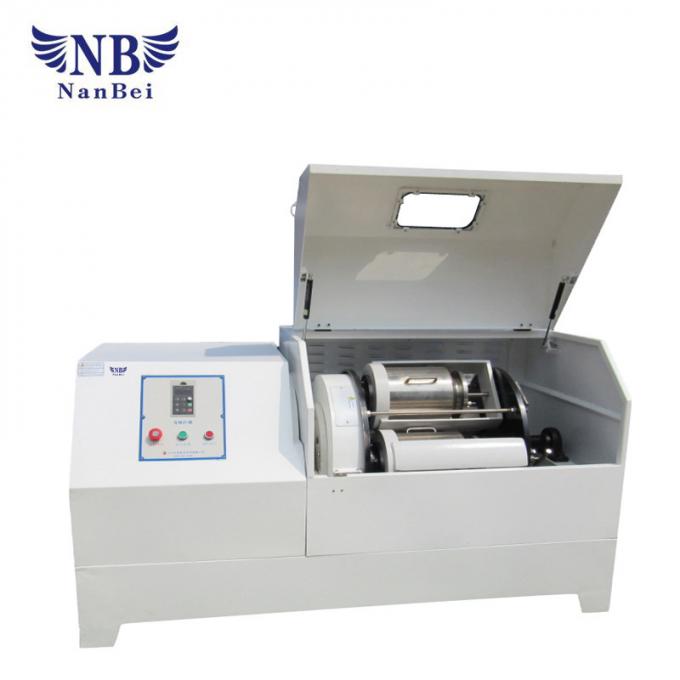

NANBEI Laboratory Grinding Equipment Planetary Ball Mill Large Capacity 0


Drive Mode Gear drive and belt drive
Operate Mode 2/4 grinding jars work together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤10mm;Others≤ 3mm
Output Granularity ≥0.1μm
Rotational Speed Ratio 1:2
Max.Continuous Operating Time 72hours
Materials of Jars and balls stainless steel,agate,nylon,corundum,zirconia,Tungsh carbon etc
Optional modes of speed control Frequency conveter and automatic timing control
Parameters of Horizontal Planetary Ball Mill (Heavy Type)
Model No. Power
(kw)
Voltage Dimension
(mm)
Revolution Speed
(rpm)
RotationSpeed
(rpm)
Total Timing
(min)
Alternating Run
Time of Forward &
Reversal Rotation
(min)
WNXQM-8 1.5 220V-50Hz 1320*670*920 35-290 70-580 1-9999 1-999
WNXQM-10 1.5 220V-50Hz 1320*670*920 35-290 70-580 1-9999 1-999
WNXQM-12 1.5 220V-50Hz 1320*670*920 35-290 70-580 1-9999 1-999
WNXQM-16 3 380V-50Hz 1530*750*960 30-240 60-480 1-9999 1-999
WNXQM-20 4 380V-50Hz 1620*840*1040 25-215 50-430 1-9999 1-999
WNXQM-40 5.5 380V-50Hz 1770*860*1100 25-215 50-430 1-9999 1-999
WNXQM-60 7.5 380V-50Hz 1860*1050*1280 20-206 50-310 1-9999 1-999
WNXQM-80 11 380V-50Hz 2100*1150*1370 35-193 50-290 1-9999 1-999
WNXQM-100 11 380V-50Hz 2100*1150*1370 35-193 50-290 1-9999 1-999
Grinding jars and ball
Material Volume of Mill Jar Diameter of Mill Ball (mm)
Stainless Steel 50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L 1-30mm
Zirconia 50ml,100ml,250ml,500ml,1L,1.5L,2L,3L 1-30mm
Alumina 50ml,100ml,250ml,500ml,1L,1.5L,2L,3L 1-50mm
Tungsten Carbide 50ml,100ml,250ml,500ml,1L,1.5L 3-10mm
Agate 50ml,100ml,150ml,250ml,300ml,400ml,500ml,1L,1.5L,2L 6-35mm
Iron Core PU   15-30mm
Nylon 50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L
PU 50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L
PTFE 50ml,100ml,250ml,500ml,1L,1.5L,2L,2.5L,3L
