Laboratory Grinding Equipment - Nanbei Instrument Limited

Place of Origin:	Zhengzhou
Brand Name:	NANBEI
Certification:	CE,ISO,SGS
Model Number:	NB-160

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 SET PER MONTH

Detail Information

Speed Range:	8000-30000rpm	Speed Control Dial Knob:	10 Stage
Max. Viscosity:	5,000mPas	Weight:	0.54 Kg
Dimension [L X W X H:	2	Noise:	72 DB(A)
Protection Class:	IP20
High Light:	Homogenizers Laboratory Grinding Equipment , 30000rpm laboratory homogenizers , 8000rpm laboratory homogenizers

Product Description

Laboratory Anti-corrosion Homogenizers Grinding Equipment

Key Specifications/Special Features:

The laboratory homogenizer is suitable for research and development of high-pressure homogenization and cell splitting processes in the food, chemical, pharmaceutical, cosmetic and biotechnology industries.

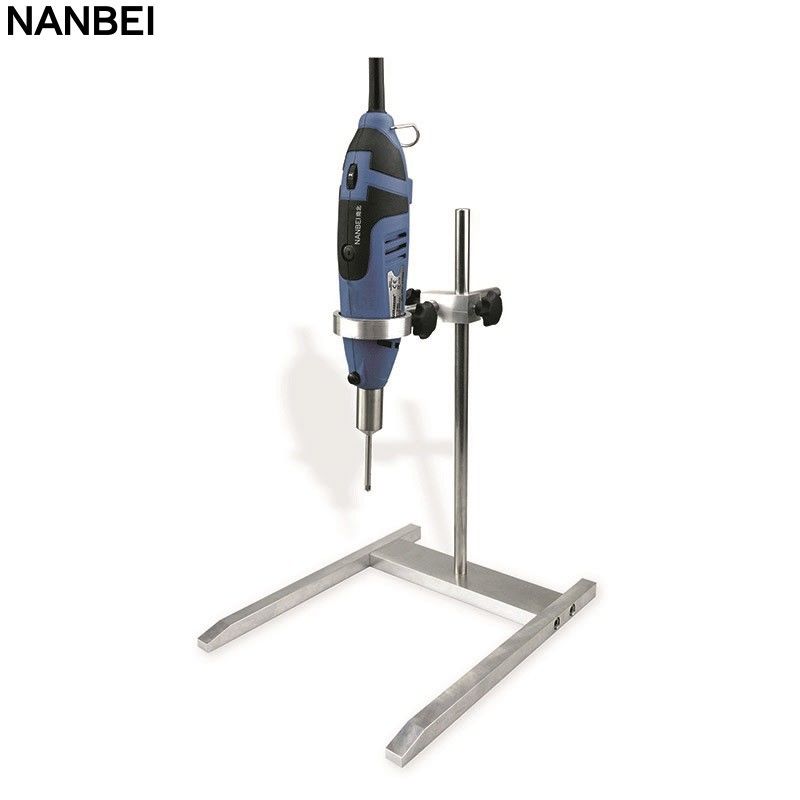

NB-160 Homogenizers:

Features:
• Ideal for manual operation due to its light weight and ergonomic design
• Processing range: 0.1-50mL or 1-250mL
• 316L stainless steel shafts are fully autoclavable and inert for highly corrosive solutions
• All shafts are interchangeable for easy dismantling and cleaning.
• 10 modes of motor speed from 8,000 to 30,000 rpm

Specifications	NB-160
Power Supply	110-120V/60Hz 220-240V / 50-60 Hz
Motor Type Universal motor	160 W AC carbon brush motor
Speed Range	8000-30000rpm
Max. Circum. Speed	6.3-14m/sec
Speed Control Dial knob	10 stage

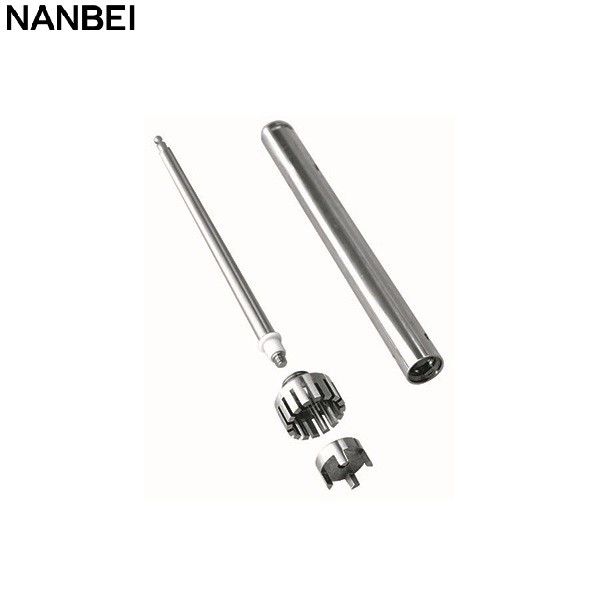

Working Volume [ H 2 O]	0.1-50mL (Dispersing shaft DS-160/5) 1-250mL (Dispersing shaft DS-160/10)
Max. Viscosity	5,000mPas
Material of Dispersing Shaft	SS 316L stainless steel, PTFE
Weight	0.54 kg
Dimension [L x W x H]	46mm x 55mm x 230mm
Noise	72 dB(A)
Operating Environment	0-40 ℃,85% rel. humidity
Protection Class	IP20

Overhead Stirrer
Cat. No.	P/N	Descriptions

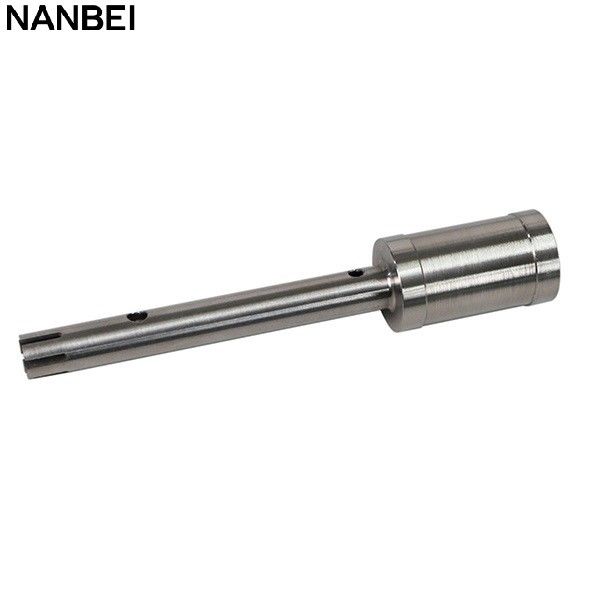

18900113	NBS-160/5	Dispersing shaft 5mm,for solid/liquid media and volumes from 0.1-50ml
18900114	NBS-160/10	Dispersing shaft 10mm, for solid/liquid media and volumes from 1- 250ml
