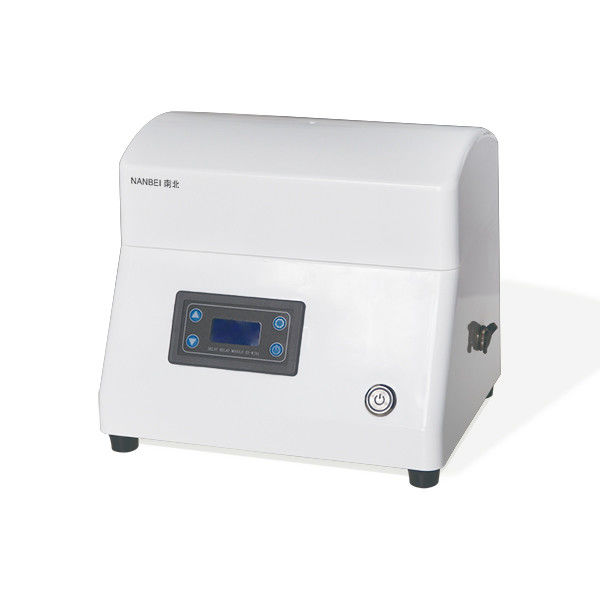

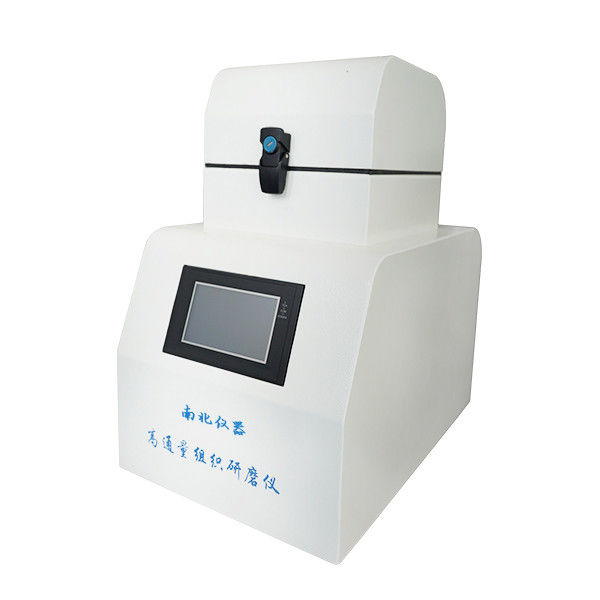

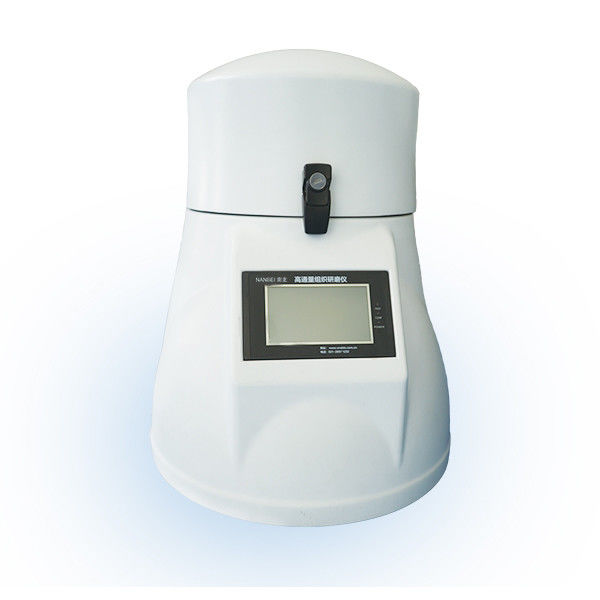

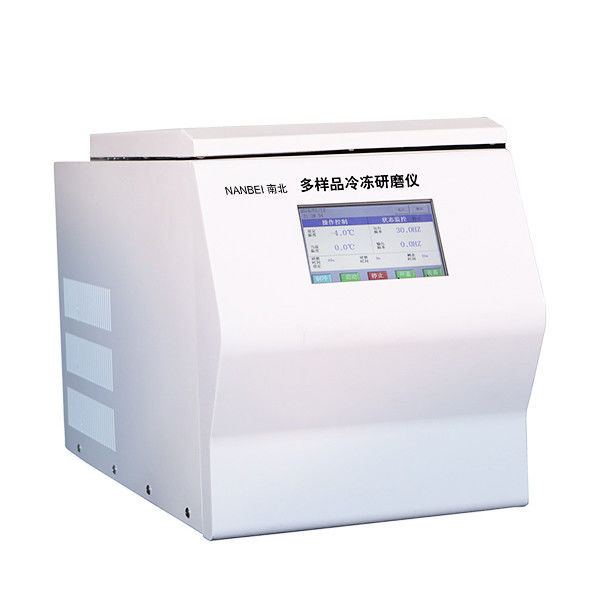

High throughput tissue grinder NB-48R

Application scope:

1. Used for grinding and breaking samples of various plant tissues including roots, stems, leaves, flowers, fruits, seeds, etc.;

2. Used for grinding and breaking samples of various animal tissues including brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle, bone, etc.;

3. Used for grinding and breaking samples of fungi, bacteria, etc.;

4. Used for grinding and crushing of food and drug composition analysis and testing;

5. Used for grinding and crushing of volatile samples including coal, oil shale, wax products and other samples;

6. Used for grinding and crushing samples of plastics and polymers including PE, PS, textiles, and resins.

Features :

1. With high efficiency and good effect, it can complete grinding of 12, 24, 48, 96 samples within 1 minute. It is time and effort saving, with small differences between batches and batches.

2. No cross-infection, no sample loss, the same procedure can be set for the same tissue sample to obtain the same grinding effect. The working time is short, and the sample temperature rises slowly. The grinding process is in a completely closed state to avoid external contamination, cross-infection between samples,and sample loss.

3. Easy to operate, intuitive and concise, LCD touch screen control, good human-computer interaction interface, intelligent program controller, the frequency and time parameters can be set in time.

4. Good stability, vertical oscillation mode, sufficient grinding; low vibration during operation, noise less than 65dB.

5. Convenient for low-temperature operation. The adapter with the sample can be immersed in liquid nitrogen for 1-2 minutes at the same time, and it can be ground for 15-30 seconds, saving liquid nitrogen.

6. The repeatability is good. The same procedure is set for the same tissue sample, and the same grinding effect is obtained. The working time is short, and the temperature rise of the sample is small.

Technical parameter:

Volume of samples processed by adapter: 96*(0.2-0.5ML)/48*2ML/

16*(7-10)ML/12*15ML / 4*25ML/ 4*50ml/2*50ML

Homogenizing speed: 10—70 HZ/sec

*Display mode: LCD touch screen, can save 20 programs

Adapter material: PTFE/aluminum alloy

*Grinding method: wet grinding, dry grinding, liquid nitrogen cryogenic grinding are all available

Maximum feed size: no requirement, adjust according to adapter

Final output particle size: ~5μm

Fastening device with automatic centering

Safety lock during work, full protection

Grinding kit material: hard rigid, PTFE (Teflon)

Power supply: Two-phase 220V/50HZ

Working time: 0 seconds -99 minutes, users can set by themselves;

Diameter of grinding ball: 0.1-30mm

Grinding ball material: alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand;

Acceleration: reach maximum speed in 2 seconds

Deceleration: Reach the minimum speed in 2 seconds

Noise level: <65db

*Dimensions: 25*25*30cm

*Weight: <15KG (more lightweight)

Accessories

Adapter: 48*2ml high-strength plastic adapter (standard configuration);

24*2ml high-strength plastic adapter (standard configuration);

5*12ml high-strength plastic adapter (optional)

24*2ml aluminum alloy adapter (optional);

4*50ml (8*50ml, customized models can be equipped) centrifuge tube adapter (optional);

96 deep well plate adapter

Grinding beads (316 stainless steel or zirconia): 0.5mm; 1mm; 2mm; 3mm; 4mm; 5mm; 6mm; 8mm; 10mm

500 3mm or 100 6mm grinding beads (standard configuration)
