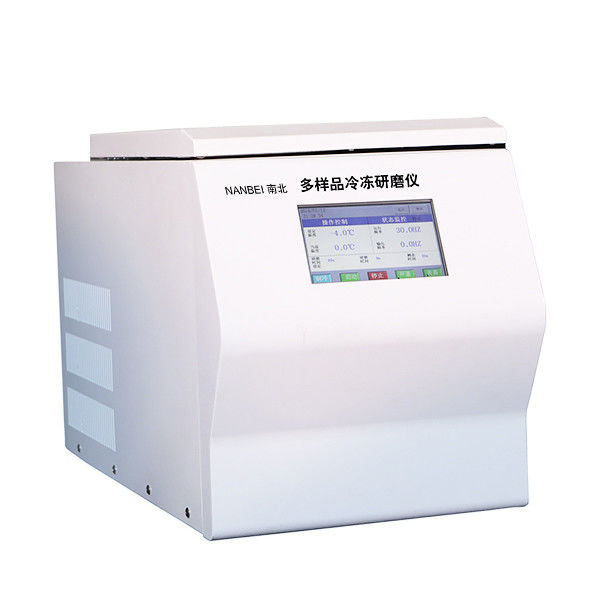

Multi-sample Freezing Grinder NB-96C

Features

The multi-sample freezing grinder developed by our company can quickly reach low temperature, ensuring that the sample is in a low temperature environment during the entire grinding process, which can greatly ensure the stability of the sample

Fast cooling: Imported compressor, reaching below 0°C in 1 minute; reaching -10°C in 5 minutes

Unlocking method: automatic lifting, one key switch

Display mode: 7-inch embedded LCD touch screen, easy to operate, beautiful and generous

Anti-vibration principle: 4 independent linkage mechanical shock absorbers

Grinding method: dry grinding, wet grinding, liquid nitrogen freezing

Technical parameter

Display mode: touch LCD screen

Working mode: up and down vibration, three-dimensional movement mode grinding

*Processing sample volume: 24-96*2ml; 16*(5-15ml) samples, 1-96 samples can be freely selected;

Homogenizing speed: 10—70 HZ/sec

*Shockproof principle: 4 independent linkage mechanical shock absorbers

Adapter material: Teflon

Grinding method: wet grinding, dry grinding and low temperature grinding are all available

Maximum feed size: no requirement, adjust according to adapter

Final output particle size: ~5μm

Number of grinding platforms (acceptable number of grinding tanks)> 2

Fastening device with automatic center positioning Yes

Safety lock during work, full protection

Grinding kit material Hard rigid, PTFE (Teflon)

Power supply: Two-phase 220V/50HZ

Working time: 0 seconds -99 minutes, users can set by themselves;

Diameter of grinding ball: 0.1-30mm

Grinding ball materials: alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand;

Acceleration: Reach the maximum speed within 2 seconds

Deceleration: Reach the lowest speed within 2 seconds

Noise level: <50db

*Imported compressor refrigeration: It can reach below 0° within 5 minutes, and the lowest can reach -30°. Sample processing under low temperature conditions can ensure the stability of the sample and prevent degradation.
