Name: | Soxhlet Extraction Fat Analyzer | Power: | Electronic |
---|---|---|---|
Measure Quantity: | 1-6 Samples At Same Time | Solvent Reclaim Rate: | Less Than 80% |
Temperature Control Range: | Room Temperature- 200 Tep | Work Theory: | Soxhlet Extraction Method |
Heating Time: | Within 10 Min | Recovery System: | Automatic |
Dimension: | 760X230X680mm | Weight: | 25kg |
High Light: |
agriculture instruments,agricultural weather monitor |

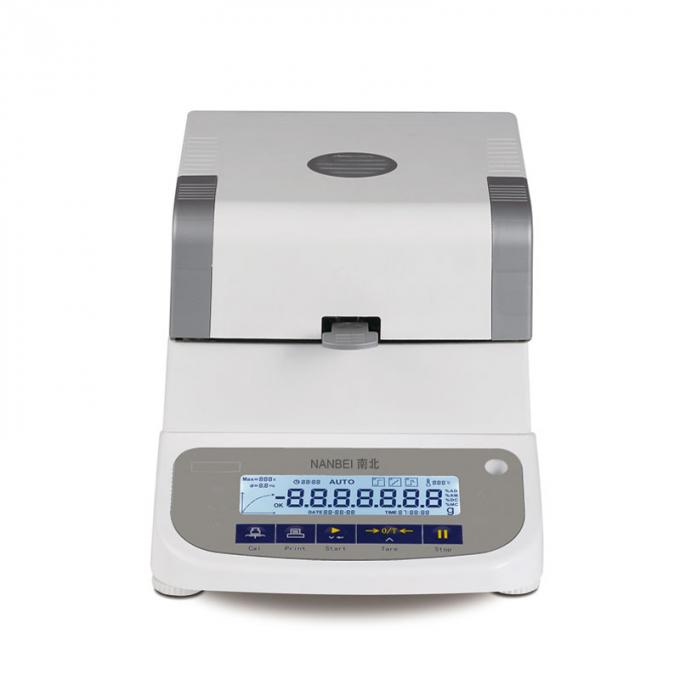

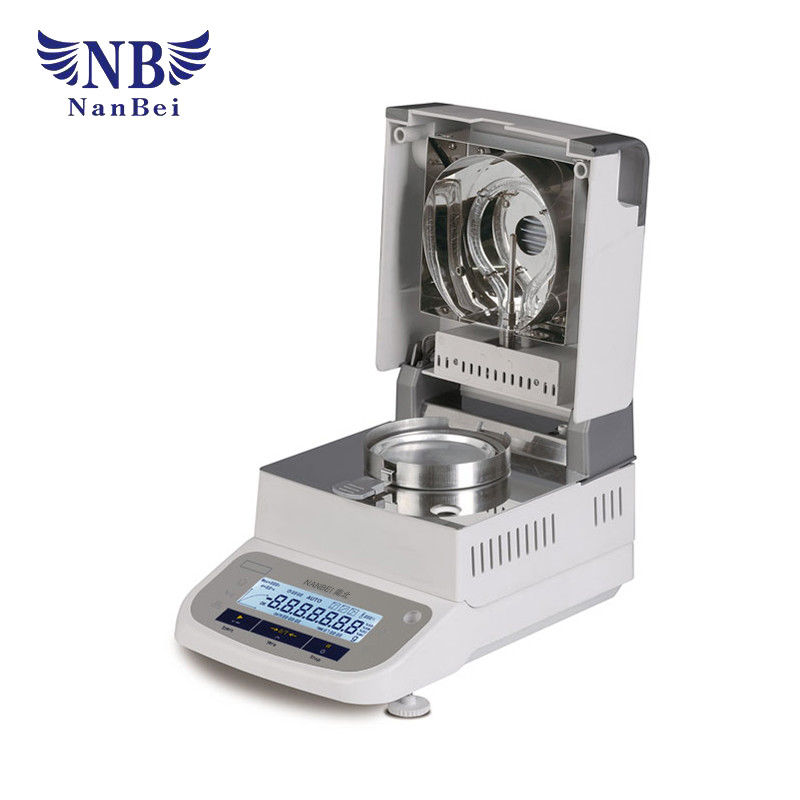

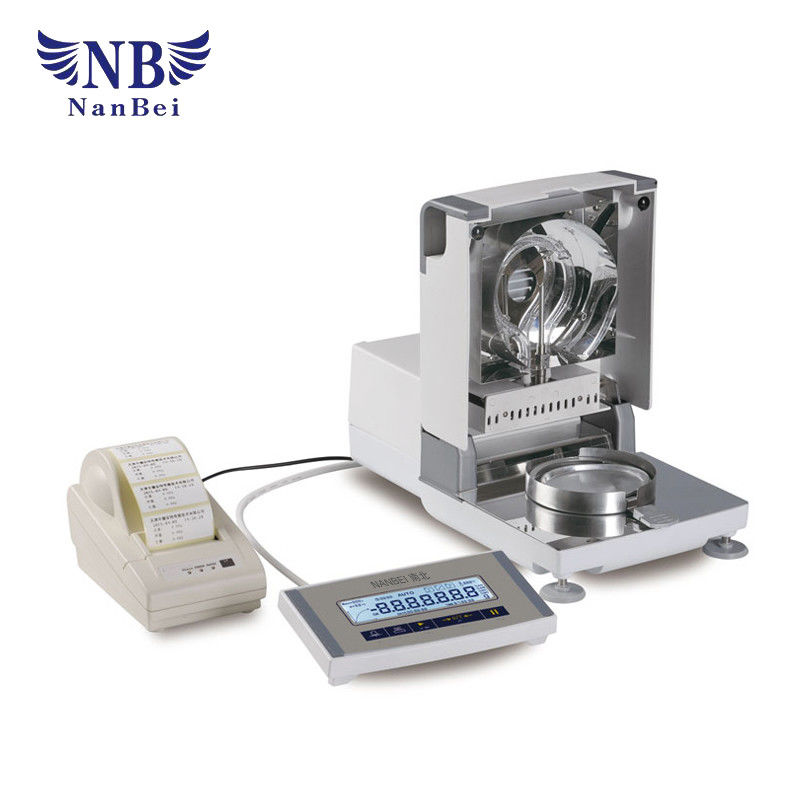

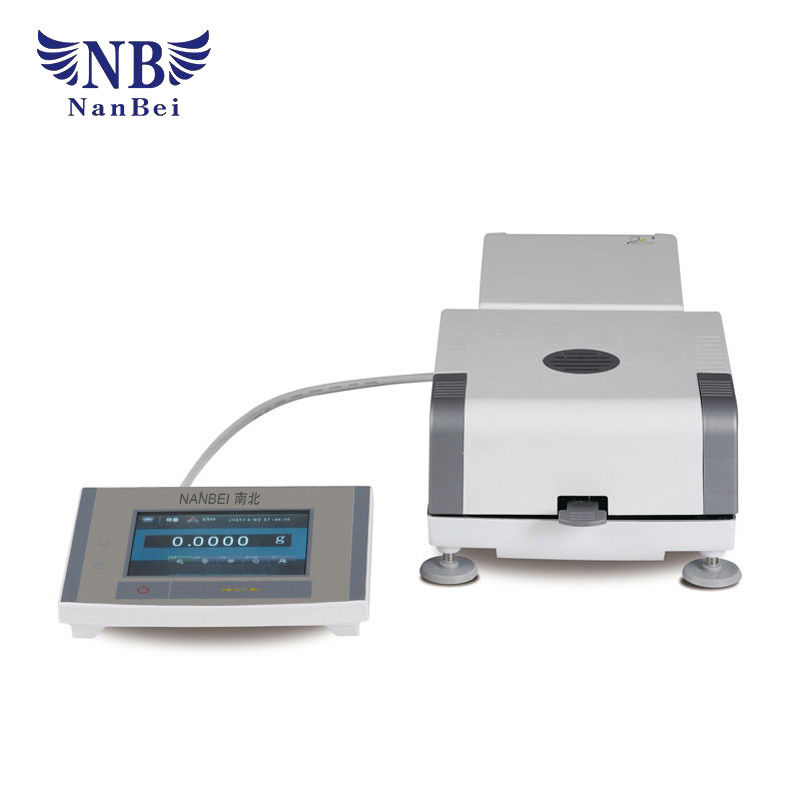

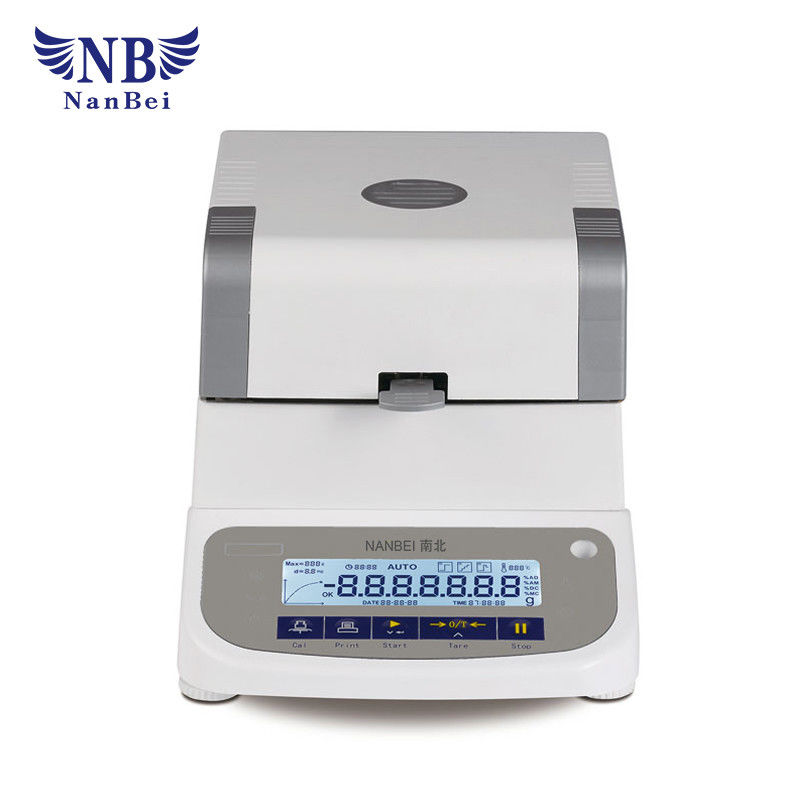

Halogen Lamp Moisture Meter , 610A Halogen Lamp Moisture Meter
Brief introduction of Halogen lamp moisture meter:
QN series Rapid Moisture Analyzer:
QN series Rapid Moisture Analyzer configures high precision weighing sensor and high efficiency halogen lamp heat device on the basis of electronic balances, to reach the rapid and accurate moisture determination. Halogen moisture analyzer is the reliable solution of determining your sample’s moisture content. This durable and affordable moisture analyzer profit from Tianjin D&T rich experience of manufacturing precise instruments and years of professional aknowledge for determination of moisture content.
This series is widely used in the scope of tabacco, papermaking, food, tea, beverage, grain, chemical raw materials, pharmaceutical raw materials, texture raw materials etc., testing the free moisture content of samples.
Features of Halogen lamp moisture meter:
Model Number | QN-610A | QN-720A | QN-100A | |
Max.capacity (g) | 120 | 120 | 120 | |
Capacity Readability (g) | 120-0.005 | 120-0.001 | 120-0.0001 | |
Repeatability (Standard Error) | >10g | ±0.01% | ±0.001% | |
>2g | ±0.05% | ±0.005% | ||
Operational Temperature Range (℃) | 13~25 | |||
Calibration Way | Temperature calibration, External weights calibration | Temperature calibration, Internal weights calibration | ||
Pan Diameter (mm) | Φ90 | |||
External Dimension (L*W*H mm) | 310*205*200 | |||
Preheat Time (minute) | 20-30 | |||
Baud Rate Options | 300,600,1200,2400,4800,9600 | |||
Display | LCD liquid crystal display |
LCD liquid crystal display
|
||
Heating Temperature Range (℃) | 60-200 | |||
Drying Process | Standard heating, Step heating, Weight-lost heating | |||
Moisture Display Mode | Relative Moisture | |||
Stop Way | Automatic stop, Manual stop, Timing stop | |||
Setting Time | 0~99 minutes, interval 1 minute |
