USD LTS series digital analysis apparatus soil moisture meter

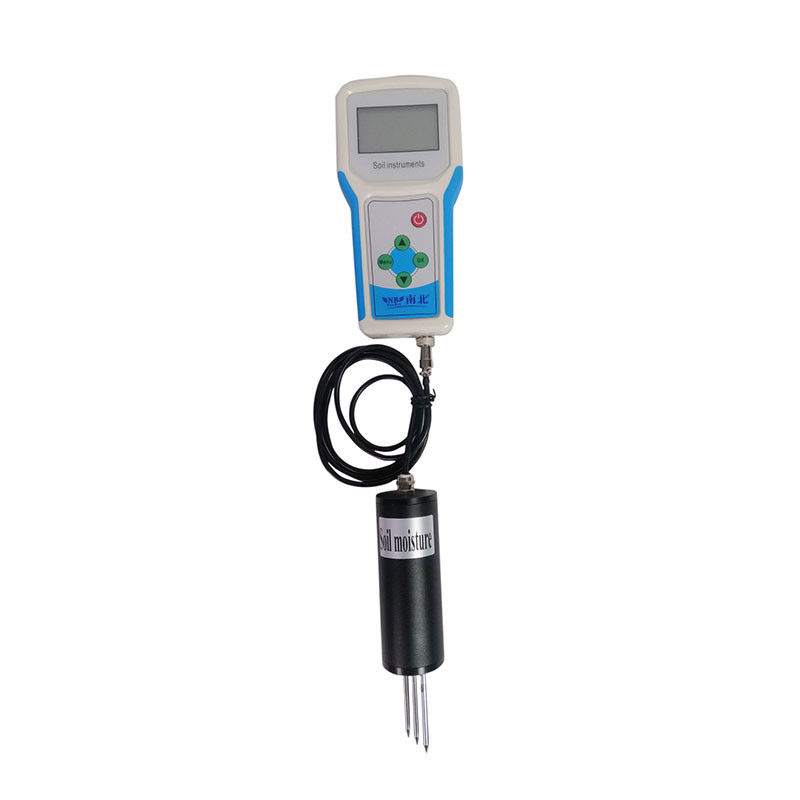

Soil moisture meter

Features of Soil moisture meter

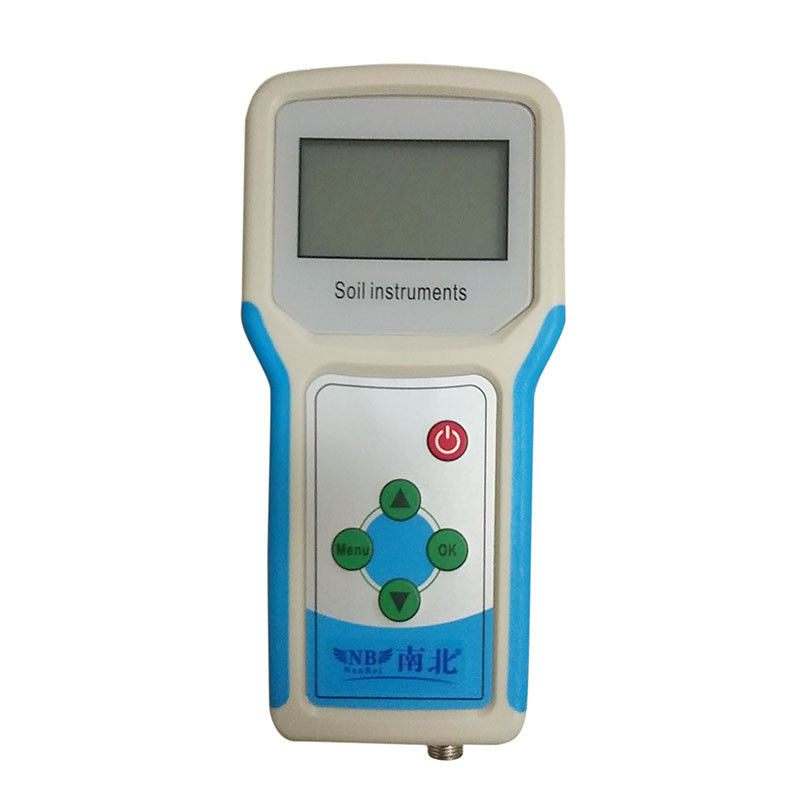

1. Large-screen liquid crystal display soil moisture value;

2, large-capacity data storage, internal Flash can store up to 30,000 monitoring data (optional 4G card for unlimited storage);

3, Universal USB communication interface, easy data download; can view the data on the host, you can also dump the data into the computer can carry out the curve view, the data of the maximum, minimum, average analysis, you can also export EXCEL table backup view ;

1. After an unexpected power failure, the data that has been saved on the host is not lost;

5, AC and DC dual-purpose, built-in large-capacity lithium battery power supply, can quickly charge, economic and environmental protection, convenient and quick;

6, with GPS positioning function, with automatic acquisition, real-time field location latitude and longitude coordinates and save; (optional)

7. With Chinese voice alarm function, voice alarm setting can be performed on the over limit value, real-time Mandarin voice alarm can be performed for the over-standard parameter, and the real-time environment parameter value can be directly broadcasted; (optional)

8, all sensor probes have a consistent function, different soil meteorological sensor interface can be interchanged, the host can access different sensors through the hub, each other does not affect the measurement accuracy, the host can access up to 32 sensors at the same time, the sensor communication cable farthest Up to 100 meters.

Technical Parameters of Soil moisture meter

Measuring range: 0--100%

Resolution: 0.1%

100% error: ≤3%

Test time: ≤ 2 seconds

Recording time: 5 minutes --- 99 hours

Power supply: 7.4V large capacity lithium battery

Communication: USB

Storage: 30,000 data

Longitude: 0-180° Latitude: 0-90°
