400～700nm CE Plant photosynthesis meter for CO2/Leaf temperature/PAR meter

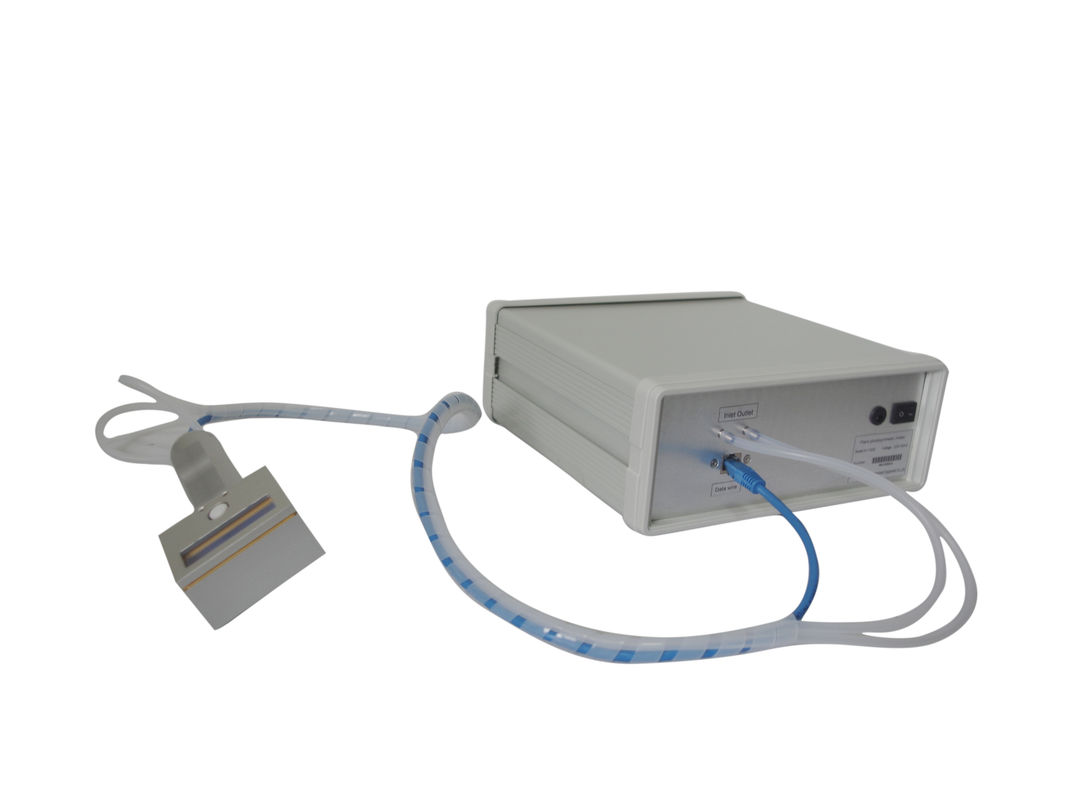

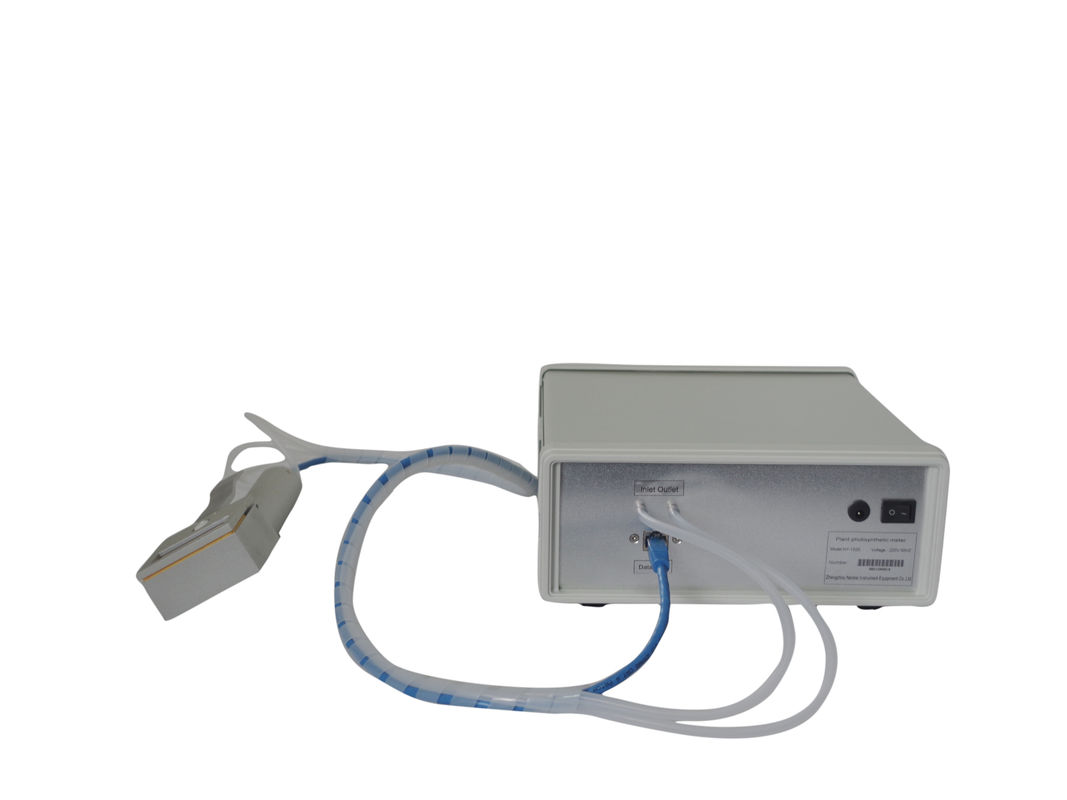

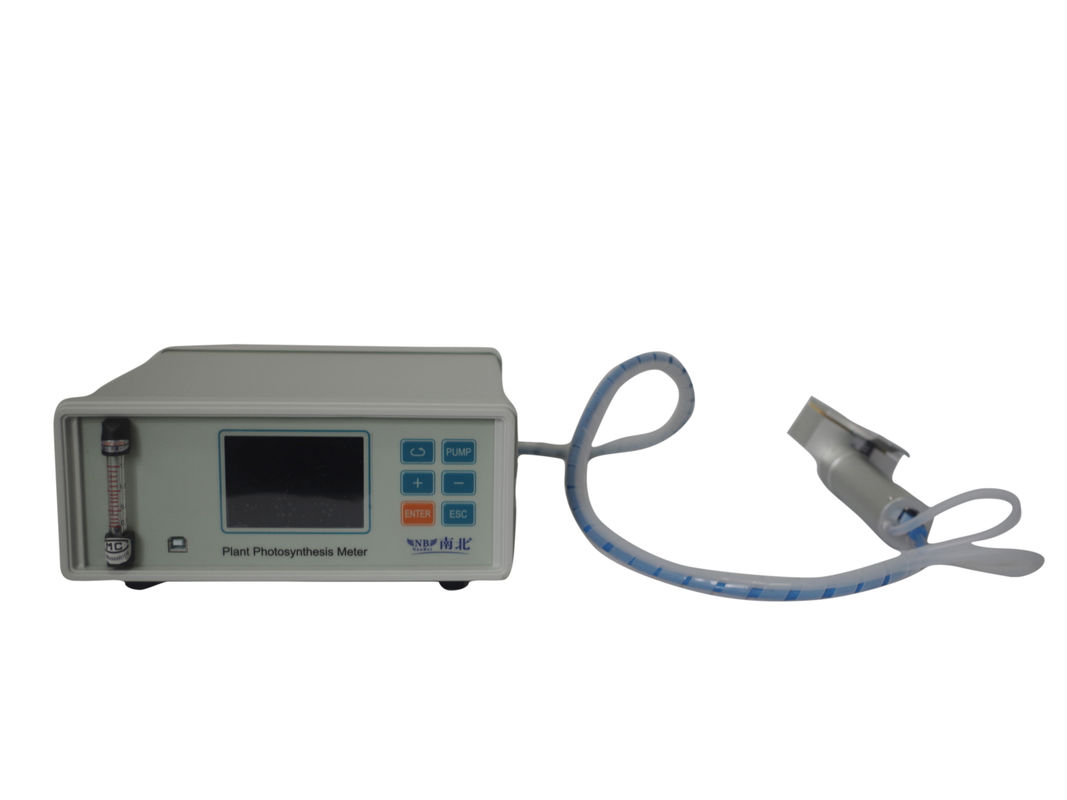

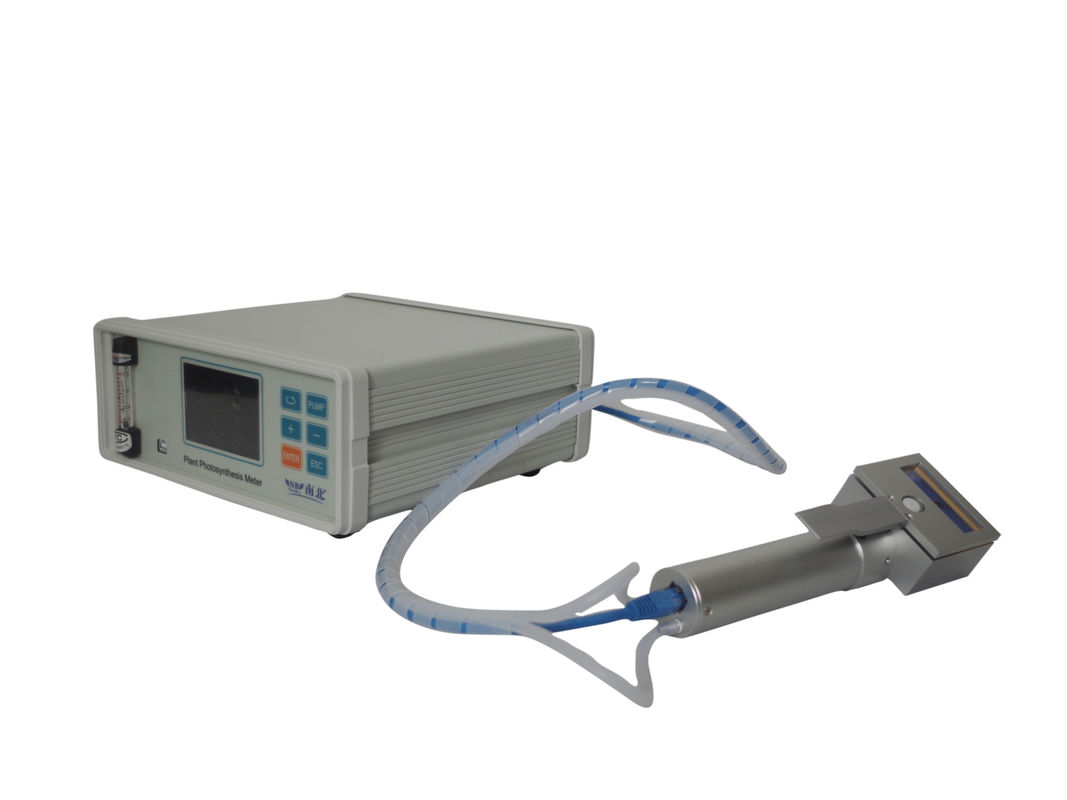

NY-1020 Plant Photosynthesis meter

Product introduction for Plant Photosynthesis meter
NY-1020 Plant photosynthesis meter can test CO2,Air temperature/humidity,plant leaf temperature,illumination,air flow etc parameters,then calculate plant photosynthetic rate,inspiration rate,cell CO2 concentration and stomatal conductance these four main plant photosynthesis index,widely used in biology,agriculture,garden,forestry,insect,microbiology,animals fields.

Test parameter for Plant Photosynthesis meter

CO2

Leaf temperature

PAR

Leaf chamber temperature

Leaf chamber humidity

Calculation:

Leaf photosynthetic rate

Leaf transpiration rate

Cell CO2 concentration

Stomatal conductance

Water use efficiency

Technology index for Plant Photosynthesis meter
CO2 analysis:
Non disersive infrared CO2 analysis,measuring range:0-2000ppm,Resolution:0.1ppm； Accuracy＜0.5ppm when 300ppm, Accuracy 1ppm when 300-800ppm,Accuracy 3ppm when 800-2000ppm

Leaf chamber temperature:
Germany Hareaus high arrucate digital temperature sensor,measuring range :0-60℃,Resolution:0.1℃,Error : ±0.2℃

Leaf temperature:
Platinum resistor,measuring range:0-60℃,Resolution:0.1℃,Error :±0.2℃

Humidity:
Measuring range : 0-100%,Resolution:0.1%,Error≤ 1%

PAR:
With a fixed filter silicon photocell,
measuring range:0-2850µmolm ㎡/s ,accuracy<3µmolm ㎡/s.

Respond wavelength range:400～700nm
Flow measuring:glass rotor flow meter,air pumo flow≤1.5L.Error:3%,<±0.2% during 0.2～0.8L/ min
leaf chamber size:55×20mm,other size can be customized
GPS positioning real time.　　　　　
Operation environment:Temperature : 0℃—60℃,Relative humidity:0-100%(No water vapor condensation)　　　　　　
Powr supply:DC8.4V Li-ion battery,7-9hours contineously work
Datum storage:2GB SD card,can be extended to 4G SD card,can stock thousands of data.

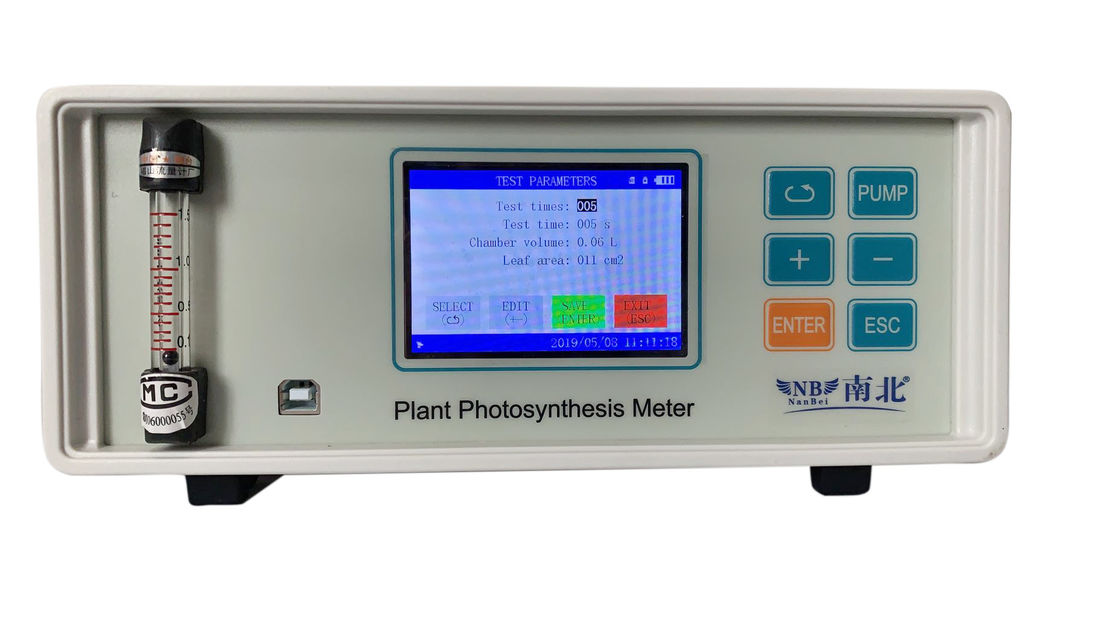

Display:320×160 dot-matrix 　　　　　　　　　　　　　　　　　　　　　　
Dimension:260×260×130mm
Weight : 3.25kg;

Features for Plant Photosynthesis meter
Multifunction: Test photosynthetic rate,transpiration rate,cell CO2 concentration,stomatal conductance and water use efficiency,and CO2 concentration,relative humidity,PAR and air temperature,leaf temperature etc 10 indexes.

Intelligency : Display test result and storage real time.
Small size,light weight,easy to carry and operation.

Wide application : Match different kinds of leaf chamber,it widely used for different kinds of plants,different types leaves testing and soil, seeds and insects breathing.

Optional accessories:
Leaf chamber : (choice one)
Ⅰ:(25×25mm)
Ⅱ:(55×20mm)
Ⅲ:(65×10mm)
Group assimilation box: volume :2升.Other size can be customized
Soil breath machine:Volume : 1.4L,other size can be customized
Light source:External plug LED red blue light source,adjust range :0—3000µmolm ㎡/s.
