Plant living nondestructive testing portable leaf area meter

Leaf area meter

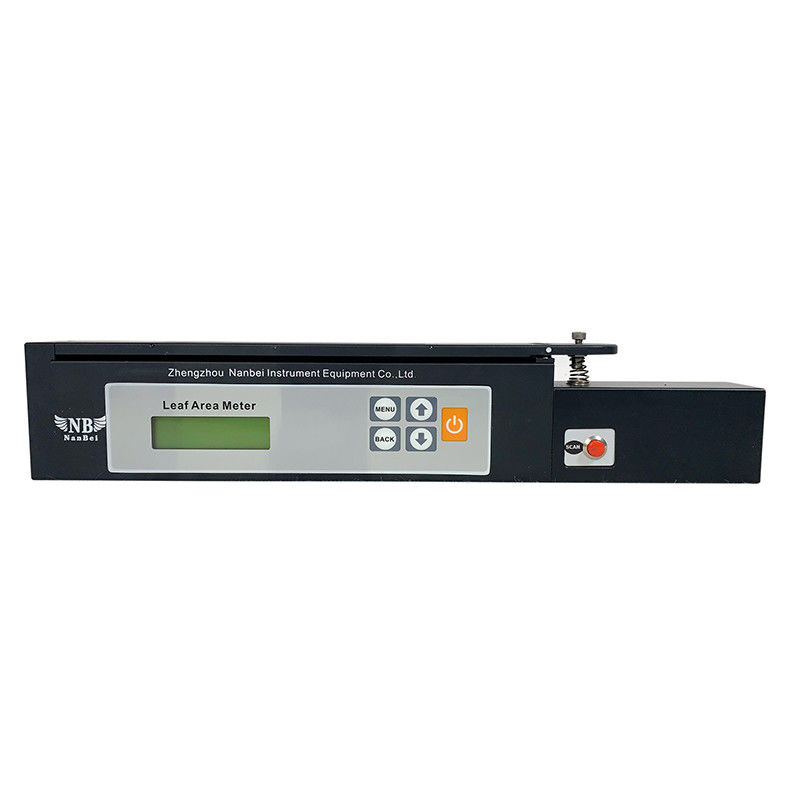

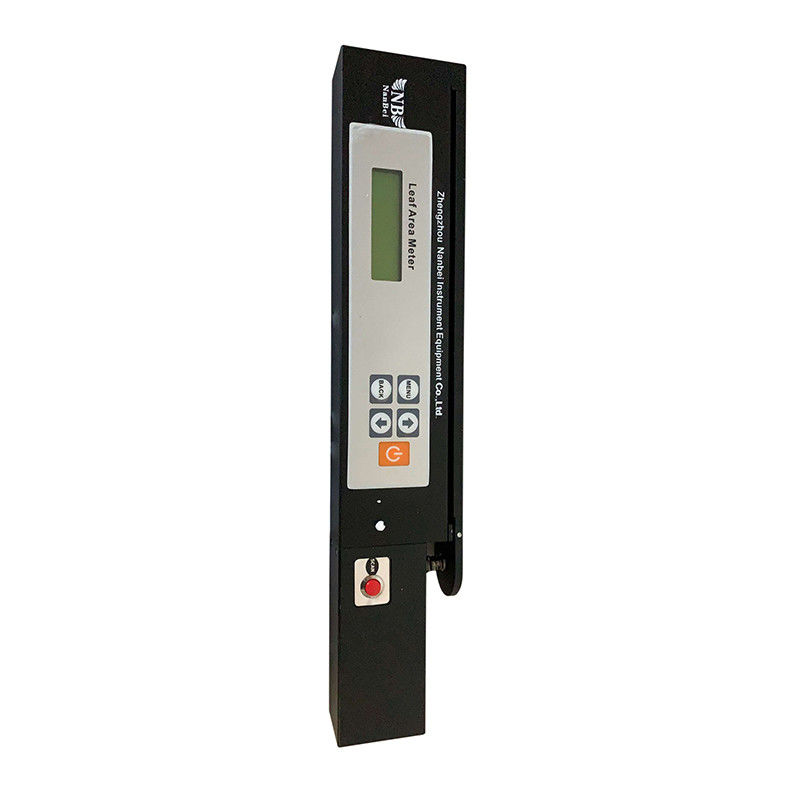

NMJ-D portable leaf area meter is a portable leaf area measuring instrument which is easy to use and can work in the field. The instrument can accurately, quickly and damage-freely measure the leaf area and related parameters of the leaves, and can also measure the area of the picked plant leaves and other sheet objects. Leaf area measuring instrument is widely used in agriculture, meteorology, forestry and other departments.

Features of Leaf area meter

1. The integrated design of the host and the probe is more convenient to operate.

2, using microcomputer technology, LCD liquid crystal display.

3. High-performance built-in rechargeable lithium battery, no external power supply required, low voltage display, more suitable for field measurement.

4. It can measure larger blade area (2000mm × 213mm) at one time.

5, can measure a variety of leaf parameters: leaf area, average leaf area, leaf length, leaf width, length-to-width ratio.

6, can store 5000 sets of data (leaf area, leaf length, leaf width).

7. The instrument comes with time and date functions, which can save the measurement time along with the measurement data, which is convenient for inquiries.

8. You can query historical data on your mobile phone.

9, communication interface: mini USB interface, can import data to the computer.

Technical Parameters of Leaf area meter

Measurement parameters: leaf area, average leaf area, leaf length, leaf width, aspect ratio

Units of measurement: millimeters, square millimeters

Measurement accuracy: ± 2%

Resolution: 0.1mm

Maximum measuring length: 2000mm

Maximum measuring width: 213mm

Maximum measurement thickness: 3mm

Host data storage: 5000 groups

Voltage: 3.7V
