Electric Heating Digital Laboratory Samll Drying Oven With Vacuum Pump

Basic Information
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
Model Number: NBF-6050
Minimum Order Quantity: 1set
Price: USD498-USD928
Packaging Details: Wooden cases and cartons
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability: 500 set/per day
Detail Information
Voltage: 220V 50Hz Power: 1450W
Temp. Range: +10-200 Degree Temp.Resolution: 0.1degree
Vacuum Degree: <133PA Working Temperature: 5-40 Degree
Warranty: 1 Year After-sales Service Provided: Free Spare Parts
High Light:

lab thermostat

,

incubator thermostat


Product Description

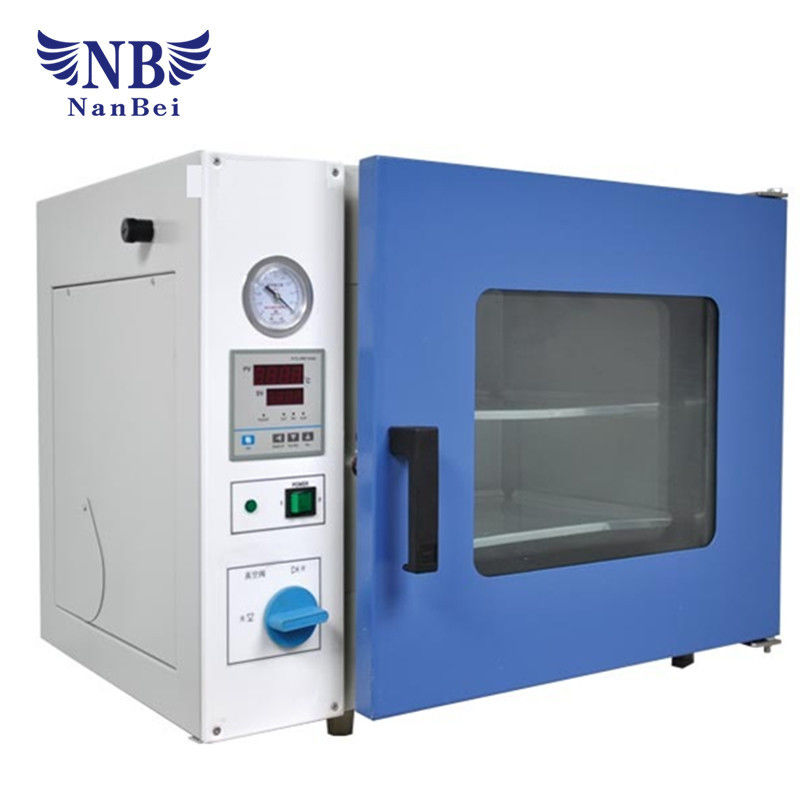

Electric Heating Digital Laboratory Samll Drying Oven With Vacuum Pump





Usage and Application of Samll Drying Oven

Vacuum drying oven designed for drying easy to break down, easy to oxidize and heat-sensitive substances designed to be able to fill the internal inert gas, in particular, some of the complex items can also be quickly dried.

Widely used in chemical, electronics and pharmaceutical industries.





Features of Samll Drying Oven

1. steel, bulletproof double glass doors to observe the work of indoor objects, at a glance.

2. Rectangular studio, so that the effective volume to reach the maximum.

3. The studio is made of stainless steel plate or drawing board to ensure the product is durable.

4. With the timing function of the digital microcomputer temperature controller, temperature control is accurate and reliable.

5. box door closed elastic can adjust the overall shape of the silicone rubber door ring to ensure that the box high vacuum.

6. With "LC" series for the vacuum display control.

7. With "D" series for the intelligent 10-segment programmable LCD controller.



Note:model 6090,6210,6500 and LC series are equiped with vacuum pump

specification test under no load condition:ambient temperature is 20C, and relative humidity is 50%

Options:

1 intelligent programmable LCD temperature controller

2 intelligent programmable temperature controller

3 vacuum pump 2XZ-4(4L/S) allocation special socket(shanghai)

4 dry filter-Jar

5 gas and liquid separator(vacuum liquid dust filter)

6 inert gas valve

7 RS485 Socket

Electric Heating Digital Laboratory Samll Drying Oven With Vacuum Pump 0

Model

NBF-6500

NBF-6500D

NBF-6500LC

NBF-6210

NBF-6210D

NBF-6210LC

NBF-6090

NBF-6090D

NBF-6090LC

NBF-6050

NBF-6050D

NBF-6050LC

NBE-6053

NBF-6051 NBF-6021

NBF-6020

NBF-6020D

NBF-6030A

NBF-6030AD

NBF-6020B

NBF-6030B

NBF-6050B

Voltage 380v 50HZ 220v 50HZ 220v 50HZ 220v 50HZ 220v 50HZ 220v 50HZ 220v 50HZ 220v 50HZ 220v 50HZ
Power 3600w 2200w 1400w 1450W 1450W 450w 450w 450w 350w/450w
Temp. range +10-200℃ +10-250℃ +10-250℃ +10-250℃ +10-200℃ +10-200℃ +10-250℃ +10-250℃ +5-65℃
Temp.resolution 0.1℃ 0.1℃ 0.1℃ 0.1℃ 0.1℃ 0.1℃ 0.1℃ 0.1℃ 0.1℃
Constant volatility ±1℃ ±1℃ ±1℃ ±1℃ ±1℃ ±1℃ ±1℃ ±1℃ ±1℃
Vacuum degree <133Pa <133Pa <133Pa <133Pa <133Pa <133Pa <133Pa <133Pa <133Pa
Working temp. 5-40℃ 5-40℃ 5-40℃ 5-40℃ 5-40℃ 5-40℃ 5-40℃ 5-40℃ 5-40℃
Inner dimension 630*810*845 560*600*640 450*450*450 415*370*345 415*370*345 300*300*275 300*300*275 300*300*300 300*300*275
320*320*300
415*370*345
Size(mm) 790*1030*1855 720*805*1680 610*660*1400 730*560*550 730*560*550 605*490*450 605*490*450 630*510*490 605*490*450
630*510*490
730*560*550
Shelves 4pcs 3pcs 2pcs 2pcs 2pcs 1pcs 1pcs 1pcs NBf-6020b:1
NBf-6030b:1
NBf-6050b:2

Working chamber

material

Stainless steel(1Gr18Ni9Ti) Stainless steel(1Gr18Ni9Ti) Stainless steel(1Gr18Ni9Ti) Stainless steel(1Gr18Ni9Ti) Stainless steel(1Gr18Ni9Ti)

Stainless steel

(1Gr18Ni9Ti)

Stainless steel

(1Gr18Ni9Ti)

Stainless steel

(1Gr18Ni9Ti)

Stainless steel

(1Gr18Ni9Ti)

Timing 1-9999minutes 1-9999minutes 1-9999minutes 1-9999minutes 1-9999minutes 1-9999minutes 1-9999minutes 1-9999minutes 1-9999minutes

Packing and Shipping

Electric Heating Digital Laboratory Samll Drying Oven With Vacuum Pump 1

Electric Heating Digital Laboratory Samll Drying Oven With Vacuum Pump 2
