Max Speed: | 21000r/min | Max RCF: | 46140*g |
---|---|---|---|
Time Range: | 1~99H59min | Speed Accuracy: | ±50r/min |
Capacity: | 6*500ml | Noise: | <=65dBA |
Weight: | 235KG | Dimension: | 865*728*1240mm |
High Light: |
small centrifuge machine,centrifuge laboratory equipment |

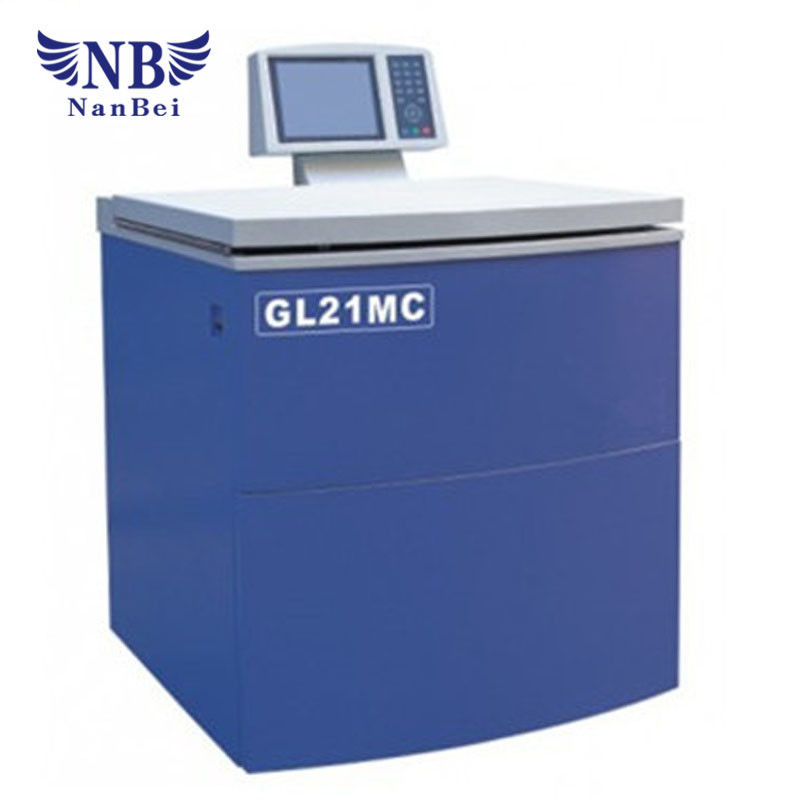

NANBEI Centrifuge In Medical Laboratory High Speed Refrigerated
Brief introduction of centrifuge laboratory medical:
Widely used in the area of animal and plant molecular biology, cell biology, clinical applications, bio-engineering, mass preparation and blood, protein precipitation, Separating the biology, viruses, sub-cell, cell and the chemicals in the cell.
Features of NANBEI centrifuge laboratory medical:
1. Brushless frequency motor in great torque, free maintenance, no carbon dust pollution, quick in speed up and down.
2. Flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration.
3. Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control..
4. Microprocessor control system, the 10 inches LCD display indicates all the parameters in running,
5. There are more than 20 kinds of rotors for your choice, especial the continuous rotors which help you purify a large number of test solution continuously.
6. There are 30 kinds of program and 10 kinds of accelerating and decelerating speed for your choice.
7. ω2t centrifugation is allowed, which make you have the ideal centrifugation result.
8. 20 kinds of rotors for your choice, especial the continuous rotor help you purify a large amount of test solution continuously.
9. Automatically electric lid lock, super speed, over temperature protection and imbalance protection.
10. The centrifuge body is made of high quality steel, safe and reliable.
11. 3 tiers protection steel cover.
Technical parameters: | ||||
Max speed | Max RCF | Time range | Speed accuracy | capacity |
21000r/min | 46140*g | 1~99H59min | ±50r/min | 6*500ml |
Noise | Weight | Dimension | Packaged weight | Packaged dimension |
<=65dBA | 235KG | 865*728*1240mm | 285KG | 1000*850*1510mm |
Temperature range | Temperature accuracy | Power | Rotor identification | Packaged dimension |
-20~40℃ | ±1℃ | AC110/220V, 50-60HZ,35A | Automatic identification | wooden box |

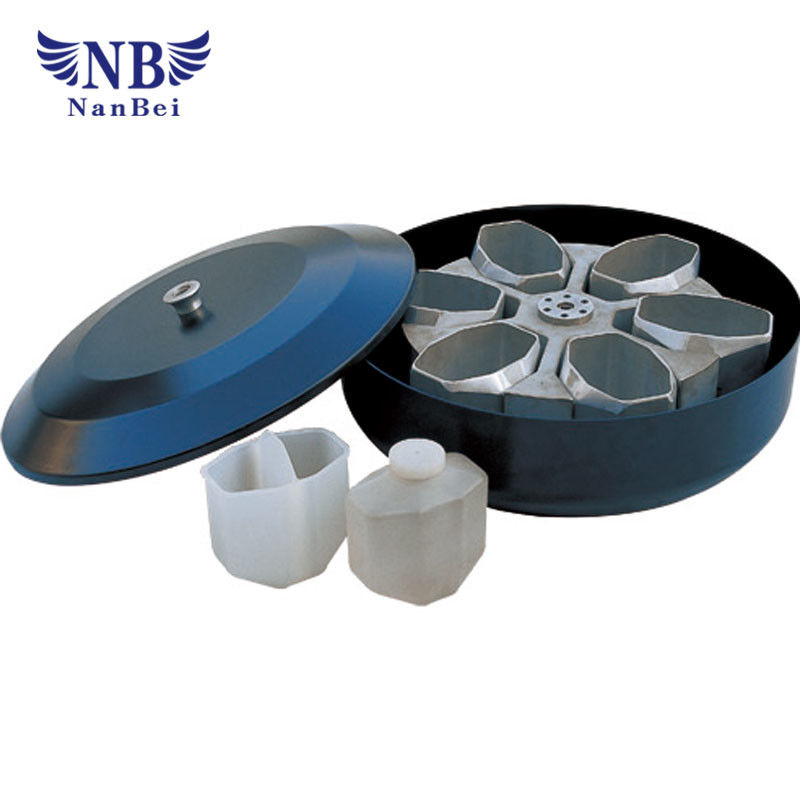

Matched Rotors for GL21MC: | ||||
Order No. | Rotor | Max speed (r/min) | Max capacity (ml) | Max RCF (*g) |
30108 | Fixed rotor | 21000 | 12*10ml | 44440 |
30117 | Fixed rotor | 20000 | 16*10ml | 46140 |
30111 | Fixed rotor | 20000 | 6*50ml | 44700 |
30118 | Fixed rotor | 20000 | 8*30/20ml | 42040 |
30119 | Fixed rotor | 15000 | 8*50ml | 27540 |
30112 | Fixed rotor | 15000 | 6*70ml | 25480 |
30120 | Fixed rotor | 12000 | 8*100ml | 19610 |
30121 | Fixed rotor | 11000 | 4*300ml | 18120 |
30122 | Fixed rotor | 10000 | 6*300ml | 15730 |
30123 | Fixed rotor | 9000 | 6*500ml | 14860 |
30128 | Continuous centrifugal rotor | 17000 | 1000ml | 31390 |
30129 | Continuous centrifugal rotor | 14000 | 1800ml | 21710 |
30130 | Continuous centrifugal rotor | 8000 | 3000ml | 9450 |
30131 | Continuous centrifugal rotor | 8000 | 1800ml | 8600 |
30132 | Interval rotor | 17000 | 1000ml | 31390 |
30133 | Interval rotor | 12000 | 1200ml | 19350 |
30134 | Interval rotor | 10000 | 3000ml | 14890 |
30135 | Vertical rotor | 20000 | 16*5ml | 38340 |
Vertical rotor | 18000 | 8*30ml | 32650 | |
30180 | Swing rotor | 15000 | 4*5ml | 21670 |
30181 | Swing rotor | 13000 | 4*30ml | 23580 |
30182 | Swing rotor | 10000 | 4*50ml | 16240 |
30694 | Bucket rotor | 4000 | 4*4*96holes | 2840 |
30696 | Swing rotor | 4000 | 4*500ml | 3380 |
