Medical Centrifuges - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE/ISO/SGS
Model Number:	TDL5B

Minimum Order Quantity:	1/set
Delivery Time:	5-7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500000

Detail Information

Max Speed:	5000rpm	Max Volume:	4*800ml
Timer:	1～99h59min	Max RCF:	4730*g
Noise:	<=65dBA	Power Supply:	AC 220V 50HZ 15A
High Light:	5000rpm Medical Centrifuges , 4*800ml Medical Centrifuges , 5000rpm large capacity refrigerated centrifuge

Product Description

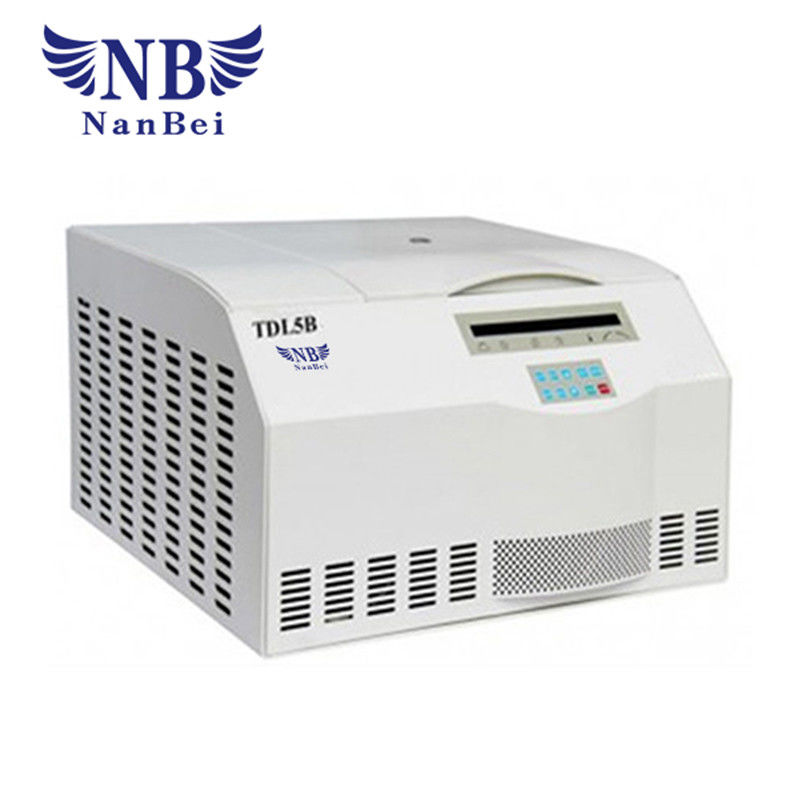

TDL5B 5000rpm large-capacity refrigerated centrifuge

TDL5B large-capacity refrigerated centrifuge

Features:

1. Brushless frequency motor for model TDL5M and brushless DC motor for TDL5 which in great torque, free maintenance, no carbon dust pollution, quick in speed up and down.

2.Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control..

3. Microprocessor control, digital display which indicates the speed, time, RCF in operation, speed raising and reducing quickly, operate simply. Running parameter can be edited.

4. 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.

5. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.

6. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.

7. There are several kinds of rotors for your choice, adapters can be designed by experimental requirements.

8. 3 tiers protection steel cover and get the ideal centrifugation result.

Large Capacity Refrigerated 5000rpm Medical Centrifuges 0

TDL5B Technical Parameters

Max speed:	5000rpm	Max RCF:	4730*g
Max volume	4*800ml	Noise:	<=65dBA
Timer	1～99h59min	Net weight:	125 Kg
Dimension(HDW):	430688715mm	Power supply	AC 220V 50HZ 15A
Temperature range	-20℃~40℃	Temperature accuracy	±1℃
Speed accuracy:	±20rpm	Package	wooden box

Matched Rotors for TDL5B

Order No.	Model	Max speed (rpm)	Max Volume(ml)	Max RCF (g)
No.30671	Swing out rotor	4000	4x800ml (round cup)	3450
Adapters for 4*800ml (round cup) swing rotor for 5ml, 7ml, 10ml, 15ml, 50ml, 100ml, 250ml, 500ml tubes
No.30696	Swing out rotor	4000	4*500ml (square cup)	3310
No.31277	Swing out rotor body
	Matched Buckets for the swing out rotor body	5000	4*50ml	4420
			4*100ml
		4000	8*50ml	2950
			16*15ml
			24x15ml
		4000	24*10/7ml vacuum tube	2580
			16*10ml vacuum tube	2580
No.31377	Matched Buckets for the swing out rotor body	5000	32*10ml vacuum tube	2580
			32*7ml vacuum tube adapter
			32*5ml vacuum tube adapter
			24*10ml vacuum tube	2580
			24*7ml vacuum tube adapter
			24*5ml vacuum tube adapter
			16*10ml vacuum tube	2580
			16*7ml vacuum tube adapter
			16*5ml vacuum tube a
