Medical Centrifuges - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE/ISO/SGA
Model Number:	TGL16

Minimum Order Quantity:	1/set
Delivery Time:	5-7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000000

Detail Information

Max Speed:	16000r/min	Max Volume:	6×100ml
Max RCF:	20600×g	Temperature Range:	-20°C～40°C
Noise:	≤58dBA	Power Supply:	AC 220V 50HZ 10A
High Light:	TGL16 High Speed Refrigerated Centrifuge , 16000r/Min High Speed Refrigerated Centrifuge , 16000r/Min large capacity refrigerated centrifuge

Product Description

16000r/min TGL16 table top high speed refrigerated centrifuge

Features:

Brushless DC motor for TGL16 which in great torque, free maintenance, no powder pollution, quick in speed up and down.

The flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration.

Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.

There are16 kinds of rotors for your choice.

Micro computer control system, digital display the temperature,time and speed. There are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice.

Automatically electric lid lock, super speed,over temperature protection and imbalance protection.

The centrifuge body is made of high-quality steel, safe and reliable.

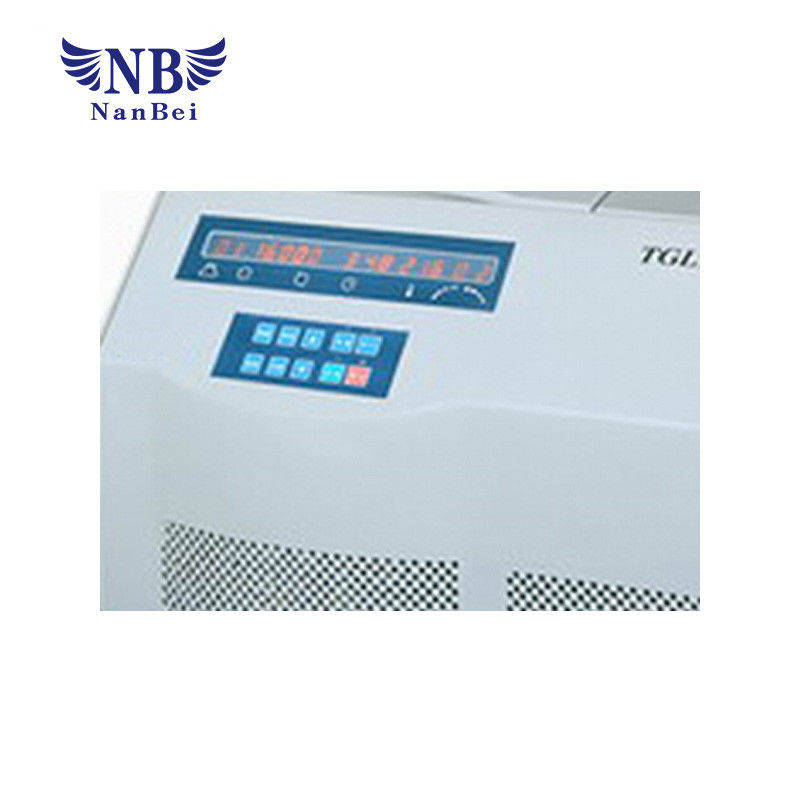

16000r/Min TGL16 Table Top High Speed Refrigerated Centrifuge 0

More Details Picture:

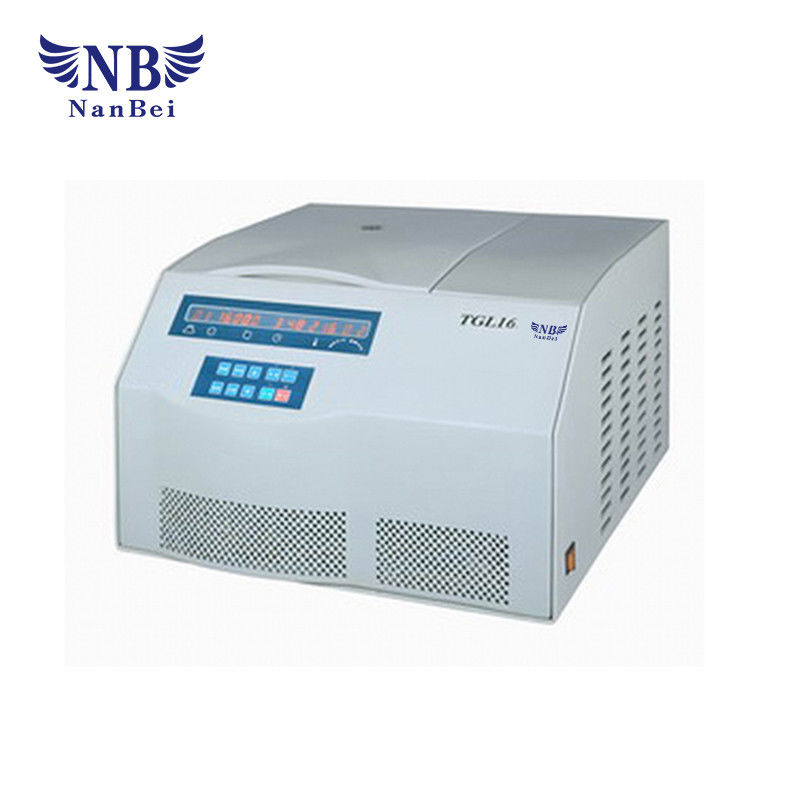

16000r/Min TGL16 Table Top High Speed Refrigerated Centrifuge 1

max speed	16000r/min	max RCF	20600×g
max volume	6×100ml	temperature range	-20°C～40°C
timer	1～99h/59min	noise	≤58dBA
dimension	608×576×380	net weight	82　KG
speed accuracy	±50r/min	power supply	AC 220V 50HZ 10A
Temperature Accuracy	±1°C	Model	TGL16

Technical parameter:

Matched rotor available

Rotor	Max speed r/min	Volume ml	Max RCF ×g
Angle rotor	16000	12×1.5/2ml	16270
Angle rotor	14000	40×0.5ml	19970
Angle rotor	15000	24×1.5/2ml	20600
Angle rotor	13500	30×1.5/2ml	19340
Angle rotor	15000	16×5ml	19350
Angle rotor	14000	12×7ml	16370
Angle rotor	10000	12×15ml	11840
Angle rotor	12000	12×10ml	14510
Angle rotor	12000	8×20ml	14510
Angle rotor	12000	6×30ml	14000
Angle rotor	10000	6×50ml	11140
Angle rotor	10000	6×70ml	10810
Angle rotor	10000	4×100ml	10310
Angle rotor	8000	6×100ml	7280
Angle rotor	14000	6×10ml	16460
Angle rotor	15000	30×0.5ml	18510
Angle rotor	11000	48×1.5/2ml	12840
Swing rotor	15000	4×5ml	19920
Vertical rotor	16000	16×5ml	16540
Microplate rotor	4000	2×3×48 holes	2300

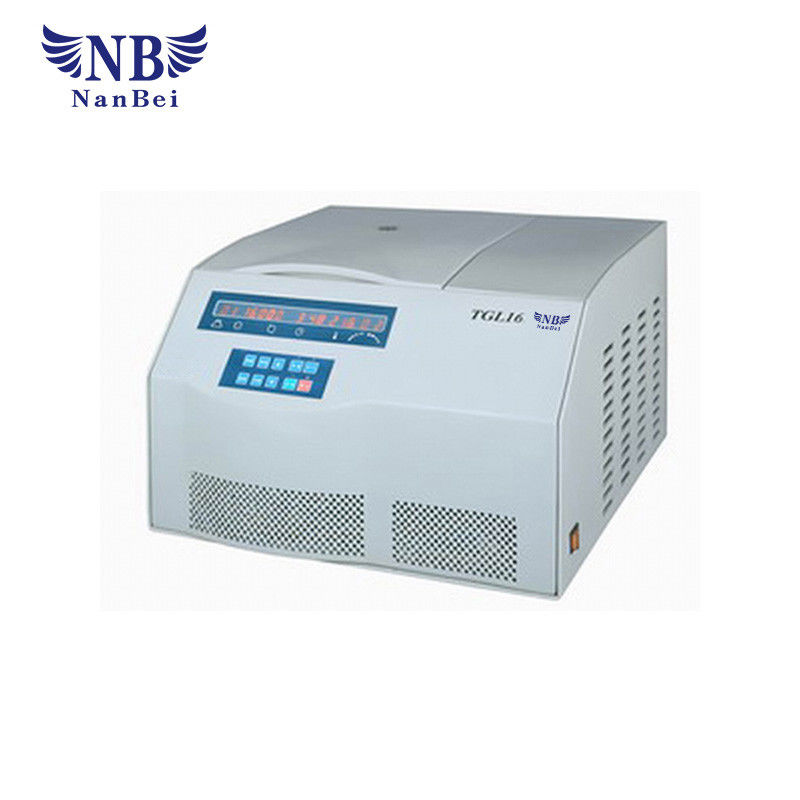

16000r/Min TGL16 Table Top High Speed Refrigerated Centrifuge 4

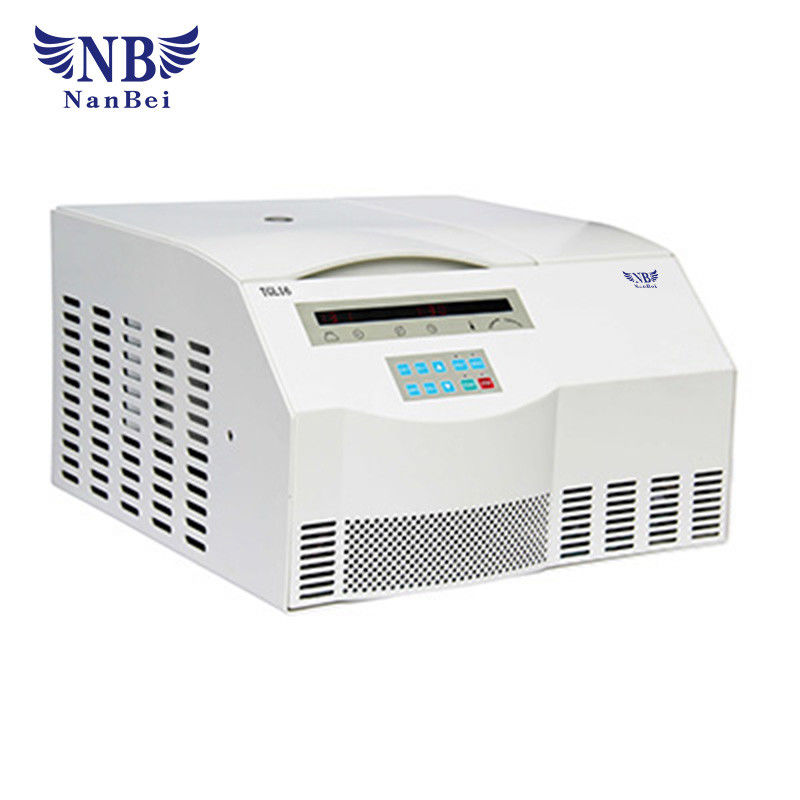

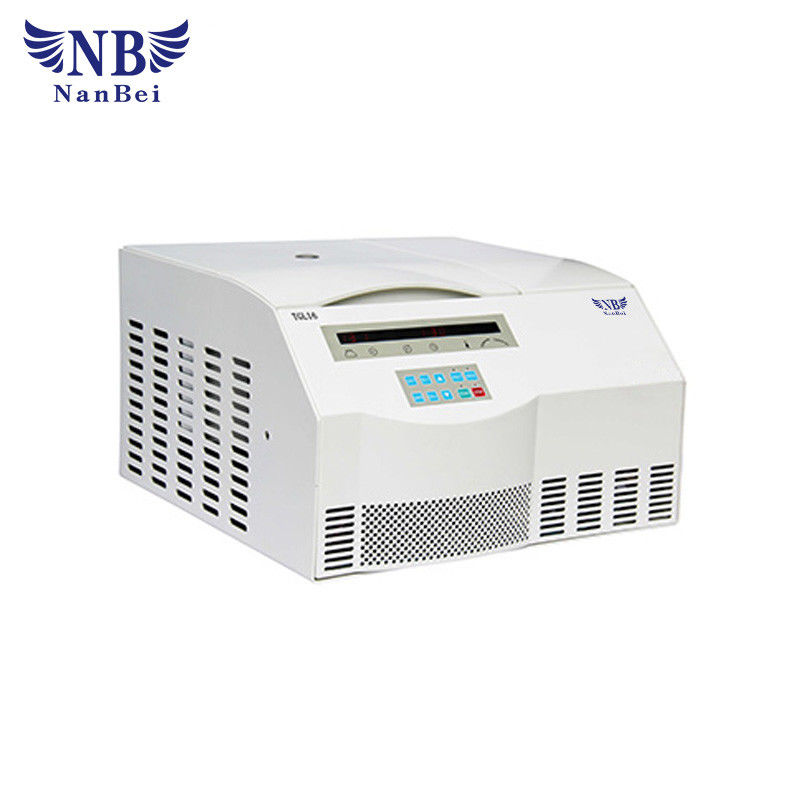

16000r/Min TGL16 Table Top High Speed Refrigerated Centrifuge 5
