Medical Centrifuges - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO

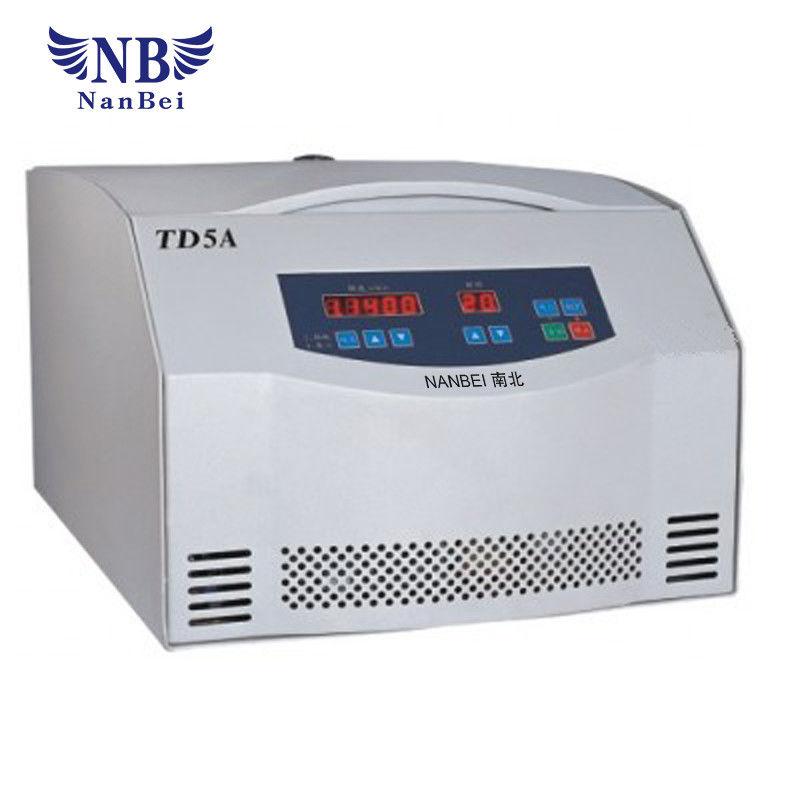

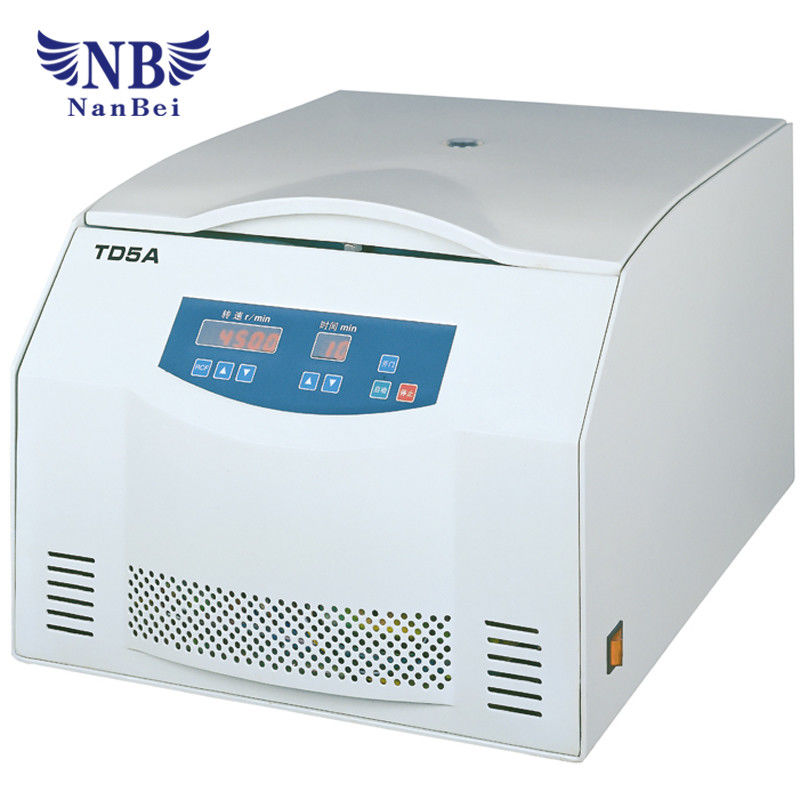

Model Number:	TD5A

Minimum Order Quantity:	1set
Price:	USD668-USD1369/set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:	500 set/per day

Detail Information

Max Speed:	5000rpm	Max RCF:	4730*g
Noise:	≦45dBA	Weight:	52KG
Time Range:	0~99min	Max Capacity (ml:	4*300ml
Dimension:	621450360mm	Speed Accuracy:	±10r/min
High Light:	laboratory centrifuge machine , small centrifuge machine

Product Description

Brief introduction of medical centrifuge:

Widely used in the laboratory of biology, medicine, chemistry and physics, which is the ideal instrument for separating the blood, plasma, urine in the hospital.

Features of NANBEI medical centrifuge:

1. Brushless DC motor, no carbon dust pollution, unnecessary to maintain, quick in speed up and down.

2. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.

3. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.

4. Microprocessor control, TD5A with digital display and TD5C with LCD display which indicate the speed, time, RCF in operation, speed raising and reducing quick, operate simply.

5. 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.

6. 3 tiers protection steel cover and get the ideal centrifugation result.

Medical portable stem cell refrigerator centrifuge machine with CE 0

Max speed	Max RCF	Time range	Max capacity (ml)	Speed accuracy
5000rpm	4730*g	0~99min	4*300ml	±10r/min
Noise	Weight	Dimension	Packaged weight	Packaged dimension
≦45dBA	52KG	621450360mm	75KG	780525500mm

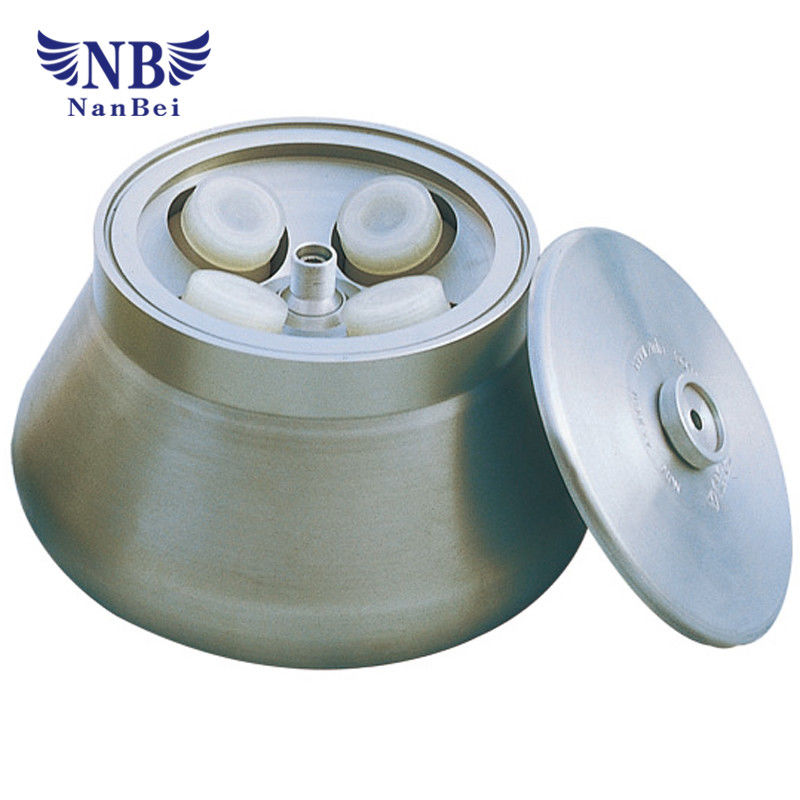

Order No.	Rotor	Max speed (r/min)	Max capacity (ml)	Max RCF (*g)
No.31377	Swing rotor	5000	Available for the next tube holder and tube rack.
			4*50ml	4*50ml
			4*100ml	4*100ml
No.31378	Swing rotor	4000	Available for the next tube holder and tube rack
			8*100ml	3020
			8*50ml	3200
			16*15ml	3200
			24*15ml	3200
			32*15ml	3200
			48*7ml vacuum tube	2880
			32*10ml	2790
			24*10ml	2790
			16*10ml	2920
No.31392	Swing rotor	4000	4*250ml	2920
No.31389	Swing rotor	4000	88*5ml vacuum tube	2840
No.31389	Swing rotor	4000	124*5ml vacuum tube	2840
No.31390	Swing rotor	4000	88*7ml (vacuum tube)	3140
No.31390	Swing rotor	4000	124*7ml vacuum tube	3140
No.31491	Plate bucket	4000	2496holes	2490
No.31376	Plate bucket	4000	2348holes	2300
No.30627	Angle rotor	5000	30*15ml	3830
No.30638	Angle rotor	5000	6*15ml	2540
No.30607	Angle rotor	5000	12*15ml	3080
No.30639	Angle rotor	5000	24*15ml	3500
No.30640	Angle rotor	5000	4*50ml	2520
No.30611	Angle rotor	5000	6*50ml	2850
No.30641	Angle rotor	5000	12*50ml	3860
No.30642	Angle rotor	4000	24*50ml	2970
No.30613	Angle rotor	5000	4*100ml	2630
No.30614	Angle rotor	5000	6*100ml	3130
No.30643	Angle rotor	4000	12*100ml	2970
