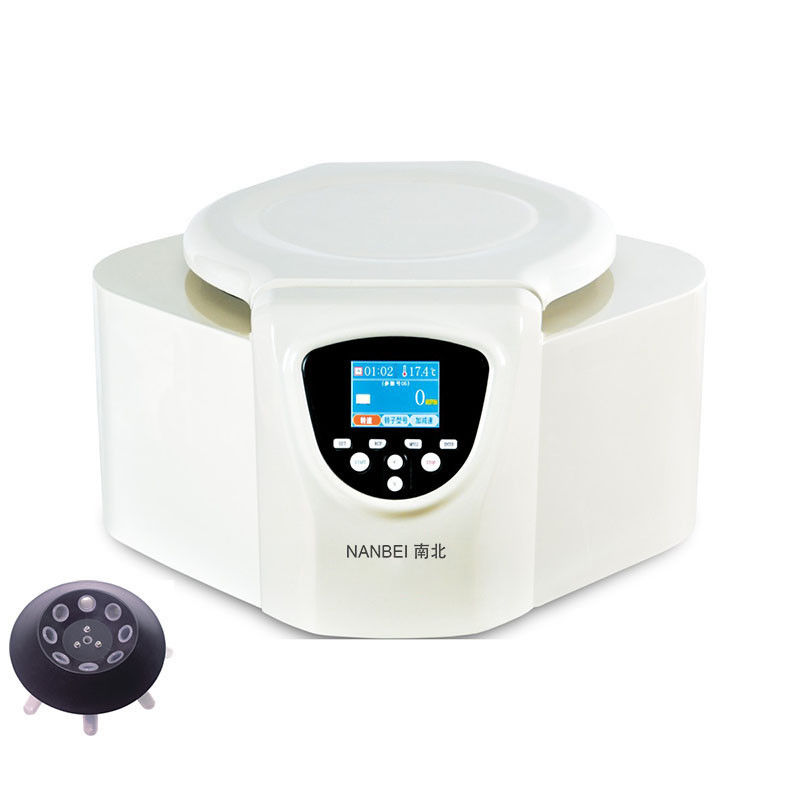

Laboratory digital table top low speed prp centrifuge machine
TD4 benchtop low speed centrifuge
Application of low speed prp centrifuge machine
This centrifuge has high security, excellent quality and reasonable price advantage. It is a routine equipment for separation and preparation of suspended liquids. It is an essential laboratory centrifugal separation basic instrument for various laboratories, hospitals and universities.
Characteristic of low speed prp centrifuge machine
1. It adopts Infineon's single-chip microcomputer and Infineon's drive module, cooperates with independent research and development control board and high-torque DC brushless motor, and has stable operation and low noise, providing a comfortable laboratory environment.
2. It has many warning functions such as overspeed, over temperature, unstable, under-voltage and over-voltage, three-stages damping and shock absorption, special combination damping device, which makes the motor run safely and reliably, prevent the sample from resuscending to achieve excellent centrifugal effect.

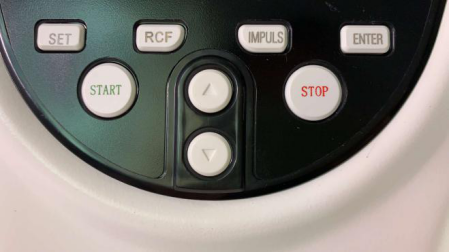

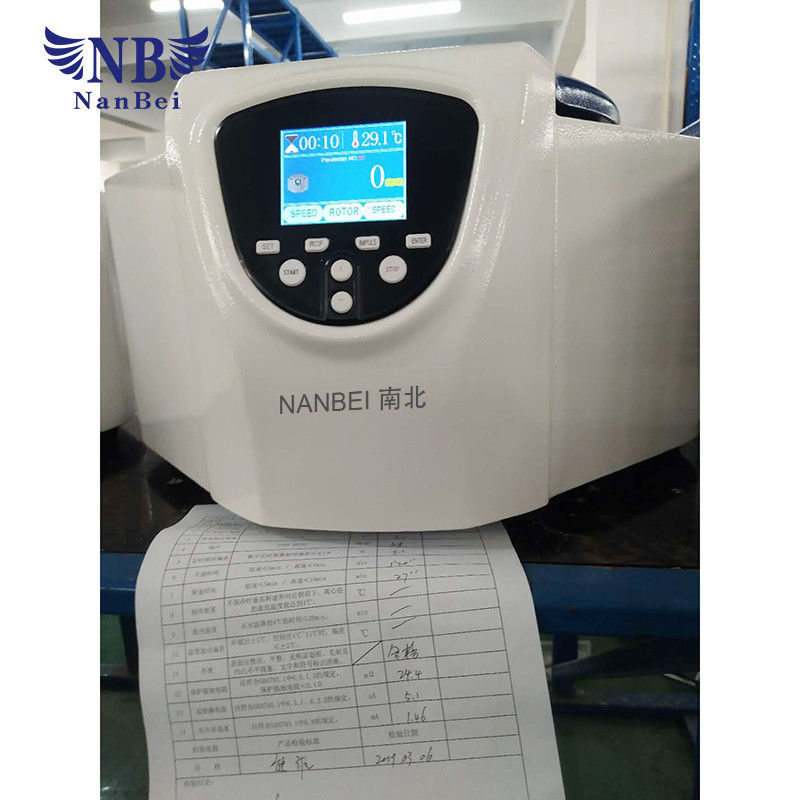

3. Use TFT-LCD true color display, with touch screen button and physical button dual operation mode, also has special button for centrifugal force display, display setting parameters and running parameters at the same time, parameters can be changed at any time during operation, no need to stop, the operation interface is intuitive, simple and easy to use; the operation menu is available in multiple languages (Currently Chinese, English, Russian, Portuguese).
4. Bio-safety airtight angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spillage and fully guarantee the safety of workers and laboratory environment.

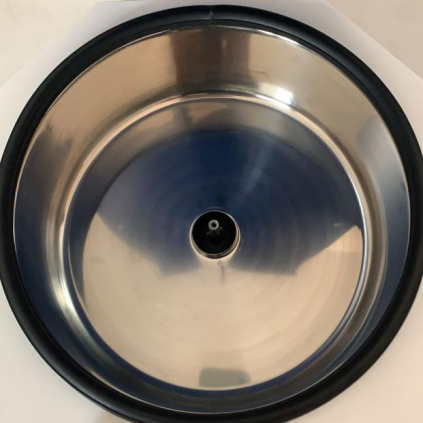

5. Rear austenitic 304 stainless steel centrifugal chamber with all-steel spray-coated outer casing, one-piece stamped steel front face and three-layer steel protective cover, etc., which are sturdy and durable, ensuring the safety of workers and laboratories. .
6.100V-230V wide voltage design, improve the range of the centrifuge's voltage (optional).
7. The mute electro-mechanical motor lid lock is easy to use. Simply close the lid, the lid lock system will be triggered and the door cover will be locked safely.
8.10 speed of acceleration and 10 speed reduction rate control, can store 20 sets of user-defined programs, convenient to use common programs, starting-up is the last time used program.
9. Our factory has CFDA filing and CFDA production qualification, and has passed ISO 9001 certification and ISO 13485 certification.
| TFT-LCD true color display, touch screen button and physical button dual operation mode, the operation menu is available in multiple languages(Chinese, English, Russian, Portuguese). |
|
 |
Rear austenitic 304 stainless steel centrifugal chamber with all-steel spray-coated outer casing, one-piece stamped steel front face and three-layer steel protective cover, etc., which are sturdy and durable, ensuring the safety of workers and laboratories. |
| 8*20ml angle rotor and 24*10ml angle rotor two rotor for you choose |
 |
 |
10 speed of acceleration and 10 speed reduction rate control, can store 20 sets of user-defined programs, convenient to use common programs, starting-up is the last time used program. |
| Technical Parameters |
| Product Name |
TD4 |
| Max Speed(r/ min) |
4000 |
| Max Rcf(×g) |
2600 |
| Max Capacity |
8×20 ml |
| Timer |
±50r/min |
| Speed Accuracy |
1-99h59min/Series/Short-time centrifugation |
| Noise |
≤60dB |
| Total Power
|
120W |
| Power supply |
AC220V 50Hz |
| Net Weight (with rotor) |
18 Kg |
| Size(L×W×H) |
380×260×310 mm |

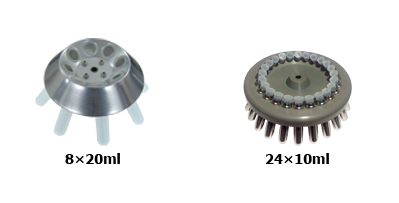

Optional fittings rotor:
| 8*20ml angle rotor |
24*10ml angle rotor |
