Name: | Kjeldahl Nitrogen Analyzer | Test Element: | Protein;Nitrogen Compounds |
---|---|---|---|
Work Theory: | Kjeldahl Distillation | Automatic: | Semi-Automatic |
Measure Range: | 0~200mgn | Test Sample: | Grain,Food,Feed,Seed Etc |
Test Sample Type: | Solid,Liquid | Warranty: | 12 Months |
High Light: |
kjeldahl auto analyzer,automatic nitrogen analyzer |

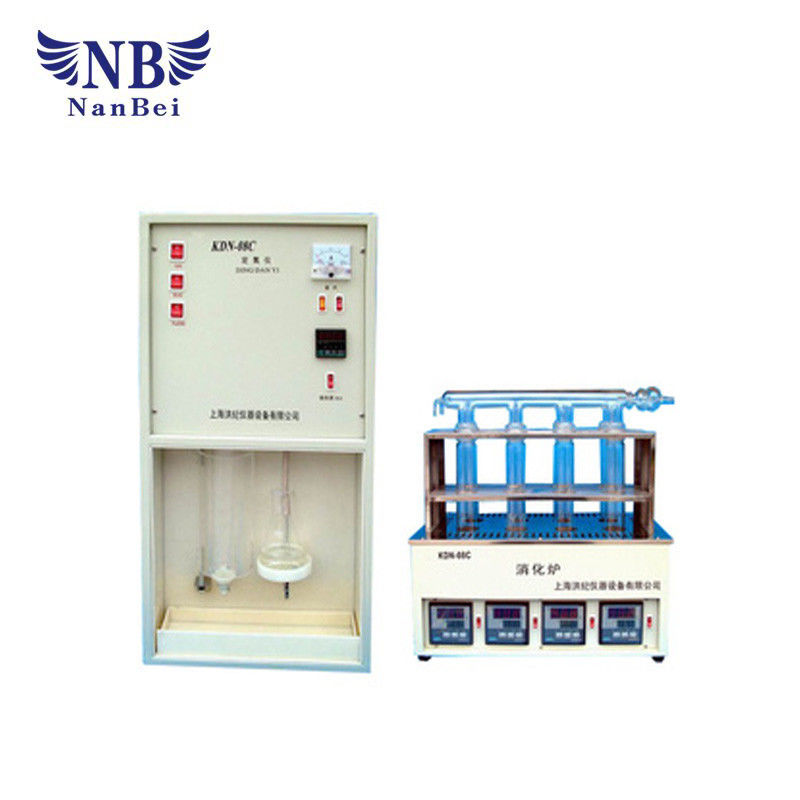

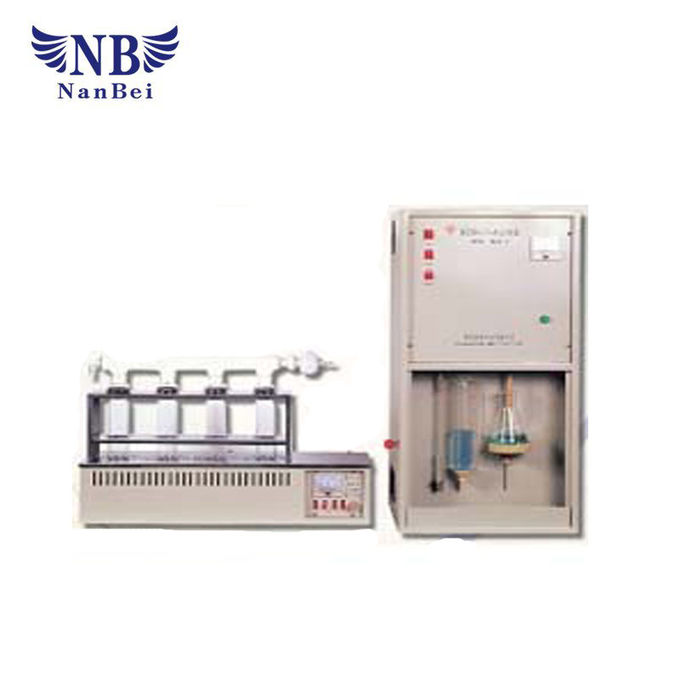

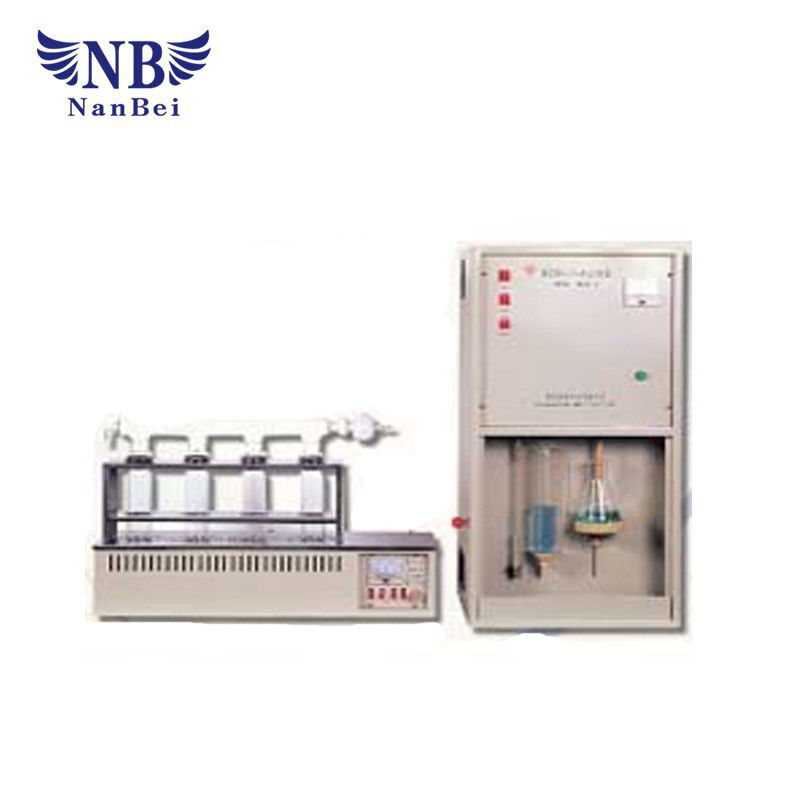

Food Kjeldahl Nitrogen Analyzer Feed Protein Content Test ISO Certification

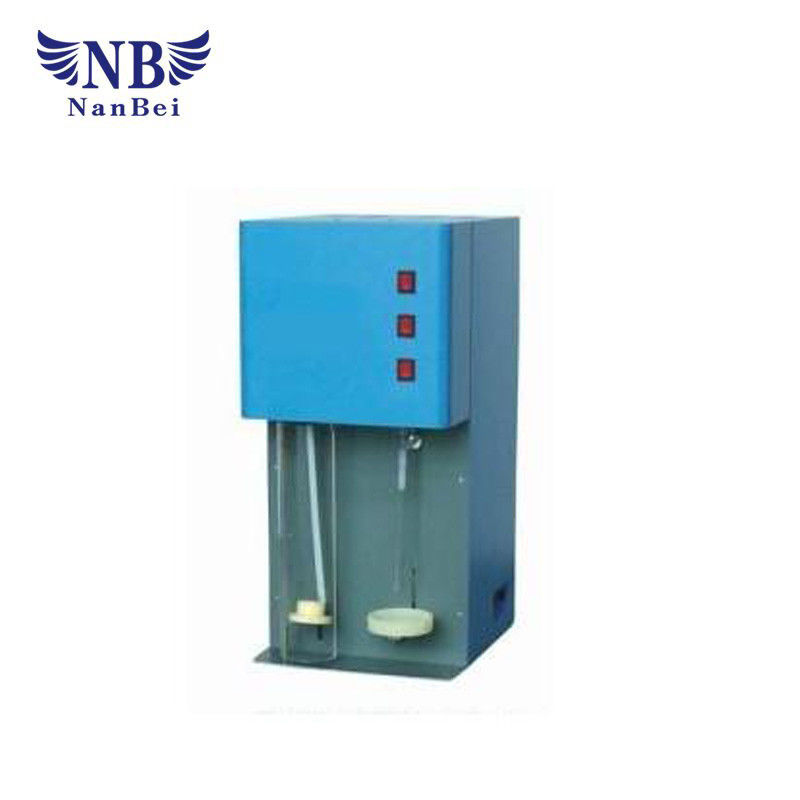

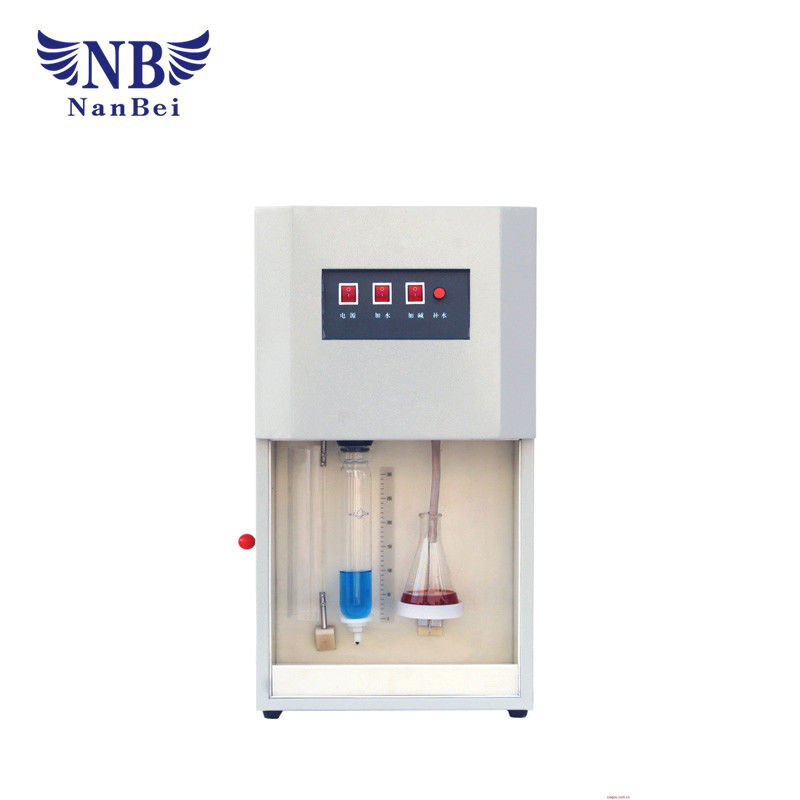

Brief introduction of Semi-Auto Kjeldahl Nitrogen Analyzer :
Kjeldahl nitrogen apparatus is an instrument that calculates the protein content by determining the nitrogen content of the sample according to the principle of constant nitrogen content in the protein. Because of its protein content measurement method is called Kjeldahl nitrogen method, it is called Kjeldahl nitrogen instrument, also known as nitrogen analyzer, protein analyzer, crude protein analyzer.
Features of Semi-Auto Kjeldahl Nitrogen Analyzer:
1. Adopt microcomputer controlling process
2. Automatically control distills, add water, control water level and cut off water supply
3. Various security protections: digestive system security device, steam generator water shortage alarm, water level detection fault alarm
4. Instrument shell adopts specially made plastic spray steel; working area adopts ABS anticorrosive board. Avoid chemical reagent corrosion and mechanical surface damage, acid proof and alkali proof.
5. Once detected fault, controlling system will power off automatically
6. Adopt tap water source, wide adaptability, and requirement for test is low.
Measuring varieties | Grain, feed, food, dairy products, drink, soil, medicine, precipitate, chemicals and so on |
Working mode | Semi-automatic |
Water-in mode |
Tap water and distilled water
|
Sample quantity |
Solid: 0.20g-2.00g, Semisolid: 2.00g-5.00g Liquid: 10.00ml-25.00ml
|
Measuring range |
0.1mgN-200mgN (mg nitrogen)
|
Recovery rate | ≥99% (relative error, including digestive process) |
Distillation speed | 5-15 min/sample (according to sample amount) |
Cooling water consumption |
3L/min
|
Repetition rate |
relative standard deviation <±1%
|
Power |
AV 220V/50Hz, 1000W
|
Water supply |
Water pressure >1.5MPa Water temperature<20°C |
