Water Analysis Instrument - Nanbei Instrument Limited

Place of Origin:	China
Brand Name:	NANBEI
Certification:	CE,ISO
Model Number:	JPSL-606L DO Analyzer

Minimum Order Quantity:	1set
Price:	USD1109-USD1538/set
Packaging Details:	Wooden cases and cartons
Delivery Time:	7-10days
Payment Terms:	TT, LC, Paypal, Western Union, MoneyGram…
Supply Ability:	500 set/per day

Detail Information

Product Name:	Colorimeter, Portable Residual Chlorine Meter, Oil Moisture Analyzer, Portable Precision Turbidimeter, Online Cod	Power Supply:	220VAC, 3.7V 4000mAh Rechargeable Battery, AC 220V ± 10%, Four AA Batteries, 50/60HZ
Measurement Range:	Optical Pathop), 10μg ~ 50 Mg, 0-1000mg/L(COD), 0-20mg/L, 0~200NTU	Weight:	0.5kg, 50kg, 2kg, 3.5 Kg
Indication Error:	± 6%, ± 5%	Repeatability:	≤0.03, <1%(Deviation Of D50 On National Standard Samples)
Indication Stability:	≤ ± 0.3% FS	Working Temperature:	-10 ℃~+50 ℃
High Light:	dissolved oxygen analyzer , dissolved oxygen controller

Product Description

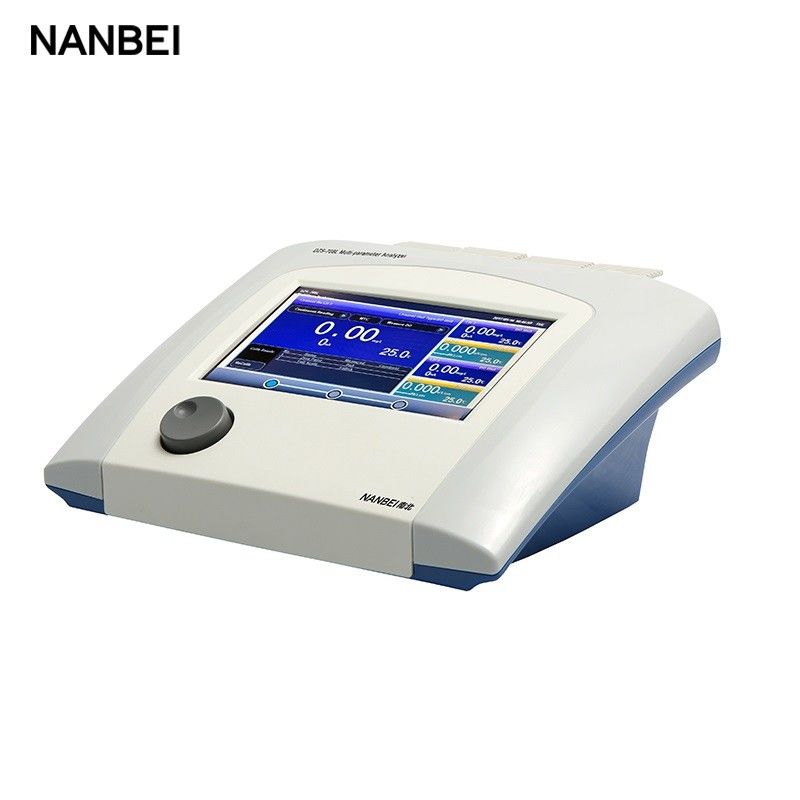

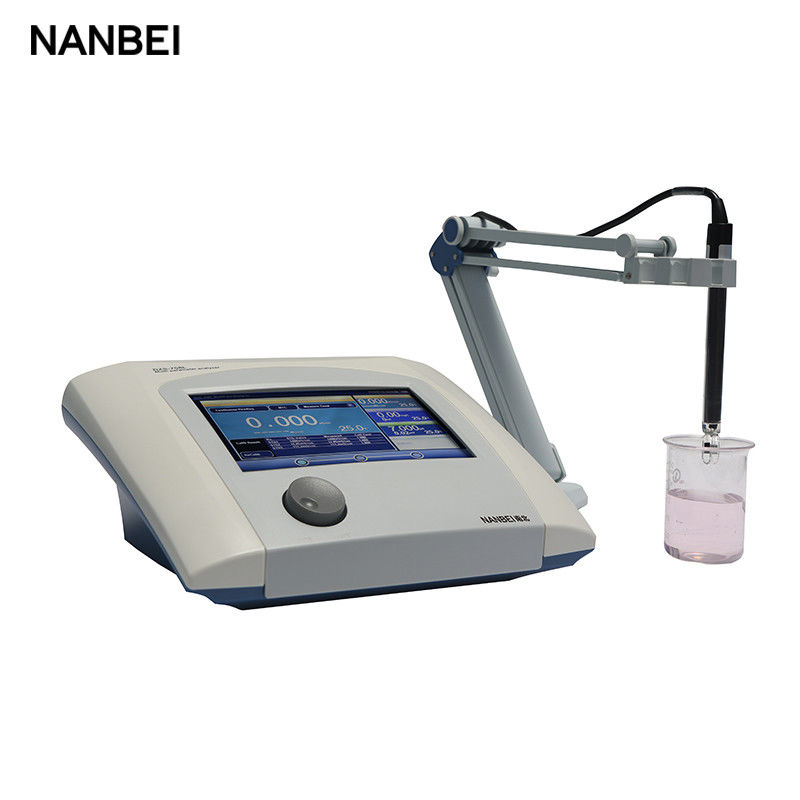

JPSJ-606L Dissolved Oxygen Analyzer , Dissolved Oxygen Controller

Brief introduction of DO meter

Dissolved oxygen analyzer is the determination of dissolved oxygen in water device, the working principle is oxygen through the diaphragm by the working electrode reduction, resulting in oxygen concentration is proportional to the diffusion current, by measuring this current, the concentration of dissolved oxygen in water.

It can be used to measure processes that are used to affect the reaction rate, process efficiency, or the environment, such as aquaculture, biological reactions, environmental testing (lake, creek, ocean), water / wastewater treatment, and wine production.

Dissolved Oxygen Analyzer Controller 0

Features of NANBEI DO meter:

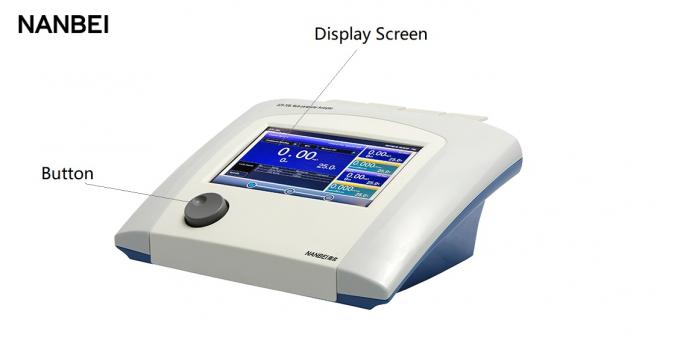

1. Bigger color touch screen with navigation operation;

2. Smart operation system, support functions such as methods management, electrode management, calibration management, data management, user management etc.

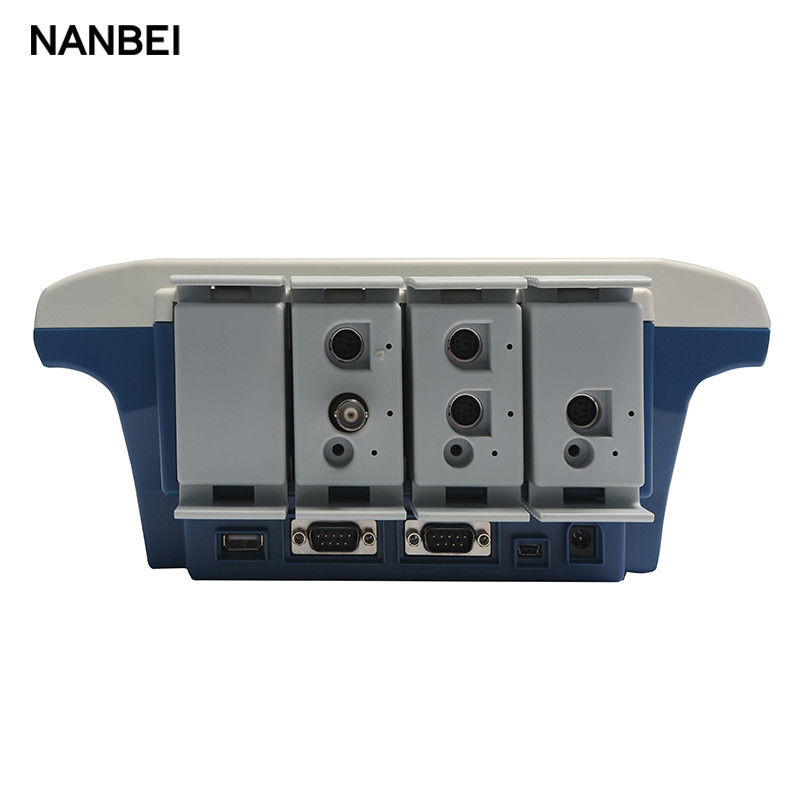

3. To support electrode management, up to 5pcs DO probes, each can store 20 sets of calibration records;

4. To support zero calibration and full scale calibration;

5. To support pressure and temperature compensation;

6. To support firm ware upgrade and contact with PC or auto sample;

7. To support storing 100 sets of measurement methods and 1000 sets of results;

8. To meet GLP norm;

Model Specifications		JPSJ-606L
Range	DO	(0.00～90.00)mg/L
	DO Saturation	(0.0～600.0)%
	Temp	(-5.0～130.0)℃
Resolution	DO	0.01mg/L
	DO Saturation	0.1%
	Temp	0.1℃
Accuracy	DO	±0.10mg/L
	DO Saturation	±2.0%
	Temp	±0.1℃
Pressure compensation		(60.0～110.0)kPa
Salinity compensation		(0.0～50.0)g/L
Power		AC Adapter (Input:100-240VAC,1.35A；Output:24VDC,3A)
Dimension(mm)；Weight(kg)		280×280×130；2.5
