Output: | 4-20mA And 2 Relays, 3-way 4-20mA | Warranty: | 12months, 1 Year |
---|---|---|---|
Usage: | Automatic Testing Machine, Water Analysis | Ndication Error: | ± 6%, ± 5% |
Indication Stability: | ≤ ± 0.3% FS | Working Temperature: | -10 ℃~+50 ℃ |
Sensitivity: | 1μg H2O, 0.1ugH2O | Test Content: | Ammonia Nitrogen |
High Light: |
dissolved oxygen meter,dissolved oxygen analyzer |

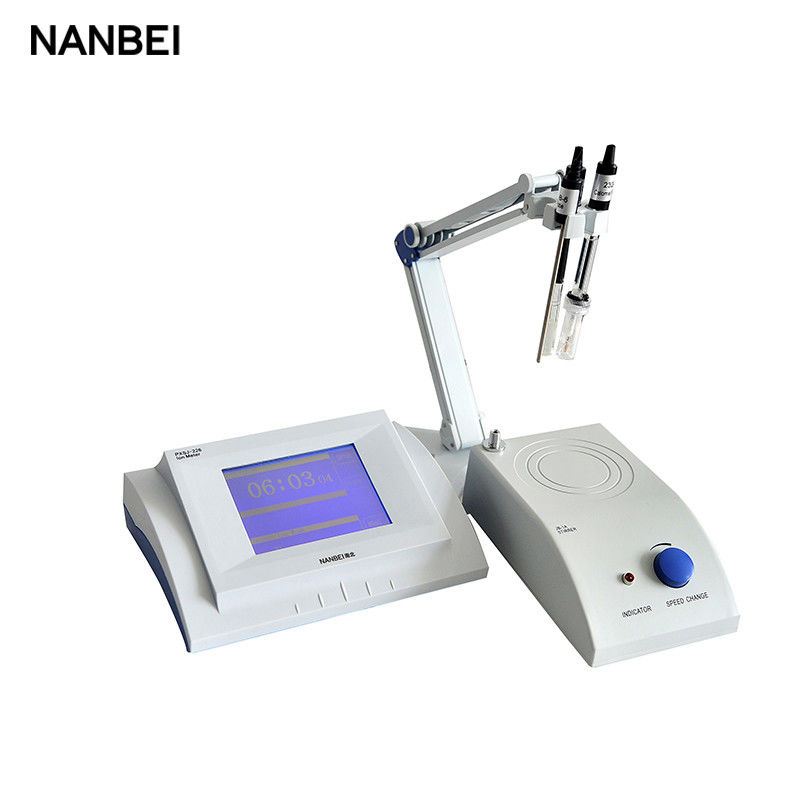

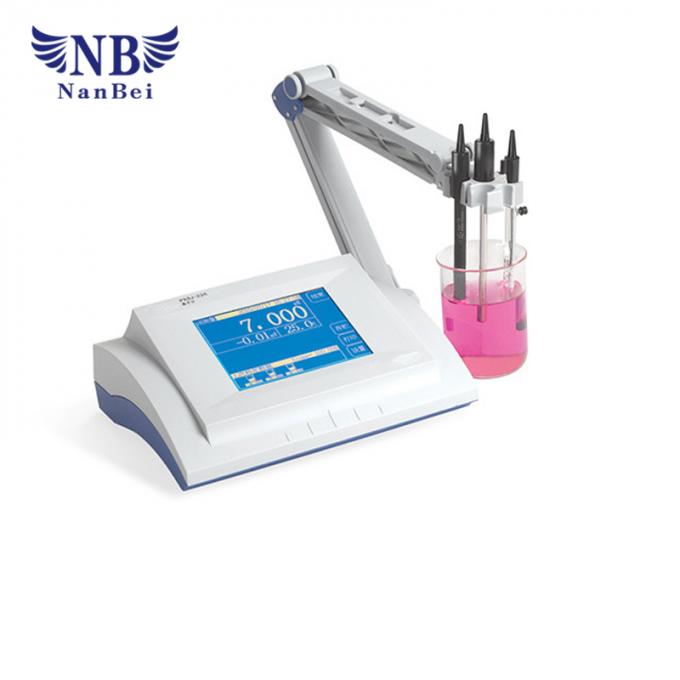

Brief introduction of ion meter
The ion meter is an electrochemical analyzer used to measure the ion concentration in a solution. Measurement of H + also belongs to the ion meter, we generally call its PH meter or acidity meter, the general people refer to the ion meter is measured in addition to H + other than the electrochemical electrochemical instruments.
Features of NANBEI ion meter:
1. Touch, 5" LCD screen.
2. GLP norm, more complete checking the stored information.
3. Support save, delete, print and view function.
4. Automatic 10 buffers recognition, support Custom Buffer Group.
5. RS232 and USB interface, establish communication with PC.
Model | PXSJ-226 |
Parameters | pX / Ion concentration / mV (ORP) /℃ |
Range | pX: 0.000~14.000 |
mV: ±1999.99 | |
Ion Concentration: (0~19990), unit ug/L,mg/L,g/L,mol/L,mmol/L | |
Temp: -5.0~105.0℃ | |
Resolution | pX: 0.001 |
mV: 0.01 | |
Temp: 0.1℃ | |
Accuracy | pXⅠ:±0.002±1 bit pXⅡ: ±0.005±1 bit |
mV: ±0.03%FS | |
Ion Concentration: ±0.5%±1bit | |
Temp: ±0.2℃±1 bit | |
Ion Mode | Support multiple common ion mode (such as H+,Ag+,Na+,K+,NH4+,Cl-,F- etc…) |
Custom ion mode | |
Temp Compensation | Manual/Auto(0.0~60.0℃ |
Calibration | Five-point calibration |
GLP standard | Yes |
Buffer Recognition | Auto-recognition, Up to 10 Buffers |
Data Storage | 350 sets of data |
View, Delete & Print | Yes |
Display | Touch, 5" LCD screen |

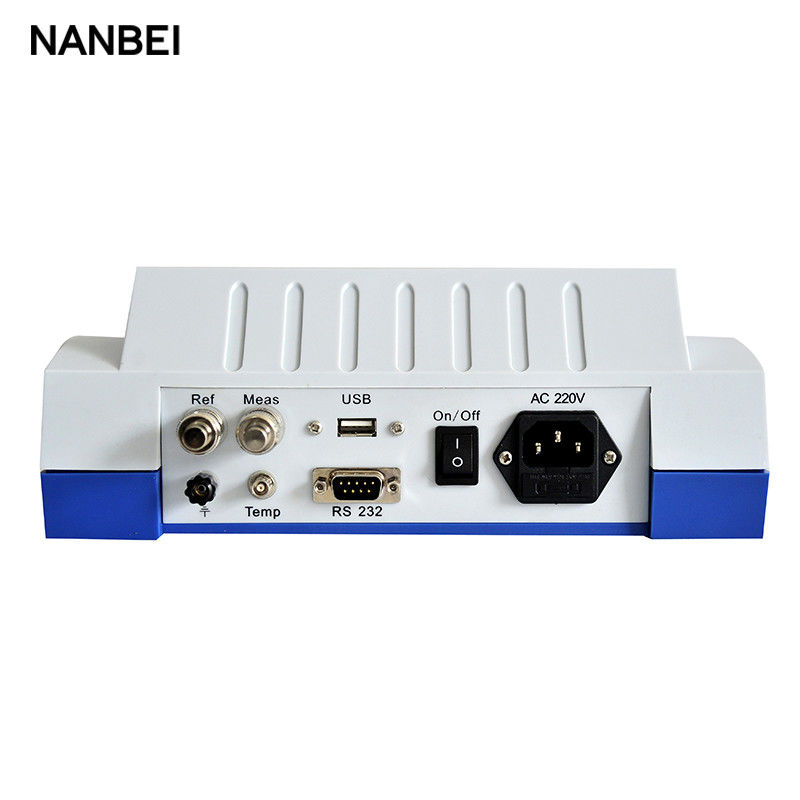

Communication Interface | RS-232, USB |
Power | AC (220±22)V; (50±1)Hz |
Dimension&Weight | 250×195×100(mm), 2kg |

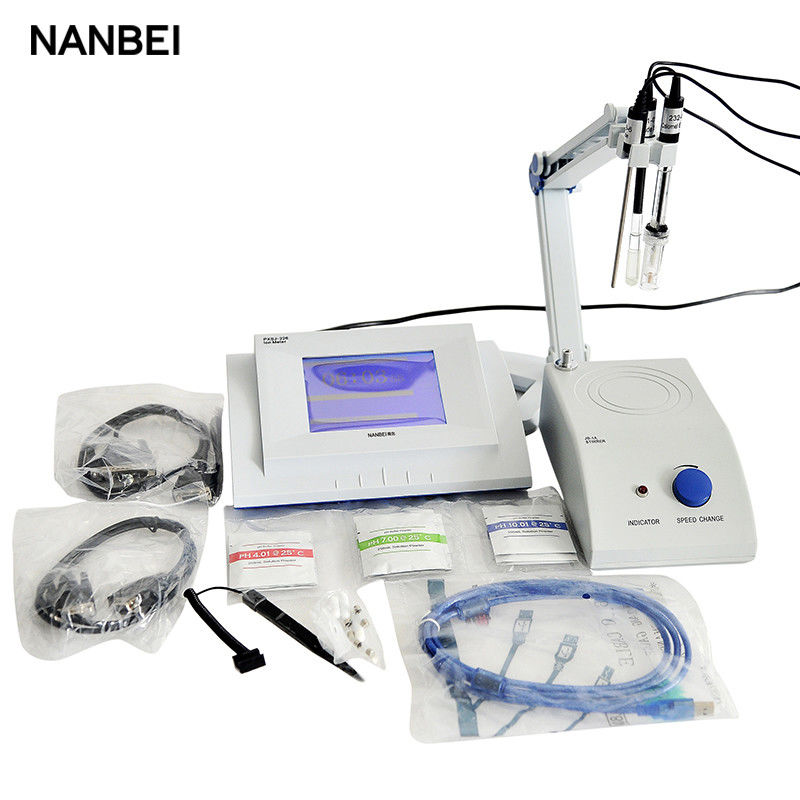

Standard Configuration | PF-1-01 Fluoride ISE; |
232-01 Reference Electrode; | |
T-820D ATC Probe; | |

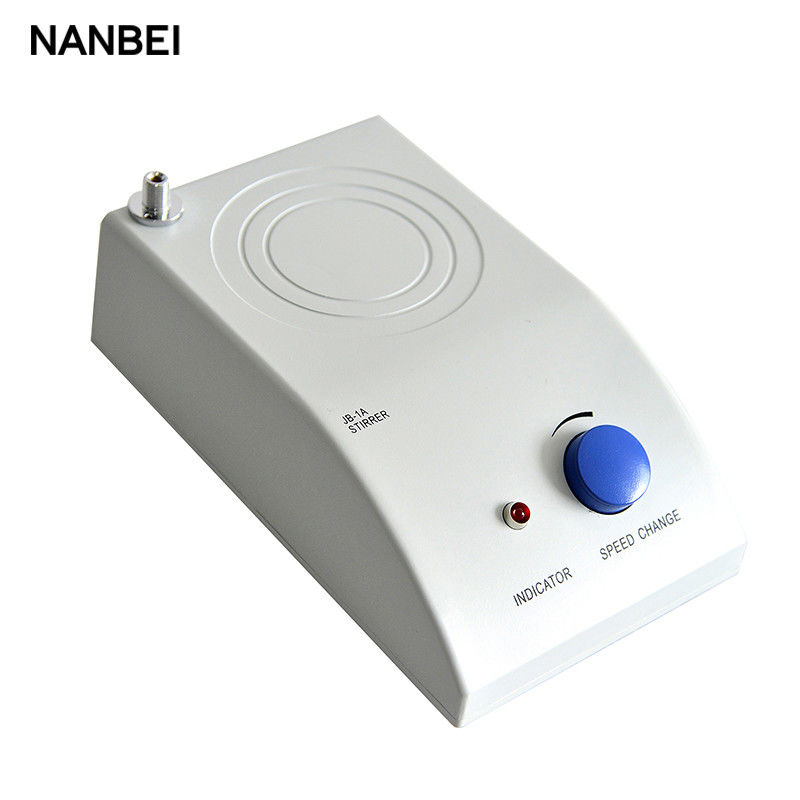

JB-1A Stirrer |
