Product Name: | Colorimeter, Portable Residual Chlorine Meter, Oil Moisture Analyzer, Portable Precision Turbidimeter, Online Cod | Power Supply: | 220VAC, 3.7V 4000mAh Rechargeable Battery, AC 220V ± 10%, Four AA Batteries, 50/60HZ |
---|---|---|---|
Weight: | 0.5kg, 50kg, 2kg, 3.5 Kg | Light Source: | Tungsten Halogen Lamp 6V, LED, 12W |
Measuring Range: | 50.1 200, 0-15000mg/L(COD), 0.00 - 50.0, 201 - 2000 | Display: | LCD Touch Digital Display, Backlit LCD, Large Touch Screen Display |
Output: | 4-20mA And 2 Relays, 3-way 4-20mA | Usage: | Automatic Testing Machine, Water Analysis |
High Light: |
dissolved oxygen analyzer,dissolved oxygen controller |

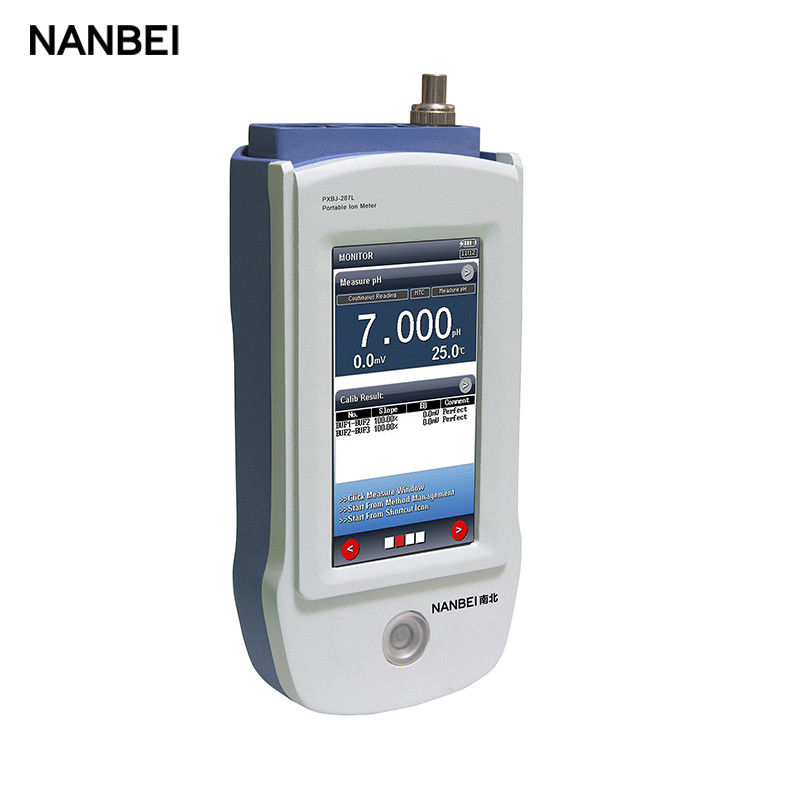

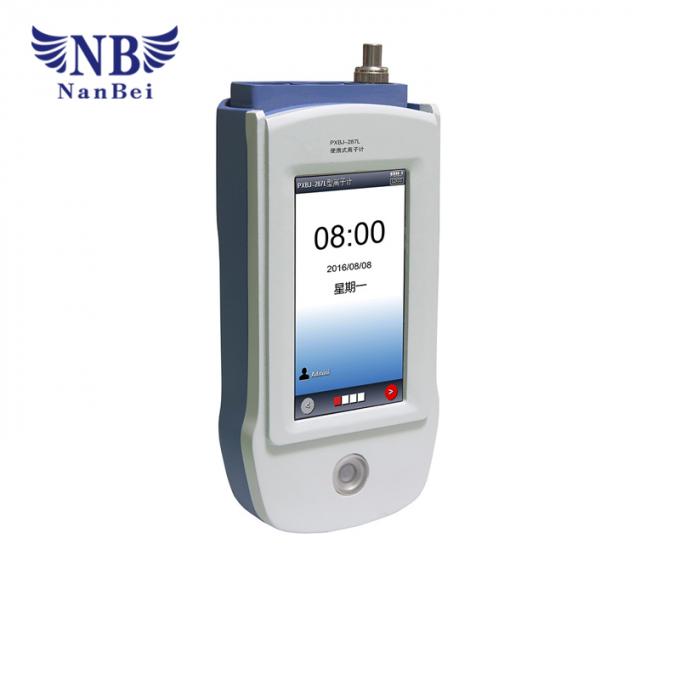

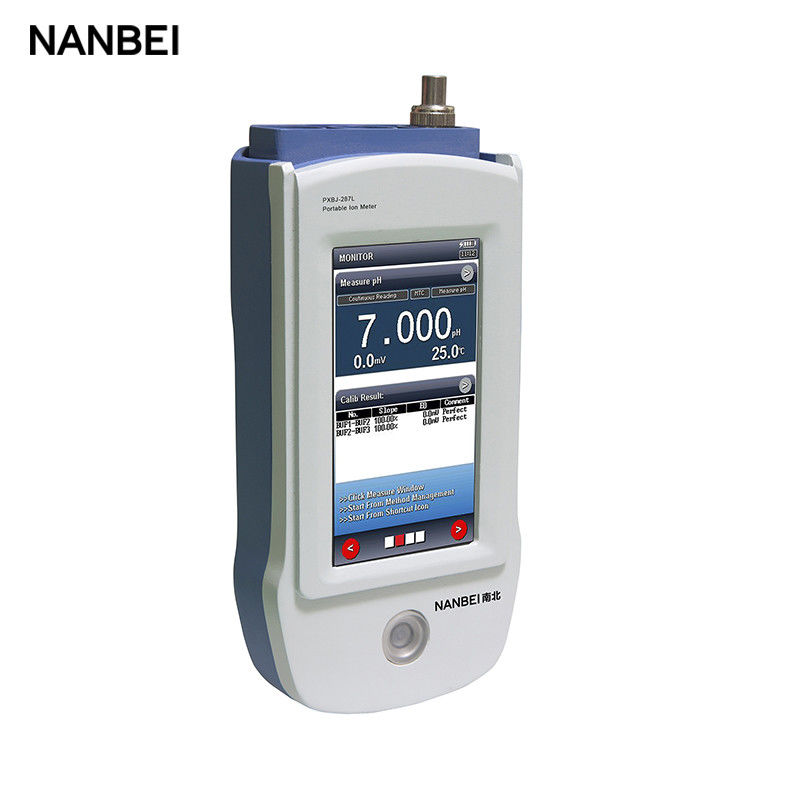

Portable Water Analysis Instrument PXSJ-287L Tungsten Halogen Lamp 6V
Brief introduction of ion meter
The ion meter is an electrochemical analyzer used to measure the ion concentration in a solution. Measurement of H + also belongs to the ion meter, we generally call its PH meter or acidity meter, the general people refer to the ion meter is measured in addition to H + other than the electrochemical instruments.
Features of NANBEI ion meter:
1. To support TFT touch screed with colour and navigation bar;
2. To support measurement Ion value:Ag+,Na+,K+,NH4+,CL-,F-,NO3-,BF4-,CN-,CU2+,Pb2+,Ca2+,etc
3. To support concentration unit switch: ug/L,mg/L,g/L,mol/L,mmol/L,PX etc
4. To support identification PH standard buffer;
5. To support storing 2000 measurement value with view function;
6. To meet GLP norm;
7. To support ID management;
8. To support USB and Firmware Upgrade function
9. Long Standby Time
Model | PXBJ-287L |
Parameters | pH /pX/mV(ORP)/RmV/Ion/℃-seven |
Range |
PH/pX:-2.000~20.000 mV: ±2000.00 Ion concentration: 1.000e-9~9.999e-9 Temp: -5.0~130℃ |
Accuracy |
pH/pX: ±0.001 mV: ±0.03% or ±0.1mV on concentration:±0.3% Temp:±0.1℃ |
Calibration | Up to 8 point |
Power | Li-on (DC 3.8V) |
