Model No.: | DDBJ-351L | Display: | LED |
---|---|---|---|
Type: | Conductivity Meter | Package Size: | 496*414*232mm; 5kg |
Certification: | ISO9001 | Portable: | Portable |
Meter Size: | 201*96*55mm; 0.3kg | ||
High Light: |
LED Portable Conductivity Meter,LED portable ph and conductivity meter,1000g/L portable ph and conductivity meter |

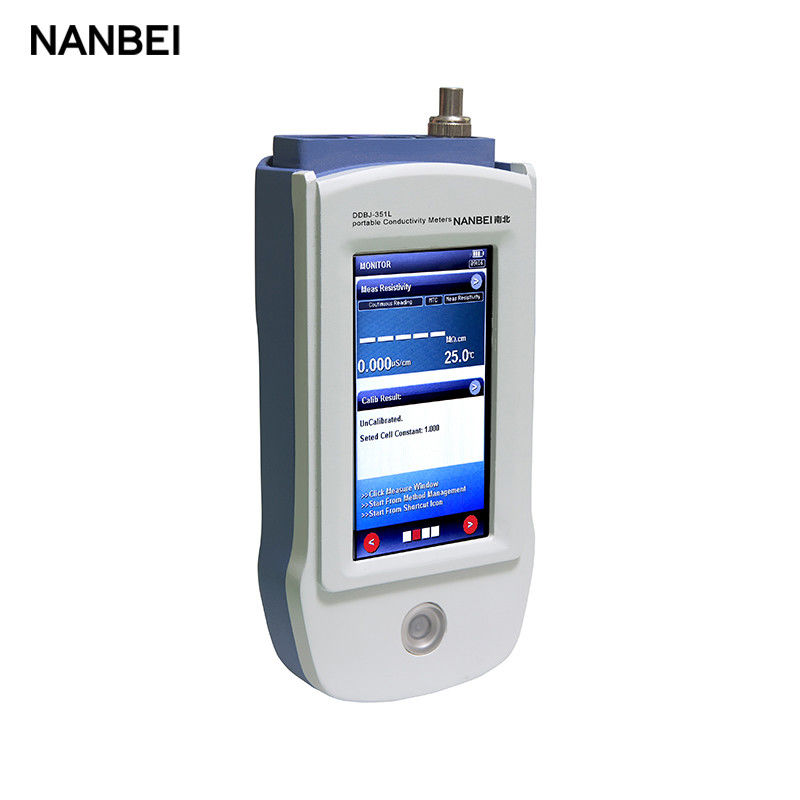

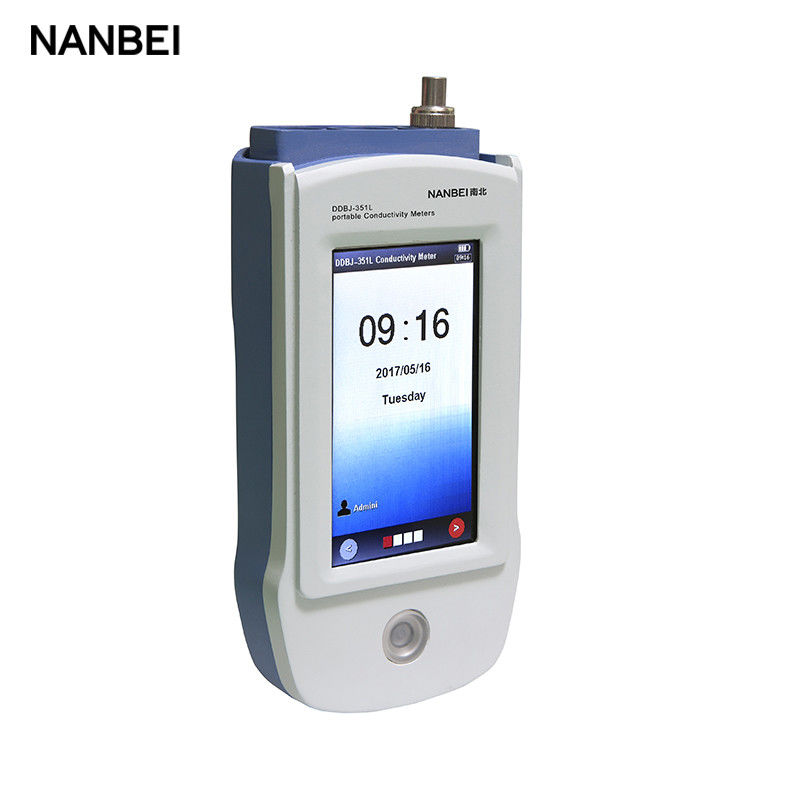

smart LED Portable Conductivity Meter
MEASUREMENT PARAMETERS:
Conductivity, Resistivity, TDS, Salinity, Temperature.
FEATURES:
4.3″ TFT colorful touchscreen and smart guide system.
Intelligent operation system provides features including user management, calibration management, Electrode management, method management, data management and etc.
1-5 points calibration automatically recognizes the standard solutions.
Settable parameters, including cell constant, reference temperature (5/10/15/18/20/ 25°C), temperature compensation coefficient and TDS factor.
Temperature compensation type (none, linear, pure water).
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Over 20 settable parameters, including date and time, number of calibration points, stability criteria, temperature unit, etc.
Data capacity of up to 2000 sets for each parameter (GLP-compliant).
Data management feature allows user search, review, compare and count the results.
Data can be transferred to PC or printer by USB communication interfaces.
Auto-power off feature effectively extends the battery usage time.
Reset feature automatically resumes all settings back to factory default options.
Standard Package:
Conductivity cell (K=1), ATC Probe, Carrying Case
Model | DDBJ-351L | |
Conductivity | Range | 0.000μS/cm~3000mS/cm |
Resolution | 0.001μS/cm | |
Accuracy | ±0.5% (FS) | |
Resistivity | Range | 5.00Ω.cm~100.0MΩ.cm |
Resolution | 0.01Ω·cm | |
Accuracy | ±0.5% (FS) | |
TDS | Range | 0.000 mg/L~1000g/L |
Resolution | 0.001mg/L | |
Accuracy | ±0.5% (FS) | |
Salinity | Range | (0.00~8.00)% |
Resolution | 0.01% | |
Accuracy | ±0.1% | |
Temperature | Range | (-5.0~130.0) ℃ |
Resolution | 0.1 ℃ | |
Accuracy | ±0.1 ℃ | |
General | Power Supply | Li-ion Battery (DC: 3.8V) |
Dimension (mm); Weight (kg) | 201*96*55; 0.3 |
