Temp Setting Range: | 0℃~100℃ 0℃~100℃ | Temp Control Range: | RT+5℃~100℃ RT.-20℃~100℃ |
---|---|---|---|
Time Range: | 1min ~ 99h59min/∞ 1min ~ 99h59min/∞ | Temp Accuracy: | ≤±0.3℃* ≤±0.3℃* |
Display Accuracy: | 0.1℃ 0.1℃ | Temp Uniformity: | ≤±0.3℃* ≤±0.3℃* |
Speed Range: | 200~1800rpm 200~1500rpm | Orbit: | 3mm 3mm |
High Light: |
lab shaker machine,shaker laboratory equipment |

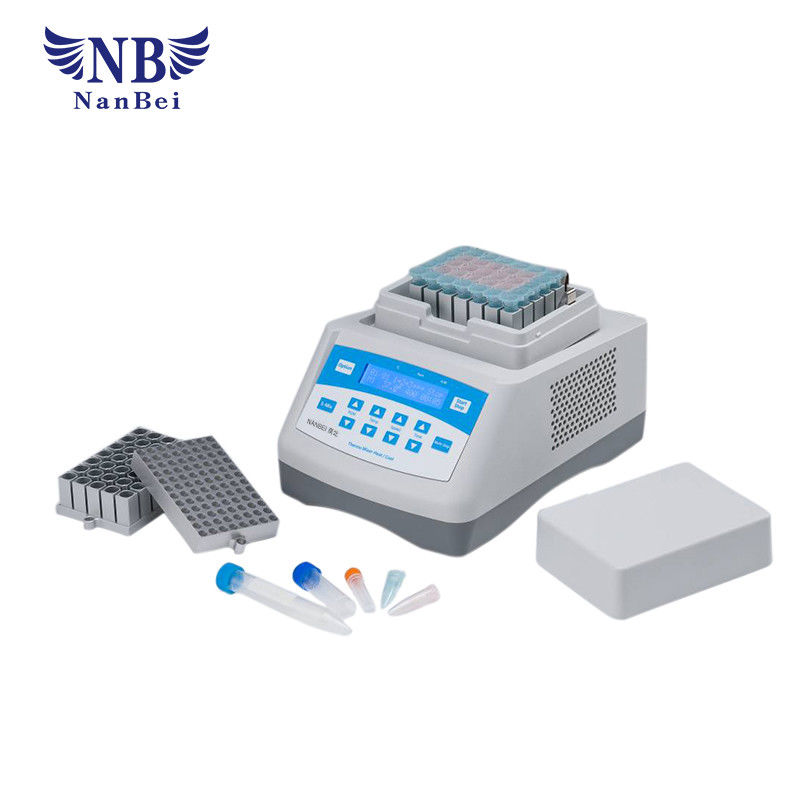

Thermo Shaker TS100 TSC10 1min ~ 99h59min/∞ Time Range CE Certification
TS100/TCS10 Thermo Shaker is a temperature controlled shaker, which is useful for a variety of molecular biology applications. Speed, time and temperature settings are continuously visible on the LCD, simultaneously showing both actual and selected values. Integral over-temperature control ensures long time, safety and sample integrity.
Features:
LCD display. It is easy to setup and use.
Reliable design with inner extra temperature protection.
Each device is equipped with lifter that is easy to replace different blocks.
Digital accuracy and convenience.
Precision wells for uniform thermal transfer.
Assorted blocks for a wide variety of tube sizes.
Brushless DC Motor: noiseless long service life maintenance-free.
Conforms to CE safety standard.
Accurately control and display time, temperature and speed.
12-month warranty.
Applications:
Maintaining 14°C for ligation reactions.(TCS10)
Maintaining 17°C for storing oocytes.(TCS10)
Storing samples at ice bucket temperatures.
Storing enzymes or DNA libraries at your work station.
Transporting samples from the field at exactly the right temperature.
Heating samples in the field.
Enzyme reactions and deactivations.
PCR sample preparation.
Model | TS100 | TCS10 |
Temp setting range | 0℃~100℃ | 0℃~100℃ |
Temp control range | RT+5℃~100℃ | RT.-20℃~100℃ |
Time range | 1min ~ 99h59min/∞ | 1min ~ 99h59min/∞ |
Temp accuracy | ≤±0.3℃* | ≤±0.3℃* |
Display accuracy | 0.1℃ | 0.1℃ |
Temp uniformity | ≤±0.3℃* | ≤±0.3℃* |
Speed range | 200~1800rpm | 200~1500rpm |
Orbit | 3mm | 3mm |
Heating time | ≤12min(from 25℃ to 100℃)* | ≤15min(from 25℃ to 100℃)* |
Cooling time1 | ≤10min(from 100℃ to 25℃)* | |
Cooling time2 | ≤20min(from RT. to RT.-20℃)* | |
Multi point running | Yes(Max 5points) | Yes(Max 5points) |
Multi cycle |
Yes(Max 99times) ) |
Yes(Max 99times) |
Auto heating | Yes | Yes |
Auto running | Yes | Yes |
Auto resume to run | Yes | Yes |
Storage at 4℃ | Yes | |
Power supply | 150W | 150W |
Voltage | AC220V or AC110V/50-60Hz | AC110V~220V/50-60Hz |
Fuse | 250V 3A Ф5×20 | 250V 3A Ф5×20 |
Dimension(mm) | 260x195x150 | 260x195x150 |
Weight | 7.5kg | 7.0kg |
Type | Capacity | Temp range | Max Speed (TS100) | Max Speed (TCS10) |
MD30 | 96x0.2ml | 0℃~100℃ | 1800rpm | 1500rpm |
MD31 | 54x0.5ml | 0℃~100℃ | 1800rpm | 1500rpm |
MD32 | 35x1.5ml | 0℃~100℃ | 1800rpm | 1500rpm |
MD33 | 35x2.0ml | 0℃~100℃ | 1800rpm | 1500rpm |
MD34 | 20x1.5ml+15x0.5ml | 0℃~100℃ | 1800rpm | 1500rpm |
MD35 | 96x0.2ml | 0℃~100℃ | 1800rpm | 1500rpm |
MD36 | 24x5ml | 0℃~100℃ | 1000rpm | 1000rpm |
MD37 | 15x10ml | 0℃~100℃ | 1000rpm | 1000rpm |
MD38 | 12x15ml | 0℃~100℃ | 1000rpm | 800rpm |
MD39 | 6x50ml | 0℃~100℃ | 800rpm | 800rpm |
